EAX-Q87R User’s Manual
18 EAX-Q87R User’s Manual
USB BACK PANEL USB3.0 Connector x 4
DP1 Display Port
KBMS1 PS/2 Keyboard & Mouse Connector
EATXPWR1 24pin ATX Power Connector
ATX12V1 12V ATX Power Connector
COM1 Serial port 1 Connector
COM2 Serial port 2 Connector
JSETCOM1 Set COM2 RS-232/422/485 Mode
COM3~6 Serial Port 3~6 Connectors
LPT1 LPT Port Connector
F_PANEL1 Front Panel Connector
CPU_FAN1 CPU Fan Connector
SYS_FAN1 System Fan Connector
CHA_FAN1 Fan Connector
SATA1~6 Serial ATA Connector
USB56/78/910/1112 Front USB Header
USB13 USB connector
FPAUD1 Front Panel Audio Connector
JAMP1 Amplifier Connector
JDIO1 Digital I/O Connector
PCI1~4 PCI slot
PCIEX16/4_1/1_1 PCIe Connector
DIMMA/B DDR3 LONG DIMM Socket
SPI1 SPI Connector
DVI DVID Video port

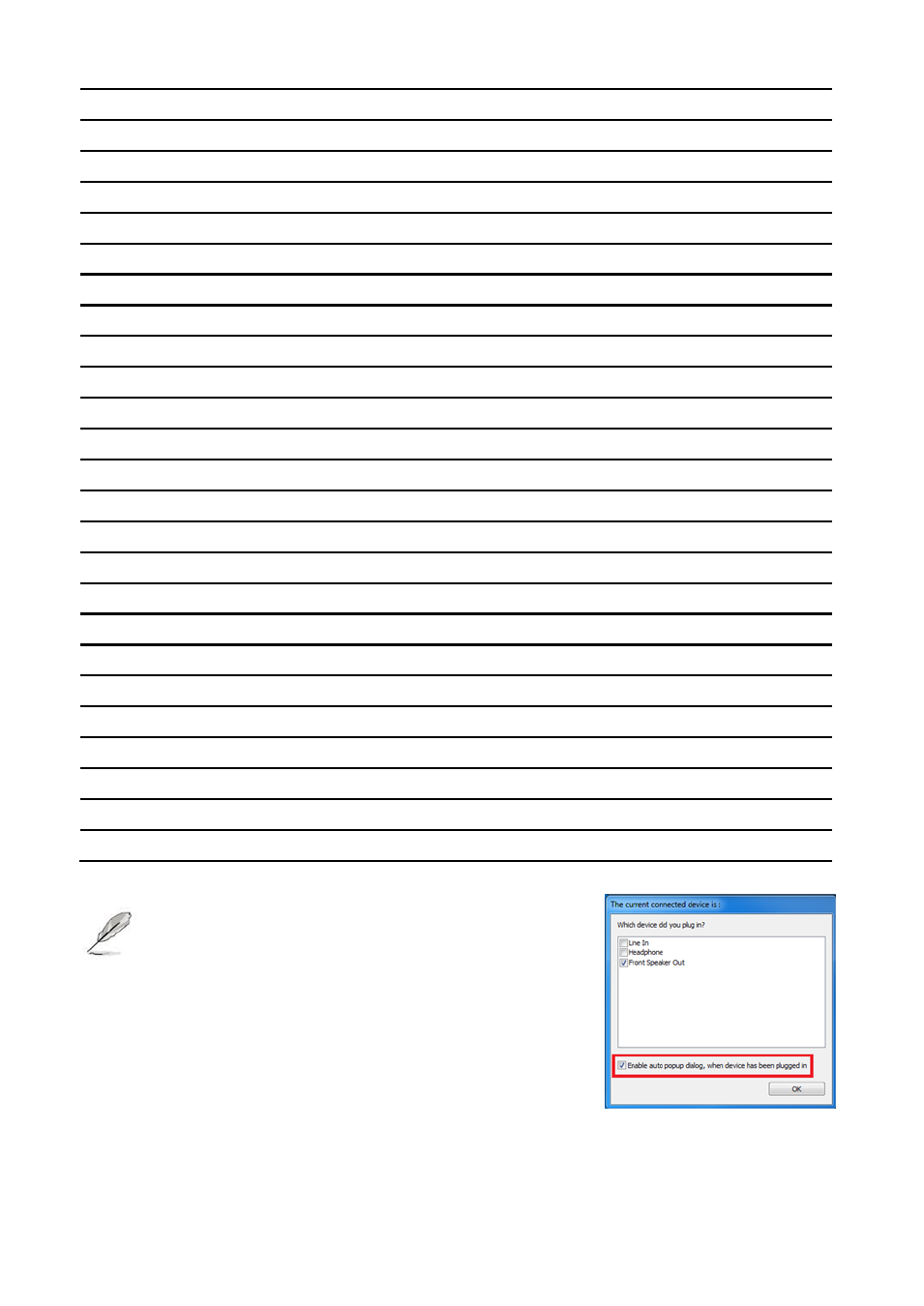

The on-screen message alerting you about
headphones being connected to the computer.
The Realtek audio software features an automatic
jack sensing option to let you know when
something has been inserted into an audio port.
