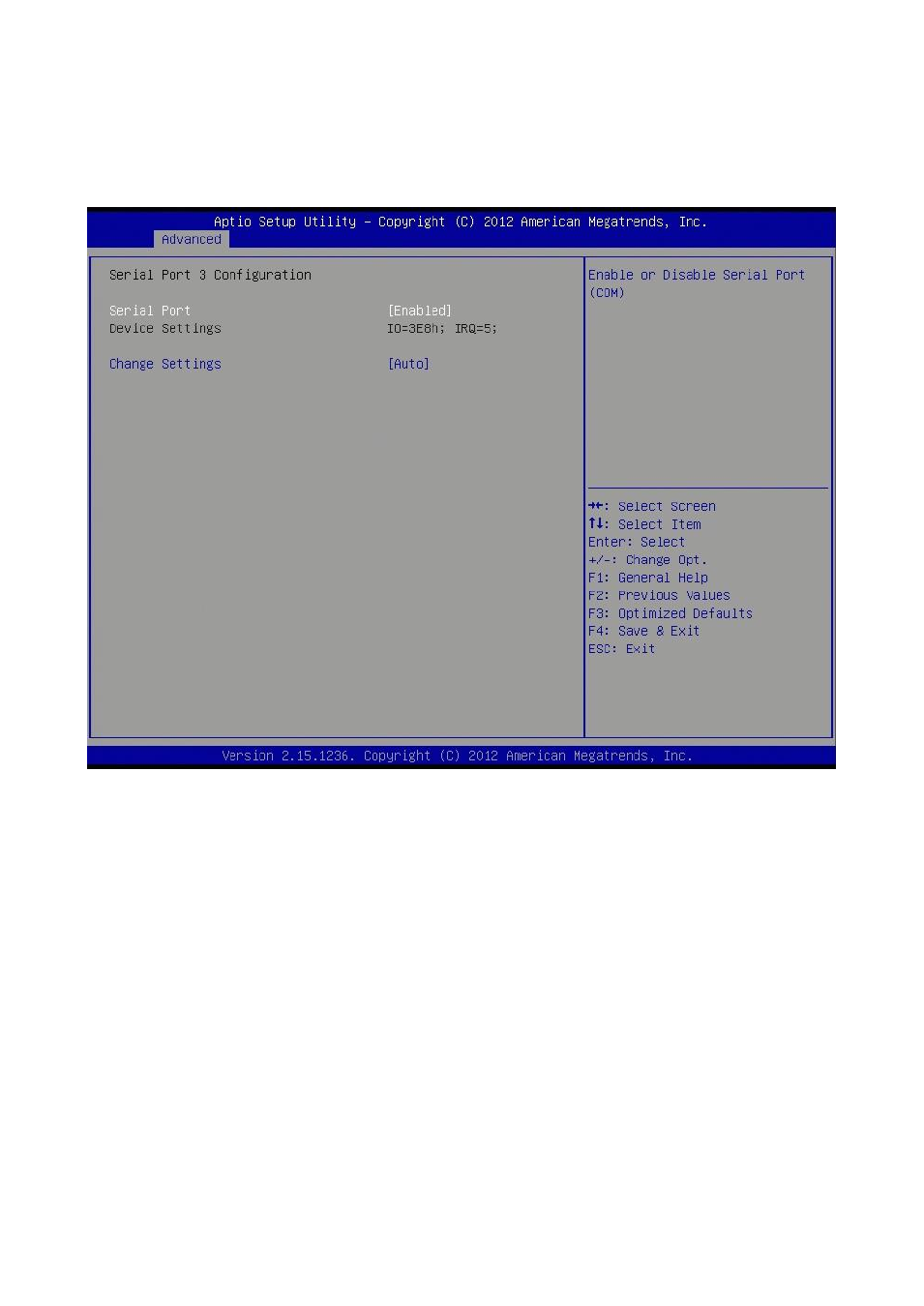

3.4.2.8.3 Serial Port 3 configuration
Set Parameters of Serial Port 3
Serial Port 3 Configuration
 Serial Port [Enable]
Enable or Disable Serial Port.
Configuration options: [Disabled] [Enabled]
 Device Setting [IO=3E8h; IRQ=5]
 Change Setting[Auto]
Select an optimal setting for Super IO device.
Configuration options: [Auto] [IO=3E8h; IRQ=5] [IO=3F8h; IRQ=5, 10] [IO=2F8h; IRQ=5, 10]
[IO=3E8h; IRQ=5, 10] [IO=2E8h; IRQ=5, 10]
