Item Options Description
Legacy USB support
Enabled[Default]
Disabled
Auto
Enables Legacy USB support.
AUTO disables legacy support if no USB devices are
connected. DISABLE will keep USB devices
available only for EFI applications.
ECHI Hand-off
Enabled
Disabled[Default]
This is a workaround for OSes without EHCI hand-off
support. The EHCI ownership change should be
claimed by EHCI driver.
USB transfer time-out
1sec / 5sec
10sec /
20sec[Default]
The time-out value for Control, Bulk, and Interrupt
transfers.
Device reset time-out
10sec /
20sec[Default]
30sec / 40sec
USB mass storage device Start Unit command
time-out.
Device power-up delay
Auto[Default]
Manual
Maximum time the device will take before it properly
reports itself to the Host Controller.
“Auto” uses
default value: for a Root port it is 100ms, for a Hub
port the delay is taken from Hub descriptor.
Generic STORAGE DEVICE
9407
Auto
Floppy
Forced FDD
Hard Disk
CD-ROM
Mass storage device emulation type. ‘AUTO’
enumerates devices less than 530MB as floppies.
Forced FDD option can be used to force HDD
formatted drive to boot as FDD (e.g. ZIP drive).

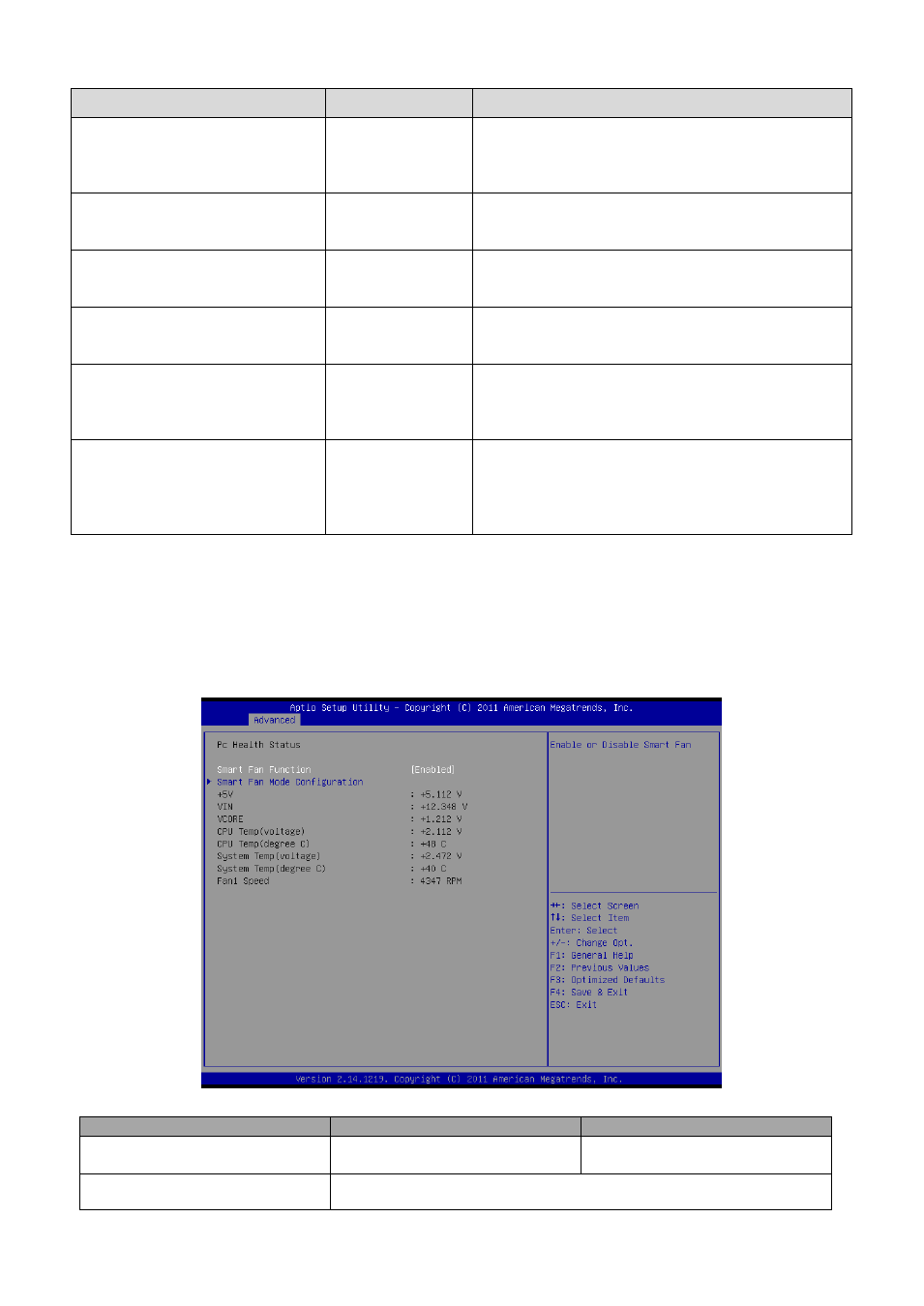

3.6.2.9 H/W Monitor
The H/W Monitor shows the operating temperature, fan speeds and system voltages.
Item Option Description
Smart Fan Function
Enabled,
Disabled[Default]
Enables or Disables Smart Fan
Smart Fan Mode Configuration Smart Fan Mode Select
