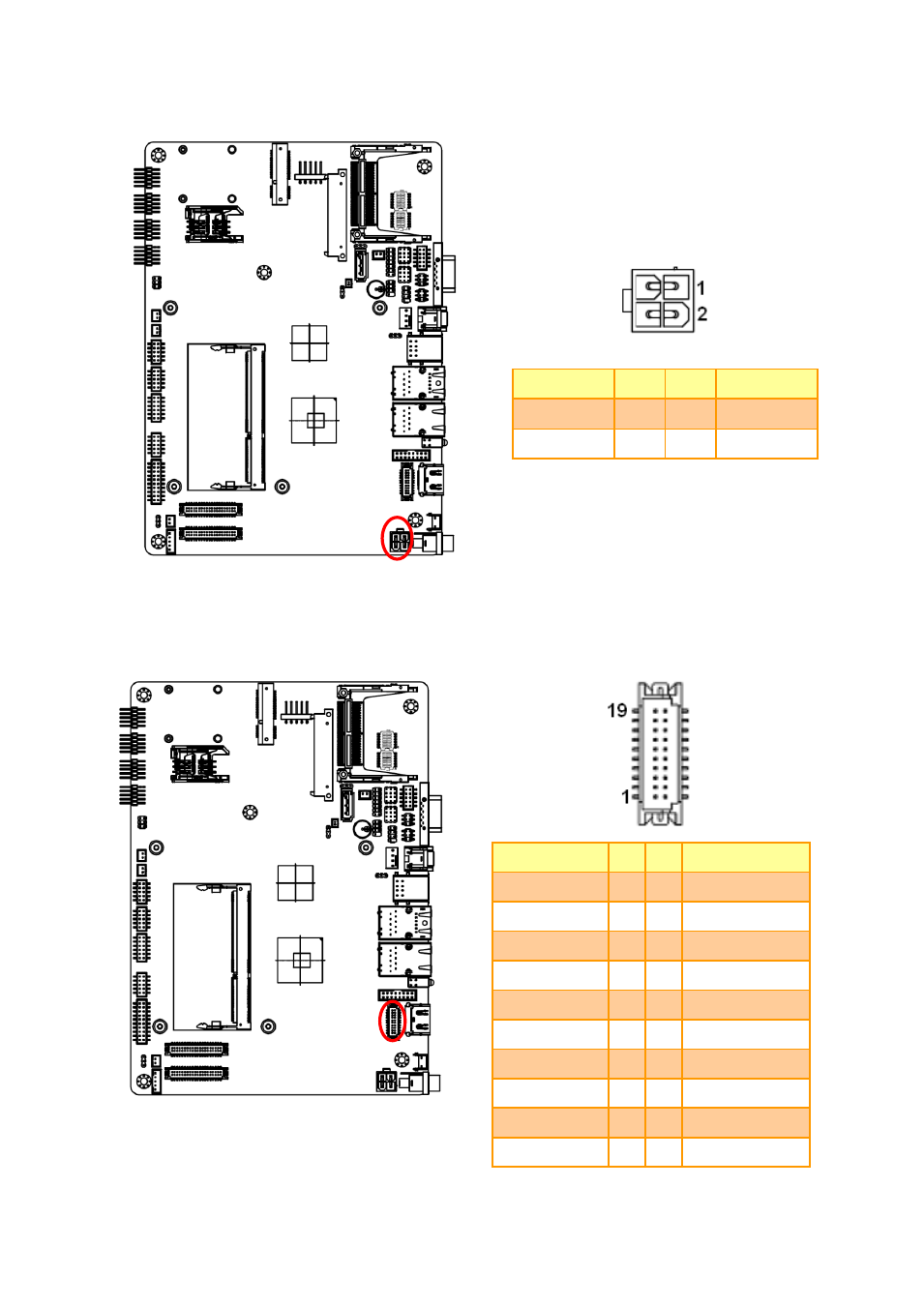

2.3.10

Power connector (PWR2)

Signal

PIN

PIN

Signal

VIN

3

1

GND

VIN

4

2

GND

2.3.11

DVI connector (DVI1)

Signal

PIN PIN

Signal

DVI_TXP2

19

20

DVI_CLK_P

DVI_TXN2

17

18

DVI_CLK_N

NC

15

16

GND

NC

13

14

HDMI_SCLK

DVI_TXP1

11

12

HDMI_SDATA

DVI_TXN1

9

10

HDMI_HPD

NC

7

8

NC

NC

5

6

NC

DVI_TXP0

3

4

GND

DVI_TXN0

1

2

+V5_CRT_HDMI
