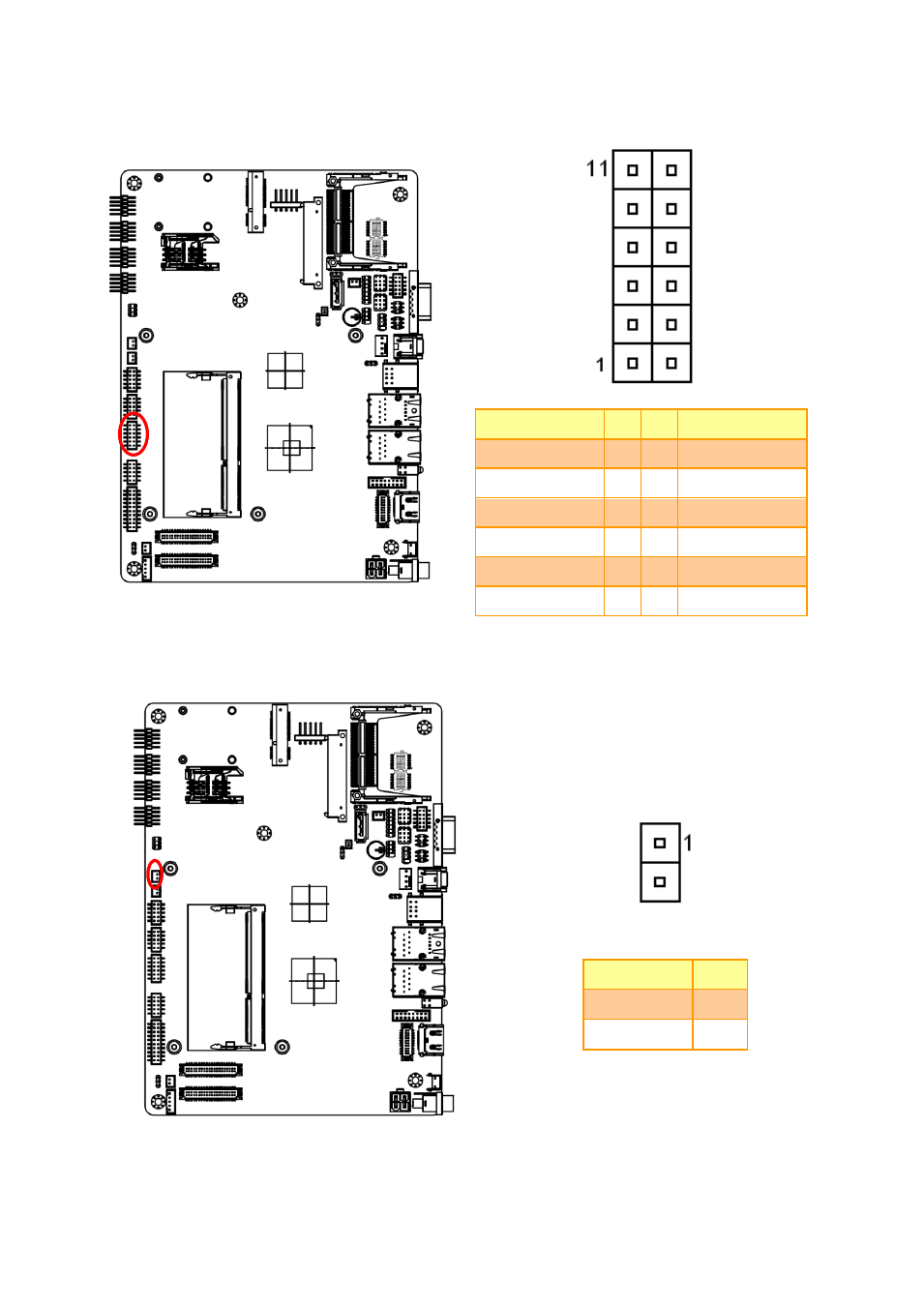

Audio connector (AUD1)

Signal

PIN PIN

Signal

GND

11

12

MIC1_JD

LINE1_JD

9

10

FRONT_JD

MIC_LIN

7

8

MIC_RIN

LINE1_LIN

5

6

LINE1-RIN

GND

3

4

GND

LINEOUT_L

1

2

LINEOUT_R

2.3.26

AMPLIFIER_R1

(AMP_R1)

Signal

PIN

AMP_ROUT+

1

AMP_ROUT-

2
