Lcd inverter connector (jbkl1) – Avalue EBM-CDV User Manual
Page 24
EBM-CDV User
’s Manual
24 EBM-CDV User
’s Manual
2.3.12

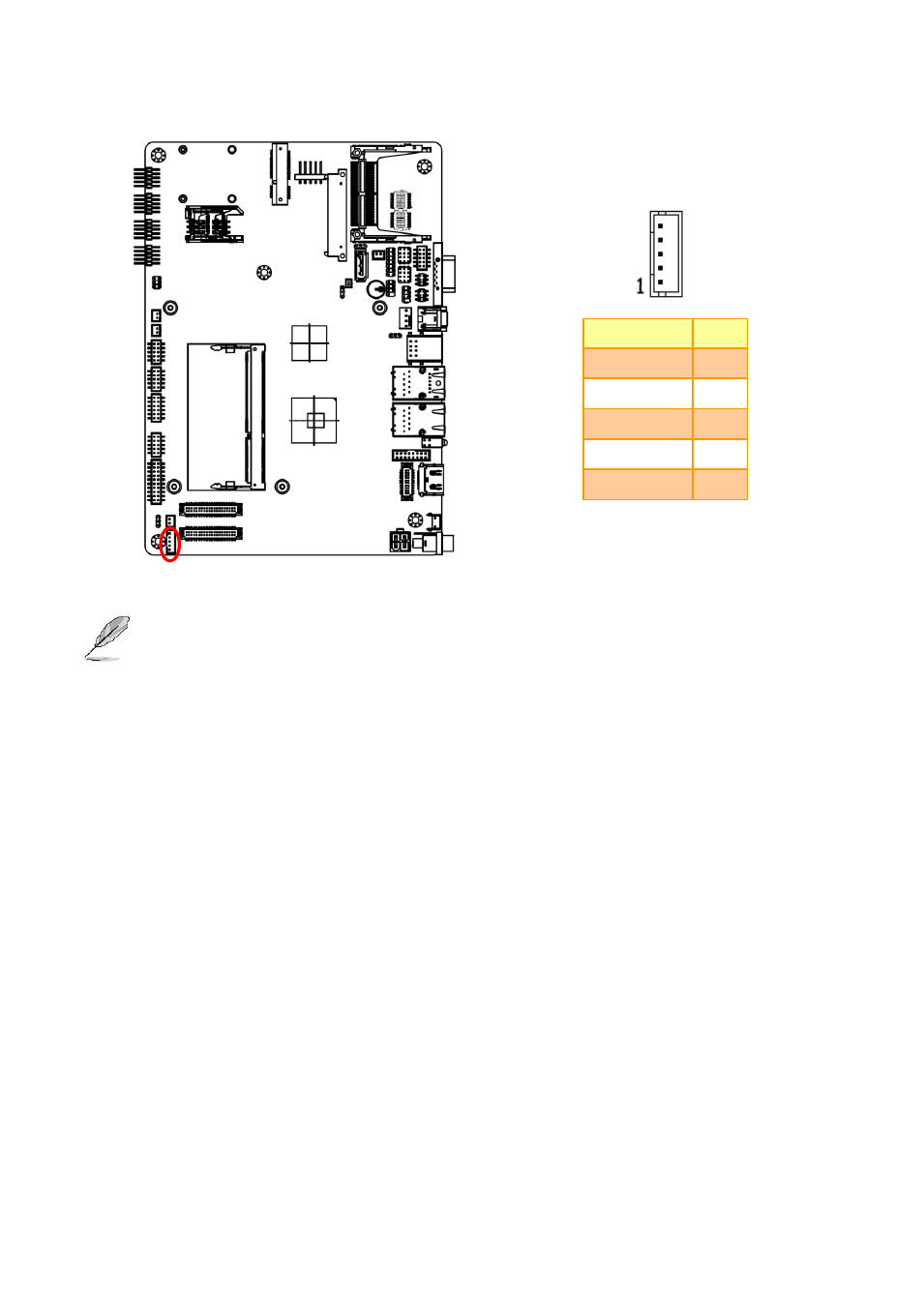

LCD Inverter connector (JBKL1)
Signal
PIN
+5V
5
VBRIGHT
4
BKLEN
3
GND
2
+12V
1
Note:
For inverters with adjustable Backlight function, it is possible to control the LCD brightness through
the VR signal controlled by JVR1. Please see the JVR1 section for detailed circuitry information.
