User ’s Manual
EBM-QM87U User’s Manual 31

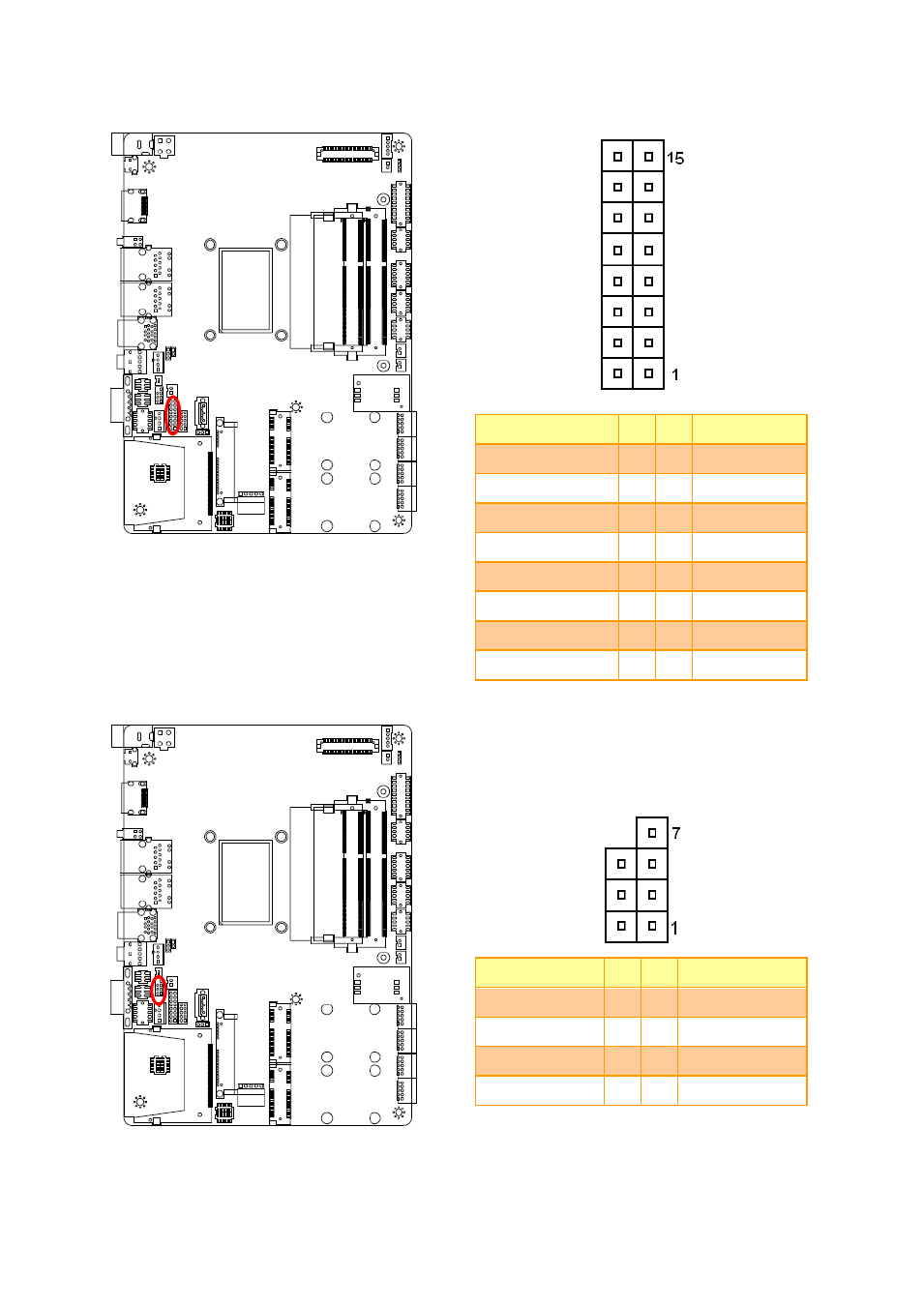

2.3.25 LPC connector (JLPC)
Signal PIN PIN Signal
L80LLAT 16 15 L80HLAT
GND 14 13 +5VSB
GND 12 11 +5V
GND 10 9 SERIRQ
CLK_PCI_JLPC 8 7 LPC_AD3
LPC_LFRAME# 6 5 LPC_AD2
PLTRST# 4 3 LPC_AD1
+V3P3S 2 1 LPC_AD0
2.3.26 SPI connector (JSPI)
Signal PIN PIN Signal
7 HOLD#
SPI_SI 6 5 SPI_SO
SPI_CLK 4 3 SPI_CS0#
GND 2 1 +V3P3A_SPI
