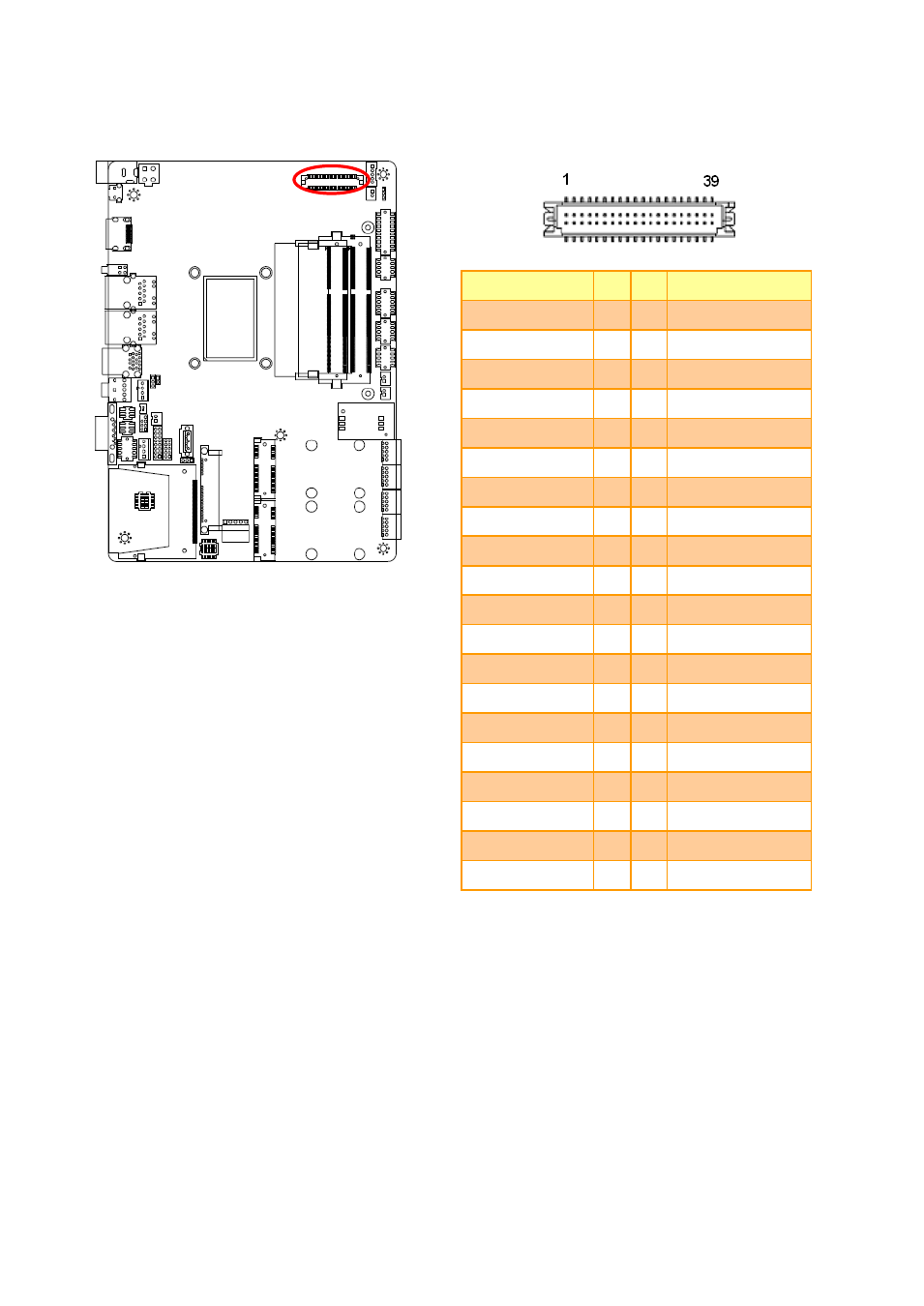

2.3.18 LVDS connector (JLVDS)
Signal PIN PIN Signal
+3V 1 2 +5V
+3V 3 4 +5V
LVDS_DDC_CLK 5 6 LVDS_DDC_DATA
GND 7 8 GND
LVDS_DATA1_P 9 10 LVDS_DATA0_P
LVDS_DATA1_N 11 12 LVDS_DATA0_N
GND 13 14 GND
LVDS_DATA3_P 15 16 LVDS_DATA2_P
LVDS_DATA3_N 17 18 LVDS_DATA2_N
GND 19 20 GND
LVDS_DATA5_P 21 22 LVDS_DATA4_P
LVDS_DATA5_N 23 24 LVDS_DATA4_N
GND 25 26 GND
LVDS_DATA7_P 27 28 LVDS_DATA6_P
LVDS_DATA7_N 29 30 LVDS_DATA6_N
GND 31 32 GND
LVDS_CLK2_P 33 34 LVDS_CLK1_P
LVDS_ CLK2_N 35 36 LVDS_ CLK1_N
GND 37 38 GND
+12V 39 40 +12V
