2.3.19

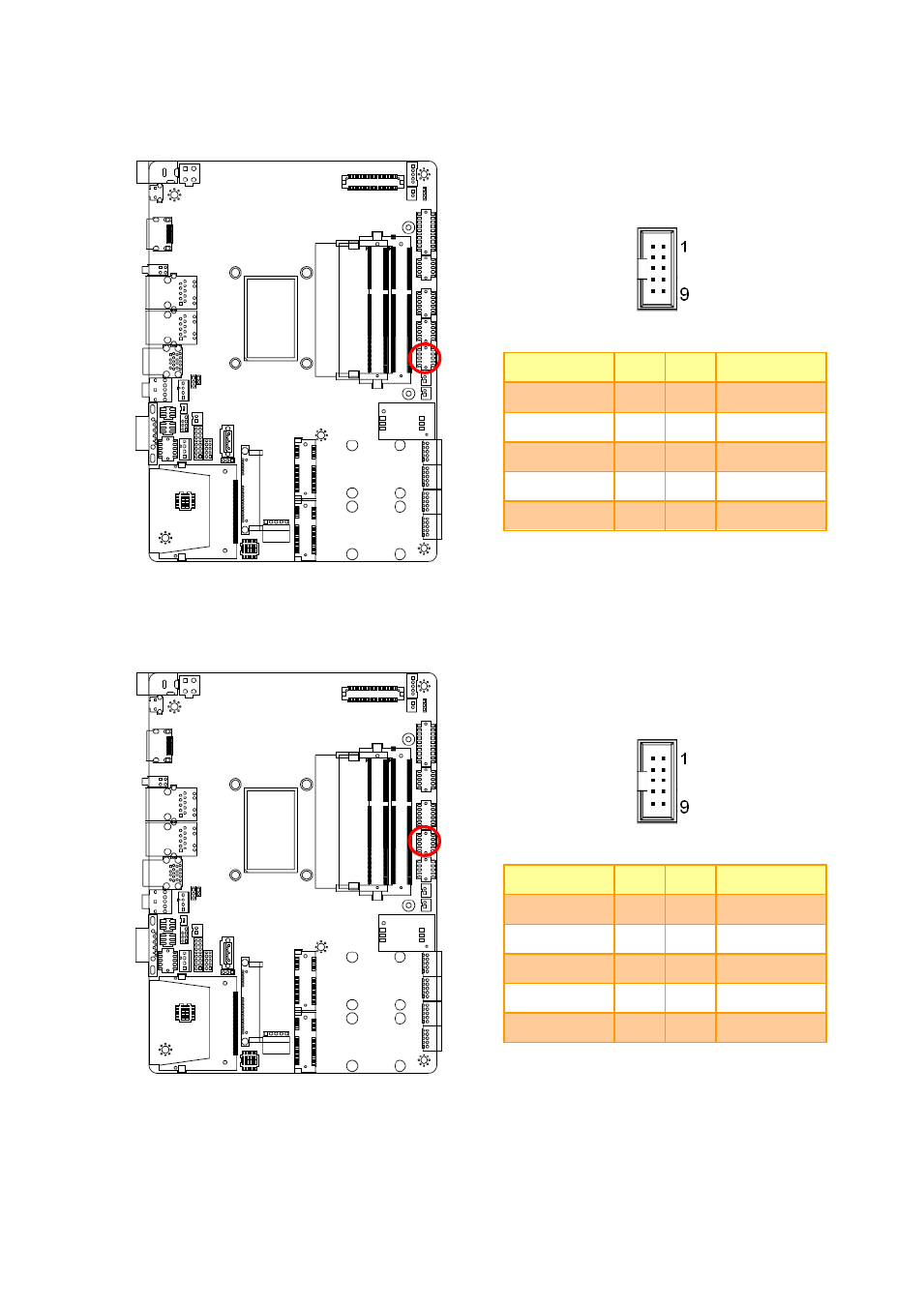

USB connector 1 (JUSB1)
Signal
PIN
PIN
Signal
+VCC_USB23
2
1
+VCC_USB23
USB_DN2
4
3
USB_DN3
USB_DP2
6
5
USB_DP3
GND
8
7
GND
GND
10
9
GND
2.3.20
USB connector 2 (JUSB2)
Signal
PIN
PIN
Signal
+VCC_USB45
2
1
+VCC_USB45
USB_DN4
4
3
USB_DN5
USB_DP4
6
5
USB_DP5
GND
8
7
GND
GND
10
9
GND
