EBM-QM87U User’s Manual 25

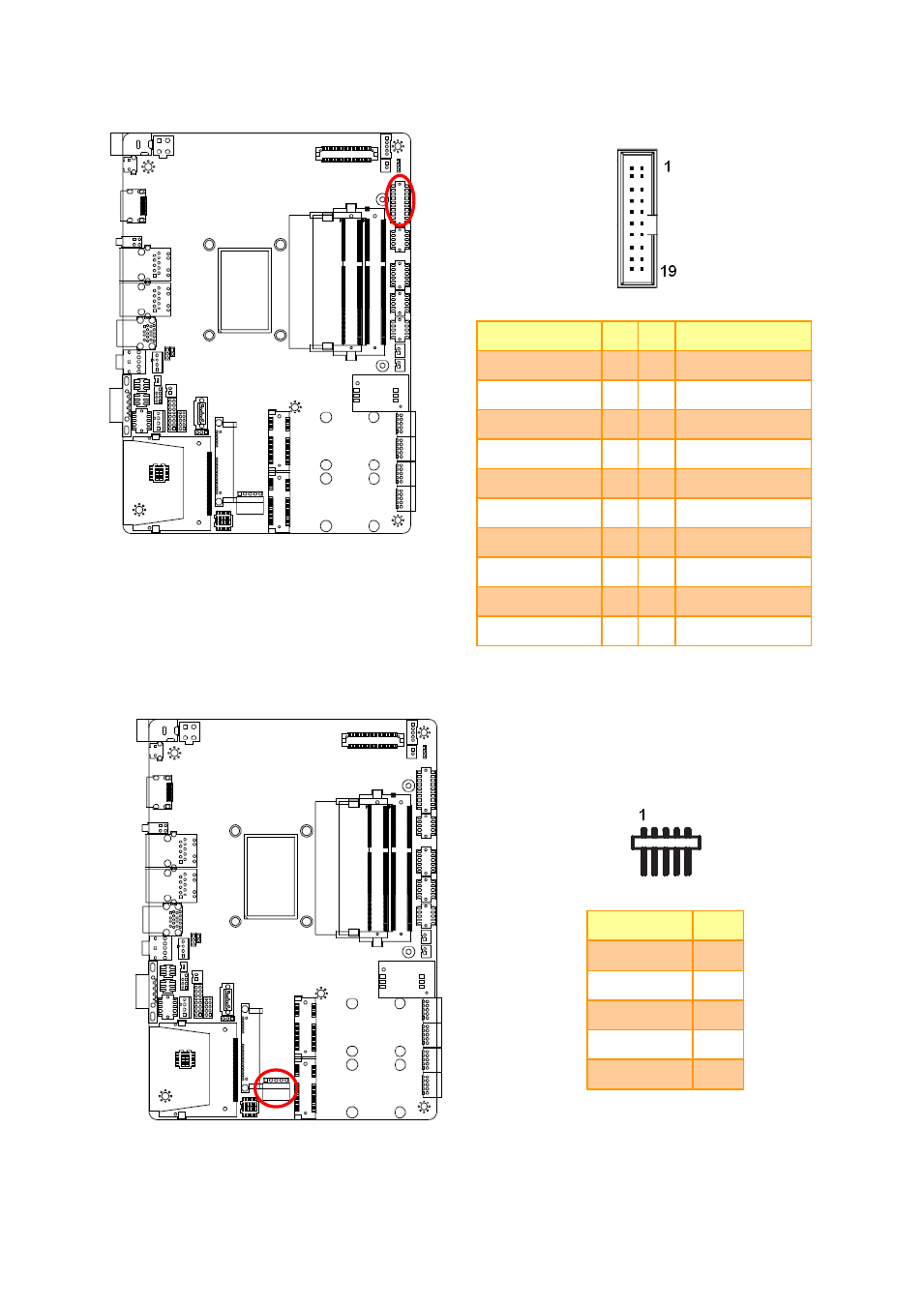

2.3.14 General purpose I/O connector (JDIO)
Signal PIN PIN Signal
DI0 2 1 DO0
DI1 4 3 DO1
DI2 6 5 DO2
DI3 8 7 DO3
DI4 10 9 DO4
DI5 12 11 DO5
DI6 14 13 DO6
DI7 16 15 DO7
SMB_CLK_VCC 18 17 SMB_DATA_VCC
GND 20 19 +5V
2.3.15 Touch panel connector (JTOUCH)
Signal PIN
THX- 1
THX+ 2
THPROBE_R 3
THY+ 4
THY- 5
