UM-UV-621-M30-Q215V1 www.austin-hughes.com
Front view
Rear view
Rear case
LCD panel
6mm aluminum front bazel
Audio speaker, pair
LCD membrane
Wall-mount bracket
Remote sensor
1
2
3
4
5
6
Top view
7
7
5

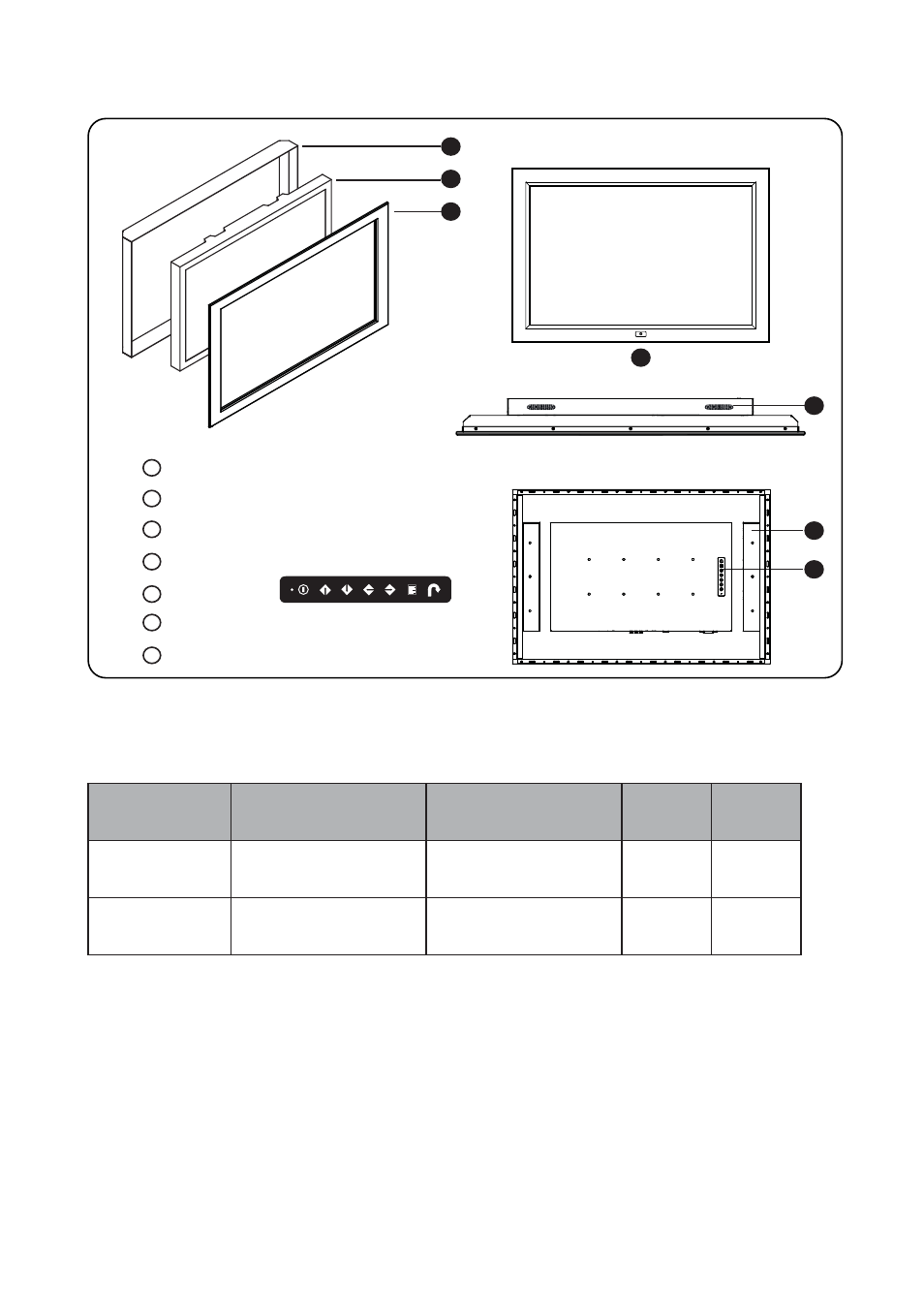

< 1.2 > Structure Diagram - AP / NAP-M30
AP-M30
NAP-M30
P.2
4
1
2
3
6
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
AP-M30
743.9 x 77.5 x 503.4 mm
29.3 x 3.1 x 19.8 inch
To be confi rmed
17.9 kg
39.4 lbs
22.8 kg
50.2 lbs
NAP-M30
743.9 x 77.5 x 503.4 mm
29.3 x 3.1 x 19.8 inch
To be confi rmed
21.9 kg
48.2 lbs
26.8 kg
59 lbs
