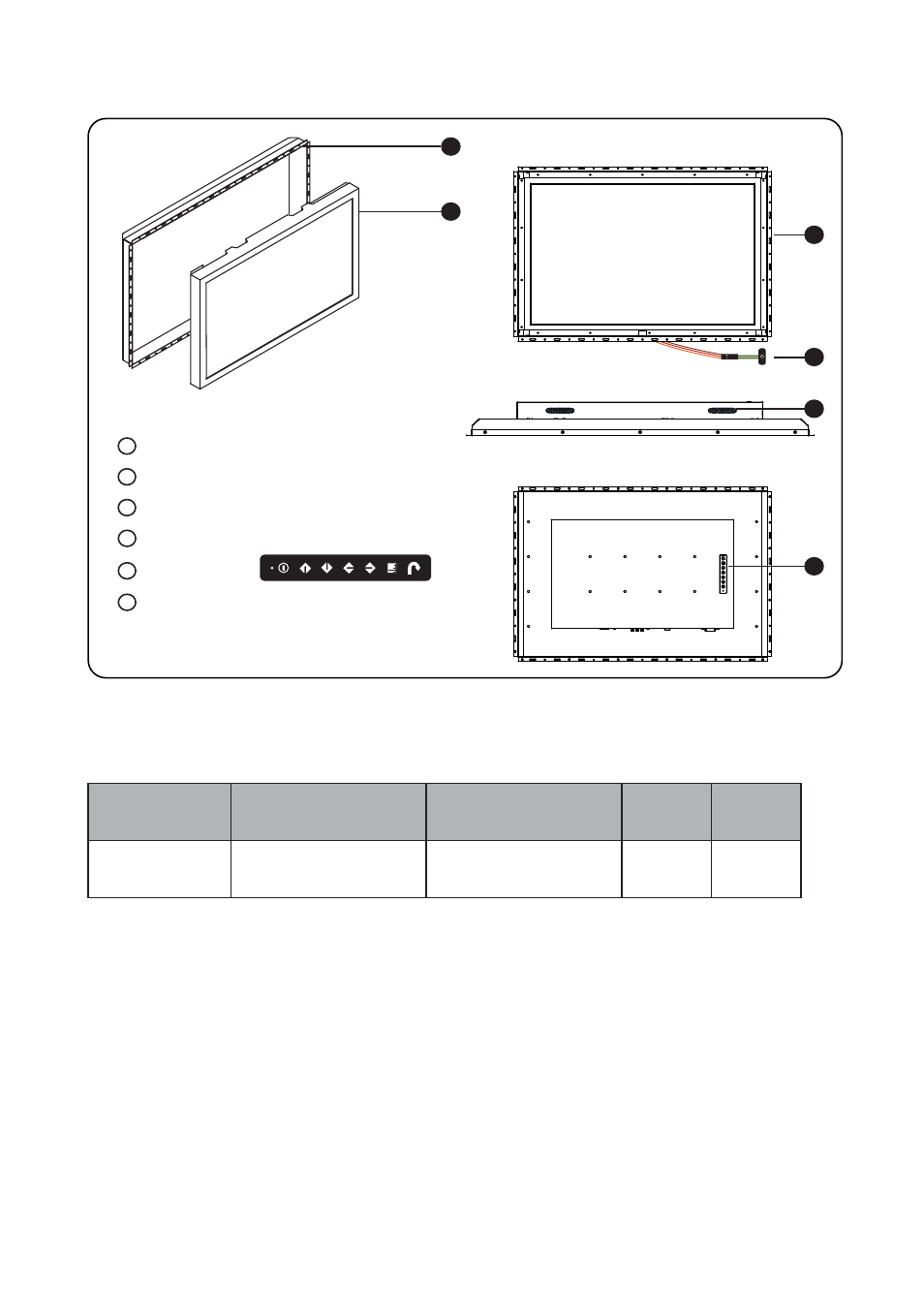

< 2.2 > Structure Diagram - OP-M30
Front view
Rear view
Rear case
LCD panel
Universal open frame mounting
Audio speaker, pair
LCD membrane
Extended remote sensor membrane cable
( 66cm from AD board to sensor end )
1
2
3
4
5
Top view
6
6
OP-M30
P.7
4
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
OP-M30
740.9 x 71.5 x 500.4 mm
29.2 x 2.8 x 19.7 inch
To be confi rmed
11.9 kg
26.2 lbs
14.8 kg
32.6 lbs
1
2
5
3
30” Ultra Widescreen LCD Display
