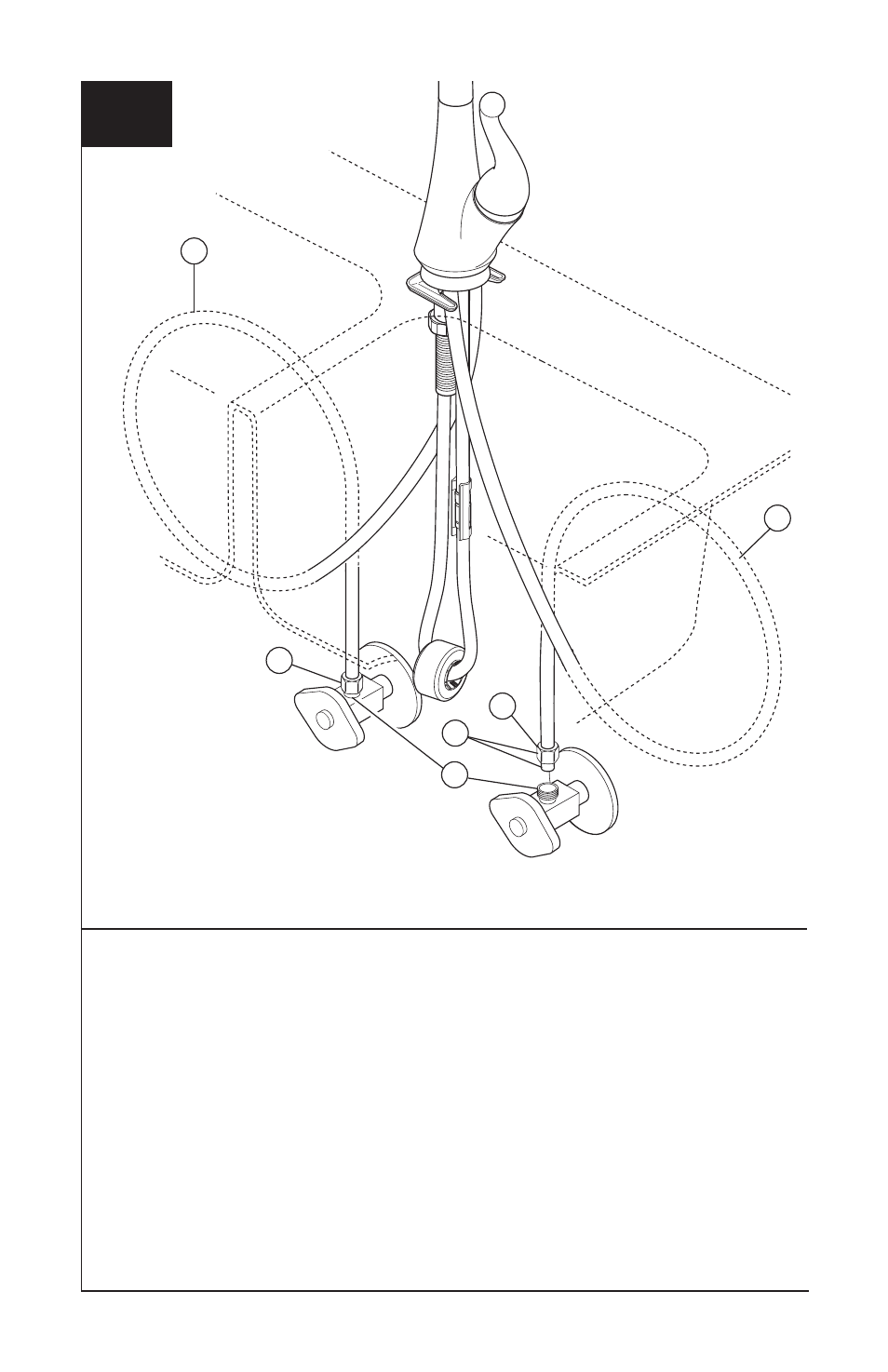

Ensure all fittings and end connections are
free of debris. Faucet fittings (1) are 3/8"
compression, with ends colored red for
hot and blue for cold. Loop tubing (2) if it
is too long.
Note: Recommended tubing
minimum bend diameter is 8". Secure
metal nut (3) on faucet tube to supply valve
Water Line Connections
1
3
4
4A
2
2
connection (4) and hand tighten, then
tighten one additional turn with wrench.
DO NOT OVERTIGHTEN. Repeat for
other tube.
WARNING: Do not use pipe
dope or other sealants on water
line connections.
