Faucet installation with 10" escutcheon, Optional – Delta 16968-DST Series User Manual
Page 5
1
2
3
2
4
A.

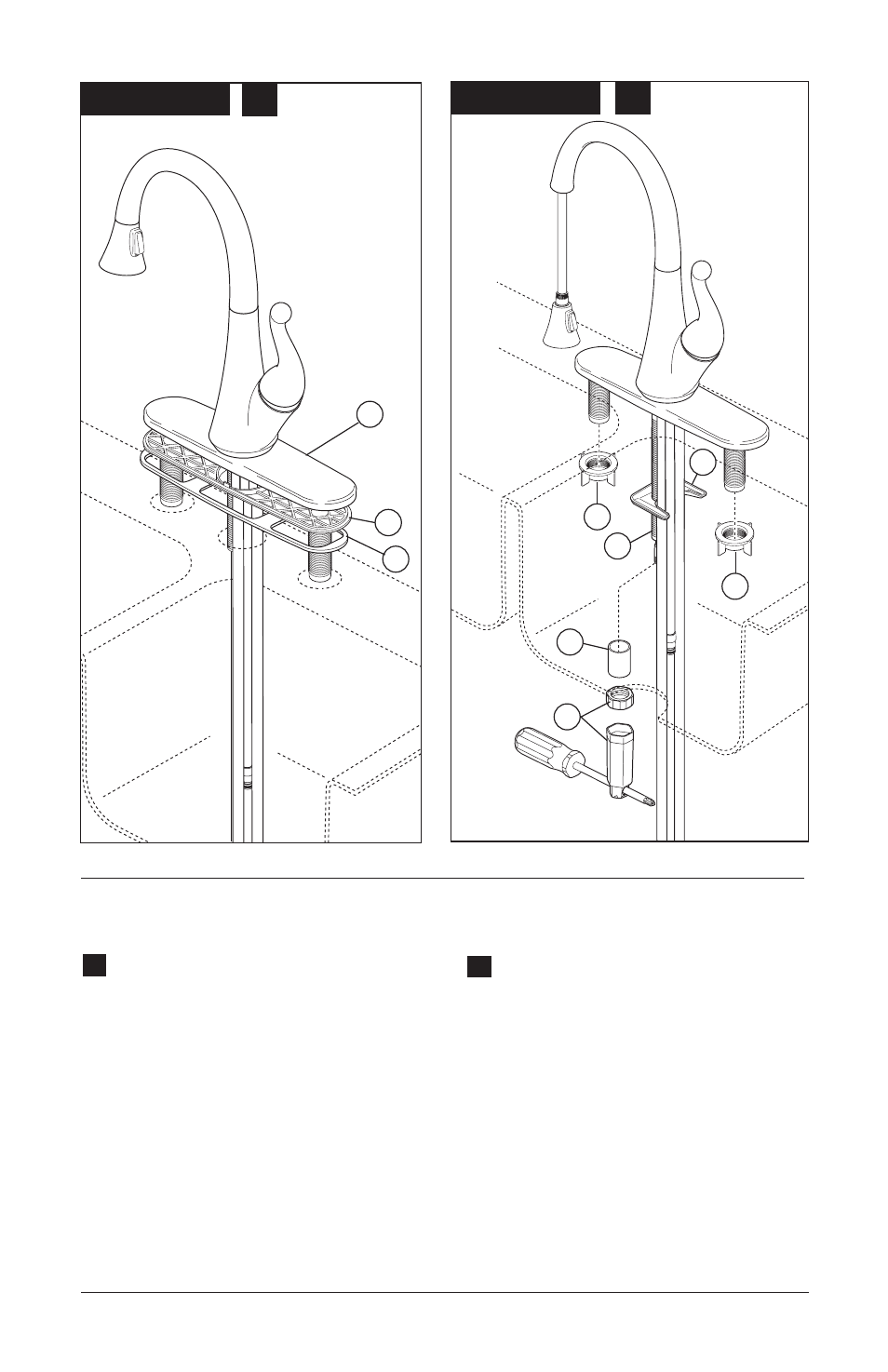

For optional installations using the 10"
escutcheon, replace the trim ring with
the escutcheon (1), undercover plate (2)
and gasket (3).
OPTIONAL
A.
OPTIONAL
B.
Push hose partially up into mounting
shank (1). Mount as shown above using
the nuts (2), bracket (3) with nut and
wrench (4) and spacer (5) (if needed).
Note: The wrench provided is
designed to be used with a variety of
tools: flat/Phillips head screwdrivers,
wrenches, etc.
B.
2
3
1
5
Faucet Installation with 10" Escutcheon
5
