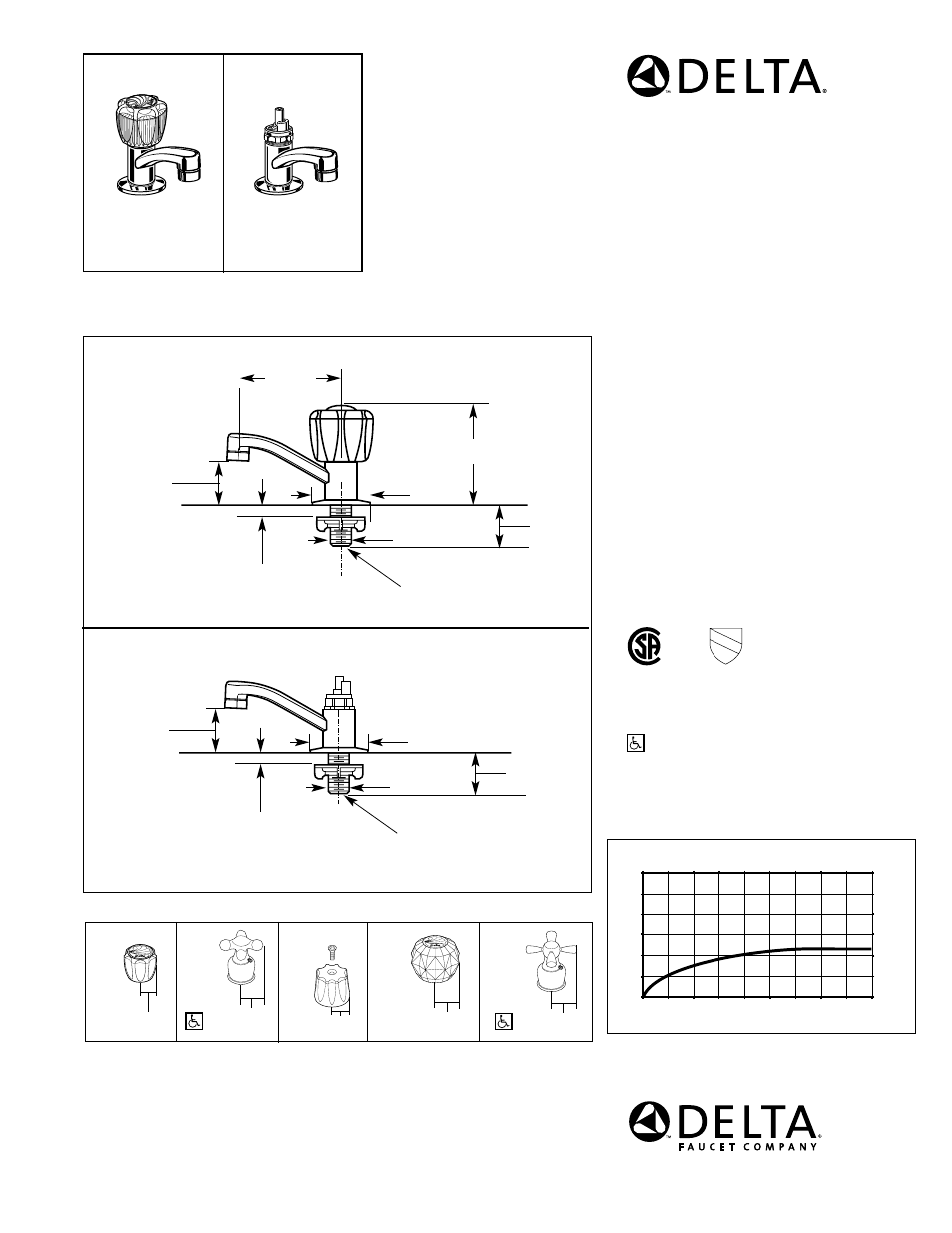

Delta 2302-LHP User Manual
Specialty faucets, Complies with, Warranty
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates ADA compliance to
ICC/ANSI A117.1
•
IAPMO Listed
•
CSA Certified
SPECIALTY
FAUCETS
■ Single Handle Deck Mount
■ Basin Faucet
■ Single Hole Sink Applications
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
STANDARD SPECIFICATIONS:
•
Solid fabricated brass body.
•
Can be used as hot or cold faucet.
•
4" (102 mm) long rigid spout.
•
LHP - Less Handle Program. See handle options below.
•
1/4 turn handle stop.
•
Control mechanism is the rotating cylinder type
with stainless steel plate and 180˚ rotation, with
replaceable non-metallic seats operating in
stainless steel lined sockets.
•
All operating parts shall be replaceable from
the top.
•
1/2"-14 NPSM threaded male inlet shank.
•
2" (51 mm) diameter escutcheon.
2302-LHP
2302
DSP-S-2302 Rev. B
Indianapolis, Indiana 46280
A Division of Masco Corporation of Indiana
© 2006 Masco Corporation of Indiana
2302-LHP
2302
0
1
2
3
4
5
0
10
20
30
40
50
60
70
80
90
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
0
69
138
207
276
345
414
483
552
621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
4"
(102 mm)
2"
(51 mm)
1 1/2"
(38 mm)
2"
(51 mm)
Dia.
2"
(51 mm)
Dia.
13/16"
(21 mm)
Dia.
1 1/2"
(38 mm)
2"
(51 mm)
13/16"
(21 mm)
Dia.
3 5/8"
(92 mm)
1 1/8" (29 mm)
Max. Deck Thickness
1 1/8" (29 mm)
Max. Deck Thickness
H11
H17
H18/RP5210/
RP7828
H36
H31
1 1/4"
(32 mm)
1 1/4"
(32 mm)
1 3/8"
(35 mm)
3/4"
(19 mm)
1 1/8"
(29 mm)
®
®
U P
C
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book for
finish options and product avalability.
1/2" -14 NPSM
1/2" -14 NPSM
1.D.11
WARRANTY
• Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from
defects in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
Available LHP Handle Accent Options
