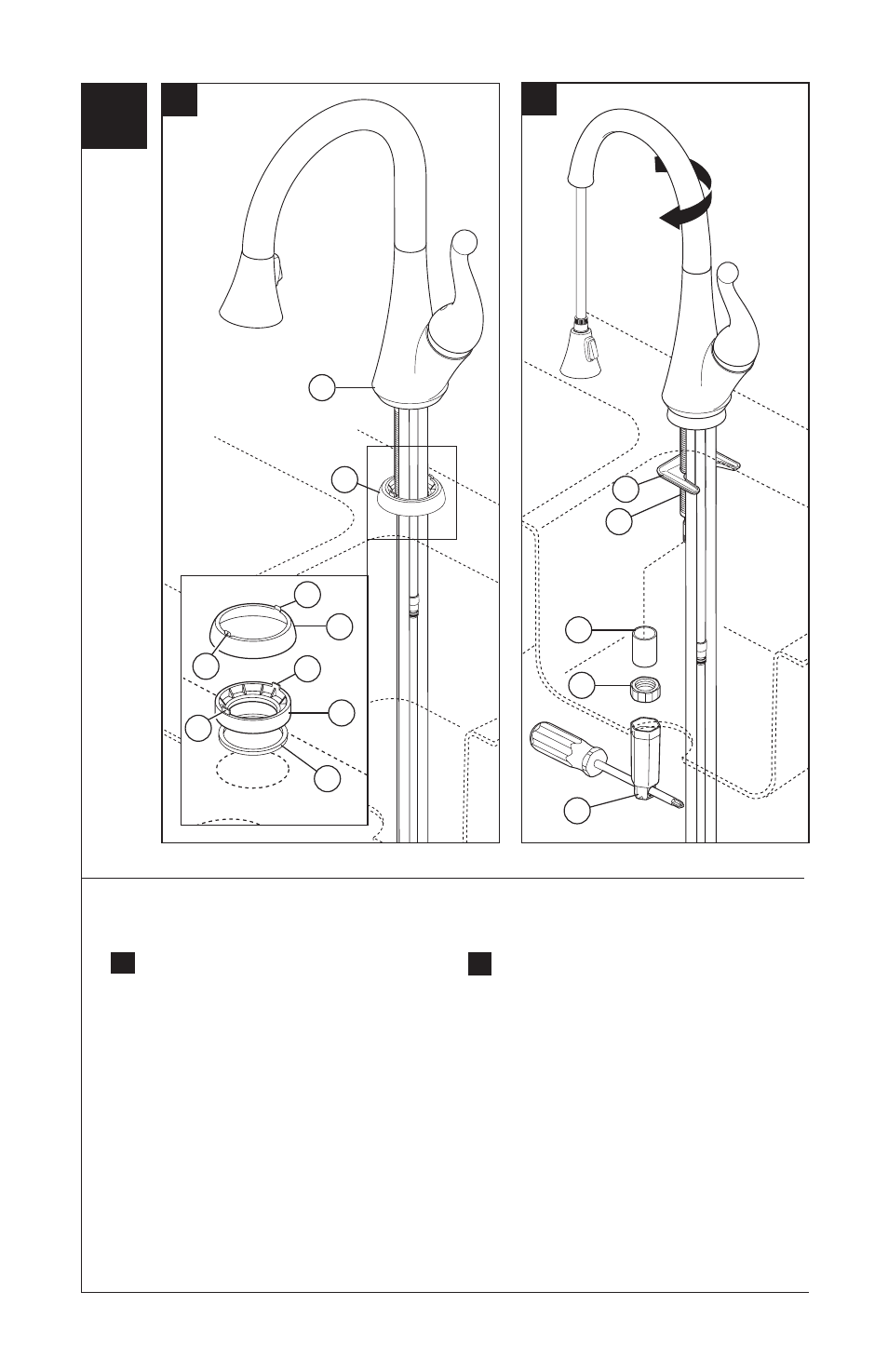

Faucet Installation
3
A.
Push hose partially up into mounting
shank (1). Install the mounting bracket
(2) and nut (3) onto mounting shank
(1) using wrench (4). For decks up to
1 3/8" (35 mm) thick, use provided
spacer (5) between nut and mounting
bracket. Note: The wrench provided is
designed to be used with a variety of
tools: flat/Phillips head screwdrivers,
wrenches, etc. HINT: Turn the spout
tube opposite the handle to balance the
assembly and aid the hose installation
when mounting.
B.
3
4
B.
2
5
1
Your faucet is designed for a hole
diameter of 1 3/8" ± 1/8"
(35 mm ± 3 mm) and a deck
thickness up to 2 1/2" (64 mm).
Place gasket (1) into groove on bottom
of base ring (2). Place base ring onto
sink over mounting hole, then install
trim ring (3) over base ring. Tabs (4)
on trim ring and base ring should be
aligned together at the front and rear of
the installation hole.
Insert faucet lines and shank through
mounting hole, then install hub (5) onto
trim ring. Ensure that tabs on trim and
base rings are correctly located in slots
on bottom of hub.
A.
5
1
3
2
4
1
2
3
4
4
4
4
