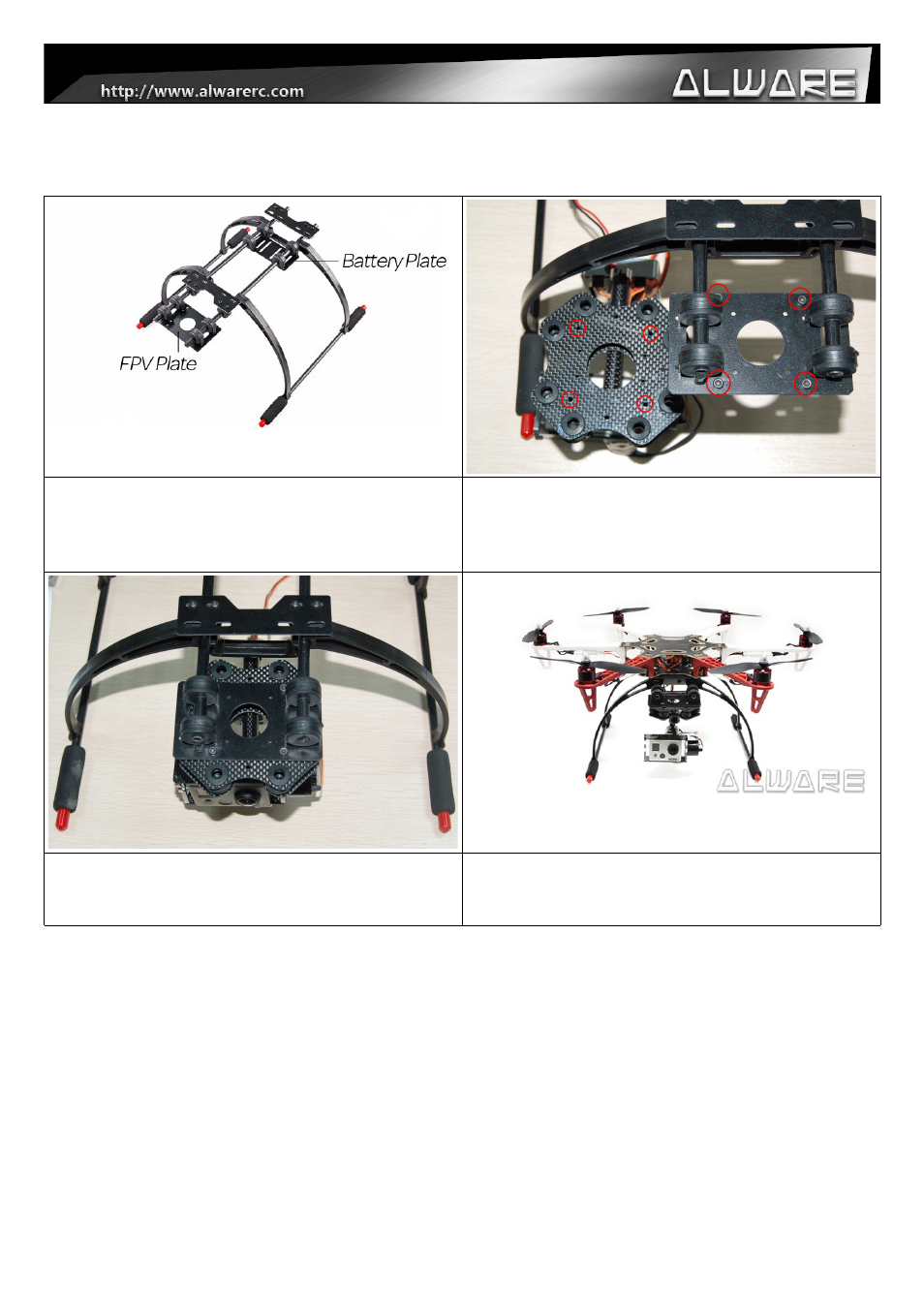

7. Assembly Steps – Install with Landing Gear
Step 1.
Install the Advanced Landing Gear according to the
above photo.
(Apply little amount of Thread Locker
when securing screw to metal parts.)
Step 2.
Mount the Gimbal Assembly onto the FPV Mount
Plate using 4pcs M3x 10mm Hex Cap Screws with
M3 Self-Lock Nuts.
Step 3.
Finished Gimbal Assembly with the Advanced
Landing Gear. Step 4.
Illustration to install with DJI F550 Hexacopter.
