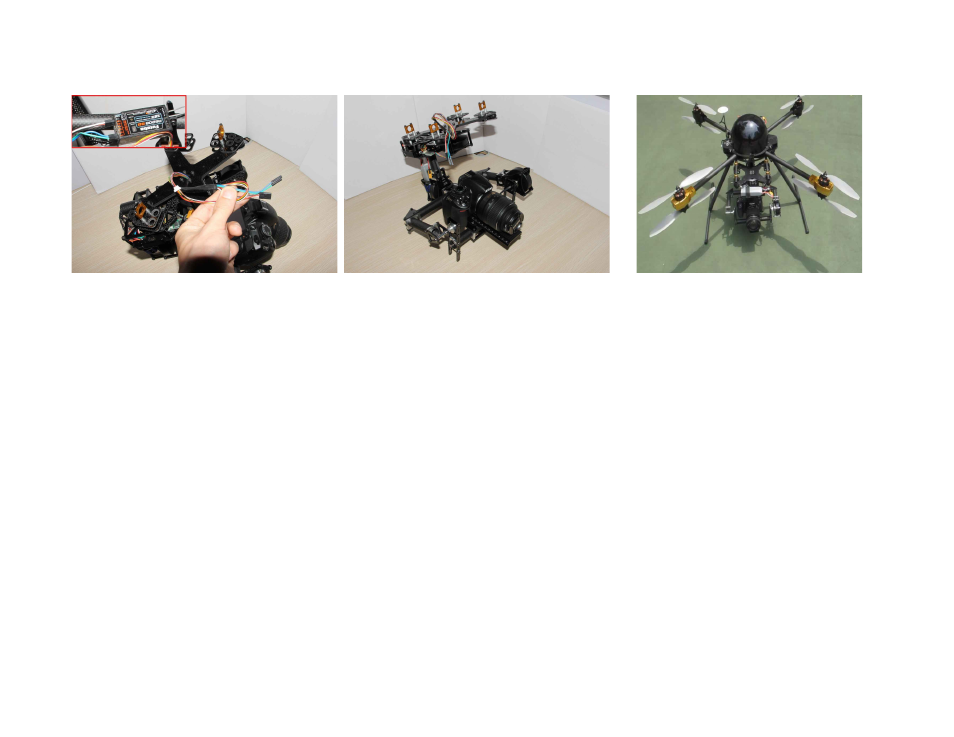

Connect the RC Control Cable to three
channels of your Receiver.
3-wires Cable: Control Lock and Follow Mode
(Connet to any 2-way or 3-way switch channel)
Blue wire: Control Yaw movement
Green wire: Control Pitch movement
Complete assembly in Aerial Mode.
Installing on Cyclone X8/ DJI S800/ 1000
multicopters.
