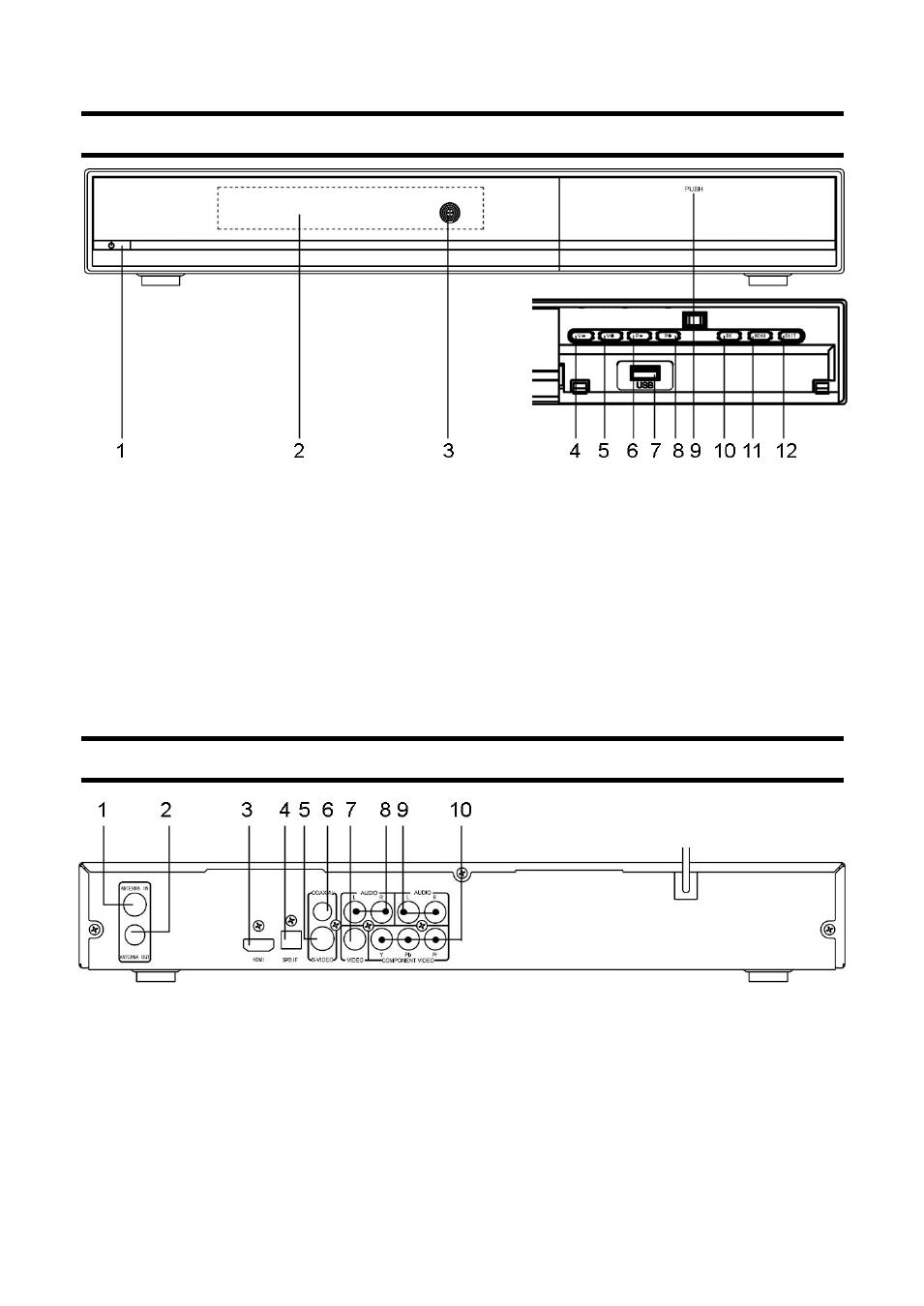

FRONT PANEL
1. Standby button
2. Status indicator/ displaying board
3. Remote sensor
4. 5. Volume adjustment
6. 8. Channel up or down/ cursor movement
7. Interface, USB. Used to insert an external USB device. We do recommend adopting
a memory device that supports interface 2.0 (size limit applies)
9. The POINT to push the mini-door to open/ close the lid
10. OK. Operation confirmation
11. MENU. Menu entry
12. EXIT. Exit operation
REAR PANEL
1. Terminal, ANTENNA IN connection with antenna signal
2. Terminal, ANTENNA OUT. Antenna signal loop through ( TO TV )
3. Interface, HDMI. An interface that carries both the audio and the video signal in
digital format the same time.
4. Interface, SPDIF. Digital optical audio signal output. You can link it with either an
amplifier or a TV set with a SPDIF interface as well
5. Interface, S-VIDEO. An interface provides clearer video signal than VIDEO
