4. SET UP- Amplifier

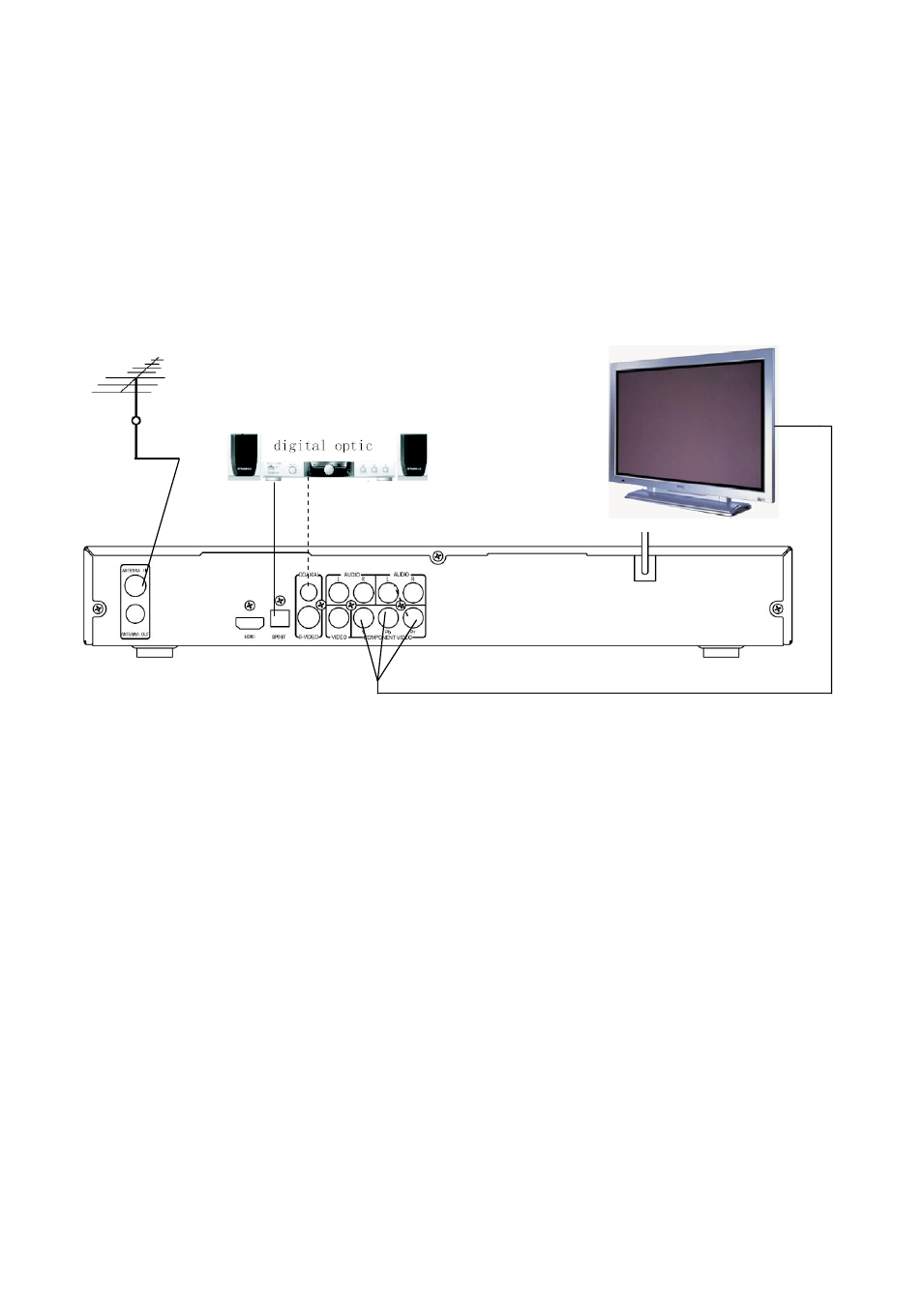

For this Set Up, use your preferred video connection, the example below
shows video connection via YPbPr (component), you can use other methods
from the previous examples. You will also need an Optical cable for the
audio set up.
4.1 Prepare your equipment
Make sure that your television monitor has a component input; it may be
labeled “YPbPr”, COMPONENT VIDEO. In any case it will be
characterized by the red, green and blue connectors and grouped together.
Ensure that the power leads to both the TV monitor and the Set Top Box are
unplugged before you commence the set up procedure.
4.2 Connecting Video and Audio
Video
Follow the instructions for one of the previous video set up examples to suit
your system.
Audio
a) Connect the optical cable to the SPDIF/COAXIAL connector on the rear
of the set top box.
b) Connect the other end of the optical cable to the Amplifier.
