TME-EXP-ETH8-1V3 Rev 1.3 Page 2 of 17
PHY
 Compliant with the 1 Gb/s IEEE 802.3 802.3u
802.3ab specifications
 IEEE 802.3ab auto negotiation support
 Full duplex operation at 10/100/1000 Mb/s
 Half duplex at 10/100 Mb/s
 Auto MDI, MDI-X crossover at all speeds
High Performance
 TCP segmentation capability with Large Send
offloading features
 Support up to 256 KB TCP segmentation
(TSOv2)
 Fragmented UDP checksum offload support
 Split header support
 Receive Side Scaling with two hardware
receive queues
 9 KB jumbo frame support
 32 KB packet buffer size
Manageability
 SMBus advanced pass through interface

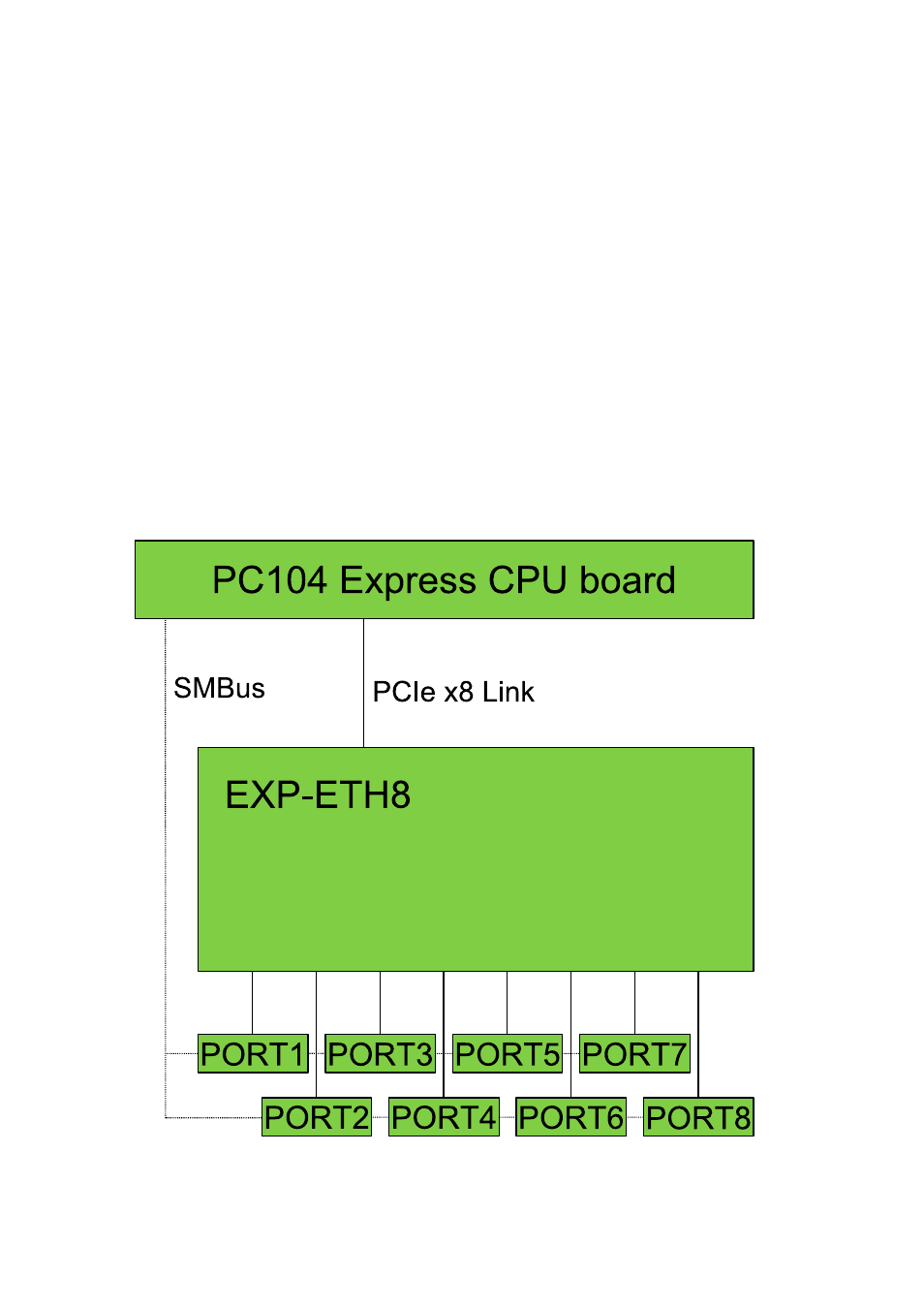

Block Diagram
