Getting Started 21
AD-mITX-T40H

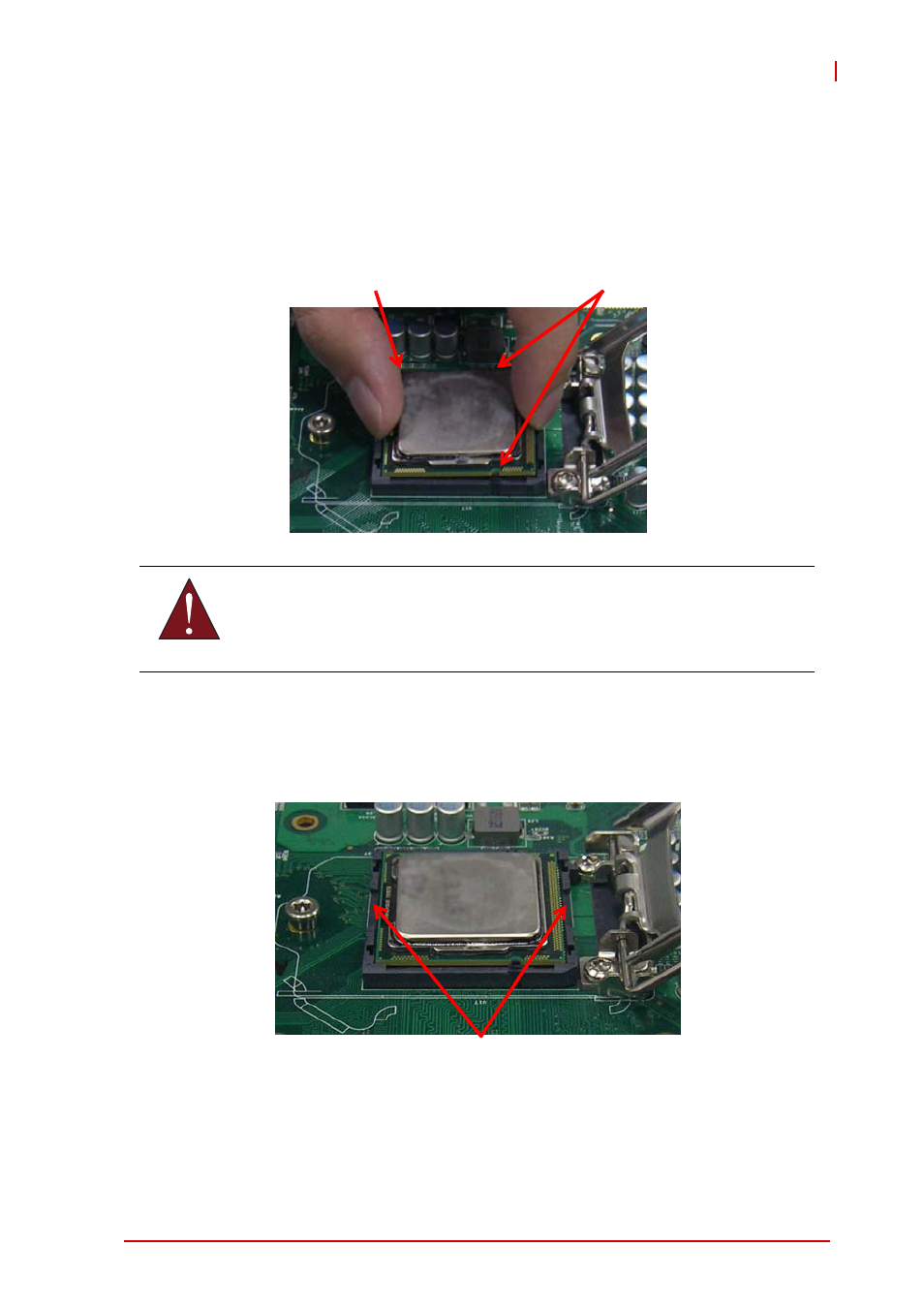

5. Hold the CPU using thumb and forefinger as shown. Position the
CPU over the socket, matching the notches on the sides of the
CPU with the alignment keys on the socket (A). The golden trian-
gle on the CPU must be positioned at the corner of the socket
with the Pin 1 indicator as shown (B).
6. Carefully place the CPU into the socket vertically. The socket has
cutouts for your fingers to fit into.
WARNING:
The CPU fits into the socket in only one orientation. DO NOT
force it into the socket to avoid causing damage.
A B
Cutouts
