2.2 Board Layout

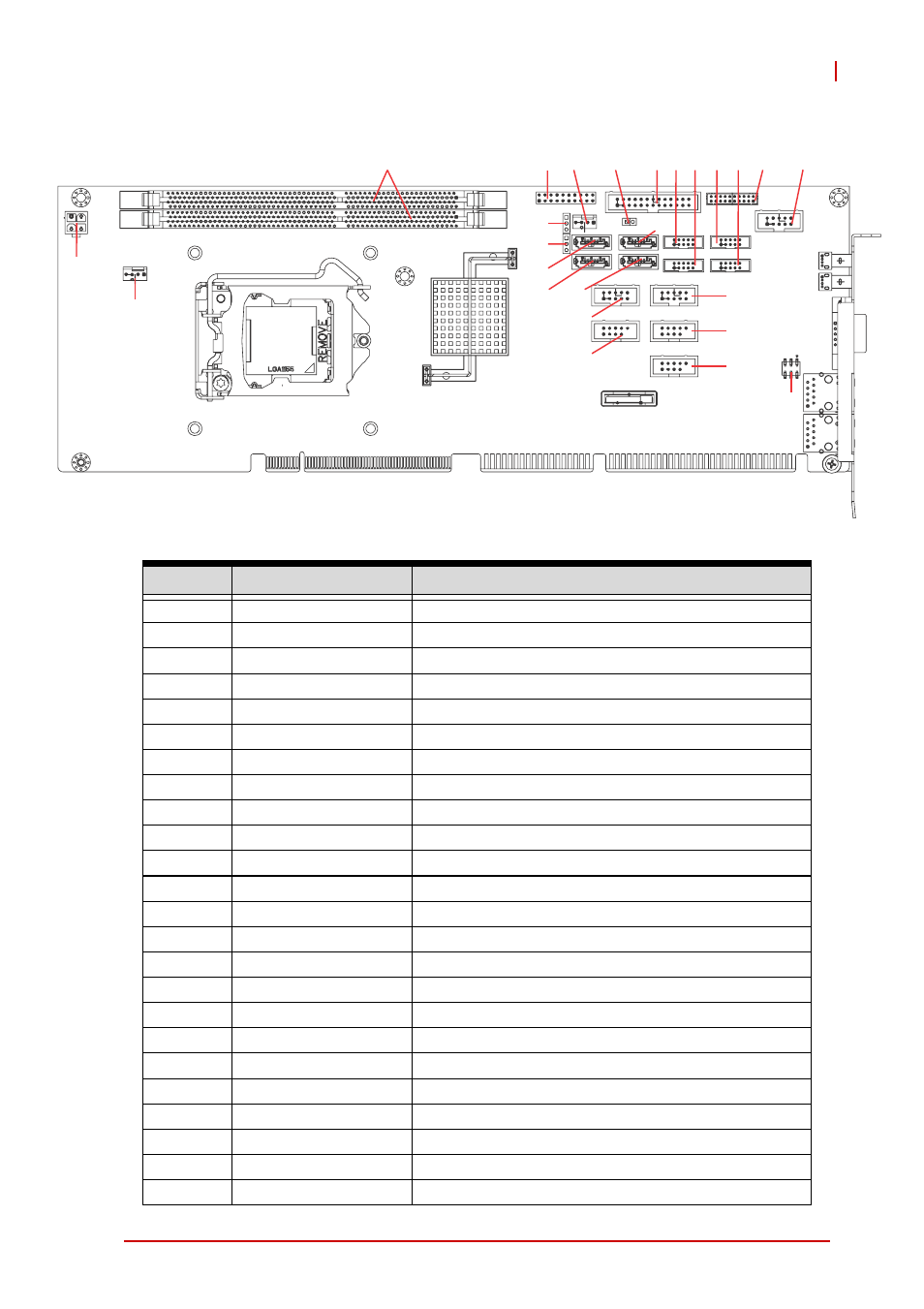

Figure 2-2: Connectors and Jumpers
Connector Description
1 CN24 ATX 12V Power connector
2 DIMM1/2 DDR3 DIMM slots
3 CN23 System Panel pin header
4 FAN2 FAN2 connector
5 CN14 Watchdog disable jumper
6 CN30 Parallel Port connector
7 CN25 COM5 connector
8 CN12 COM3 connector
9 CN19 COM4 connector
10 CN26 COM6 connector
11 CN17 DVI-D onboard connector
12 CN10 COM1 connector
13 CN18 COM2 connector
14/15 CN8/6 USB 8/9, 4/5 headers
16 CN16 PS/2 Keyboard/Mouse pin header
17 CN3 USB 2/3 header
18 CN9 Audio connector
19 CN7 SATA5 connector
20 CN9 SATA4 connector
21 CN2 SATA0 connector
22 CN4 SATA1 connector
23 CN28 Clear CMOS jumper
24 CN29 Clear RTC jumper
25 FAN1 FAN1 connector
1
4 2 6 3 7 8 9 10 11 12
18
16
23
5
13
14
15
17
19
22
20 21
25
24
