3.4 Graphics-Controller
The CoreExpress-ECO2's graphics controller is integrated in E6xxT CPU. It features a 2D/3D engine
and supports two dedicated display ports.
LVDS
The CoreExpress-ECO2 supports LVDS displays. The specification for LVDS is:
• data format 18/24bits (single channel)
display backlight support (Intel´s display power saving technology or optional SMC)
maximum pixel clock rate up to 80 MHz.
maximum resolution up to 1280x768 @ 60 Hz, Minimum pixel clock is 19.75 MHz
SDVO
• Digital Display port SDVO for ADD2 card or SDVO-DVI transmitter on carrier
maximum resolution up to 1280x1024 @ 85 Hz
maximum pixel clock rate up to 160 MHz

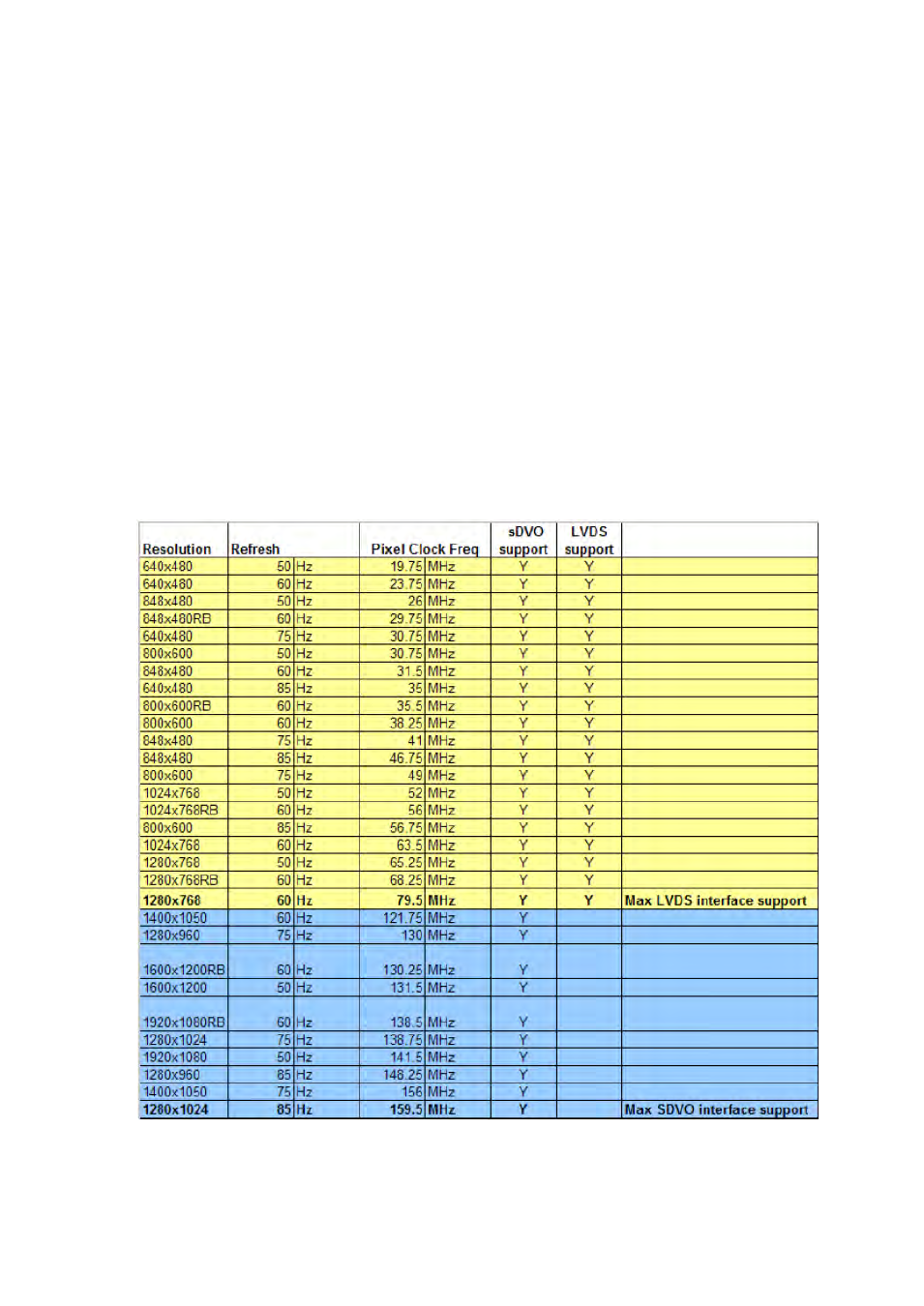

LVDS / SDVO Configuration
The following display modes are supported:
