Chapter 2 Product Overview
nanoX-TCR Reference Manual 11

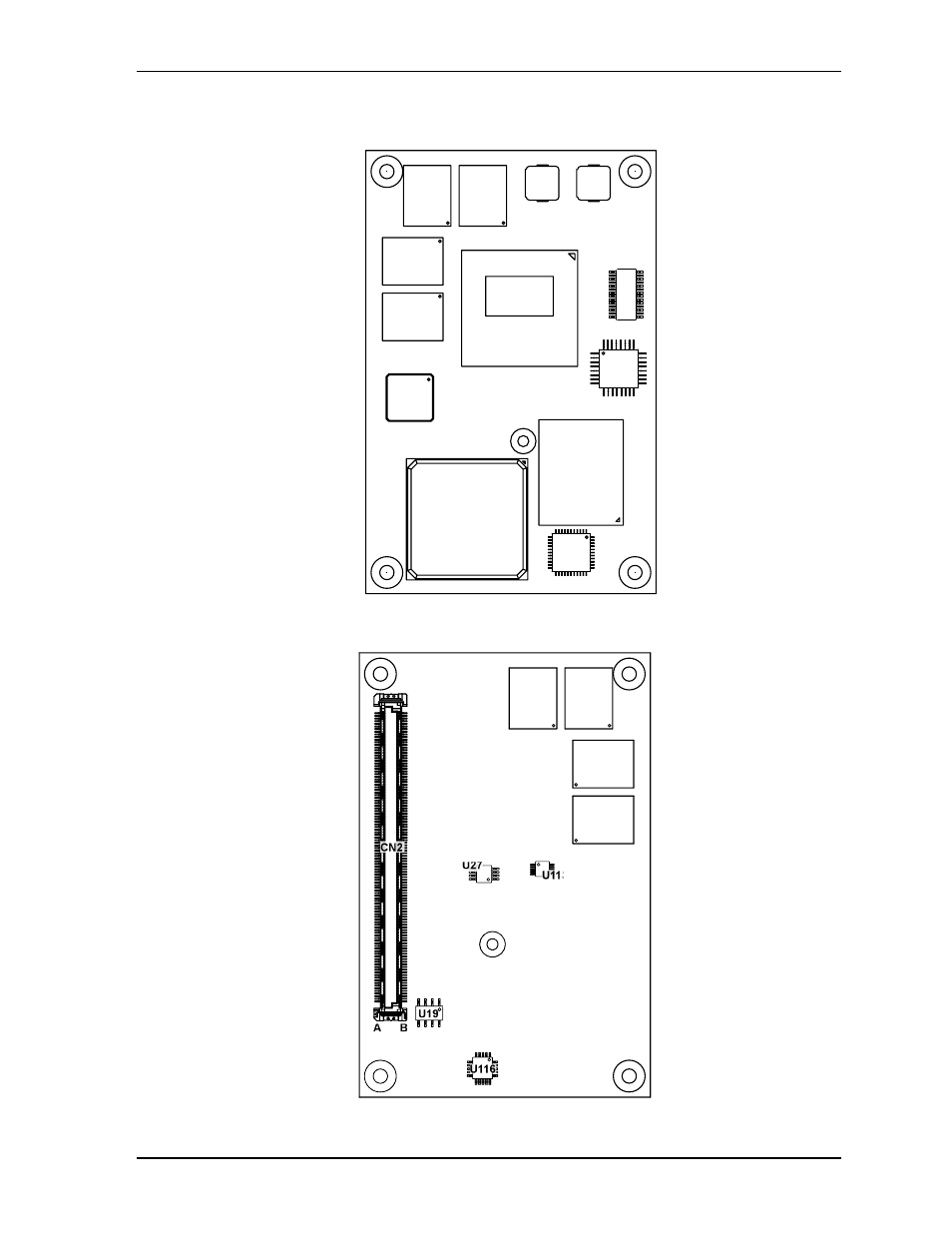

Figure 2-3. Component Locations (Top Side)
Figure 2-4. Component Locations (Bottom Side)
nanoX-TCR_T
op_Comp_a
Key:
U3
- SSD [Optional]
U5 - SD/GPIO Switch
U7 - Gigabit Ethernet Controller
U10 - Board Controller
U31 - CPU
U38 - DDR2 SDRAM
U39 - DDR2 SDRAM
U40 - DDR2 SDRAM
U41 - DDR2 SDRAM
U42 - PCH
U115 - Power Management (IC)
U31
U3
U42
U7
U38 U39
U40
U41
U5
U10
U115
nanoX-TCR_Bottom_Comp_a
U43 U44
U46
U45
Key:
U19
- SPI Ethernet EEPROM
U27 - 2-Wire Serial EEPROM
U43 - DDR2 SDRAM
U44 - DDR2 SDRAM
U45 - DDR2 SDRAM
U46 - DDR2 SDRAM
U113 - Temperature Sensor
U116 - Power Regulator
CN2 - COM Express Type 10
Connector (see
connector table)
U113
U27
