BIOS Setup
97
cPCI-6930
8.4.2

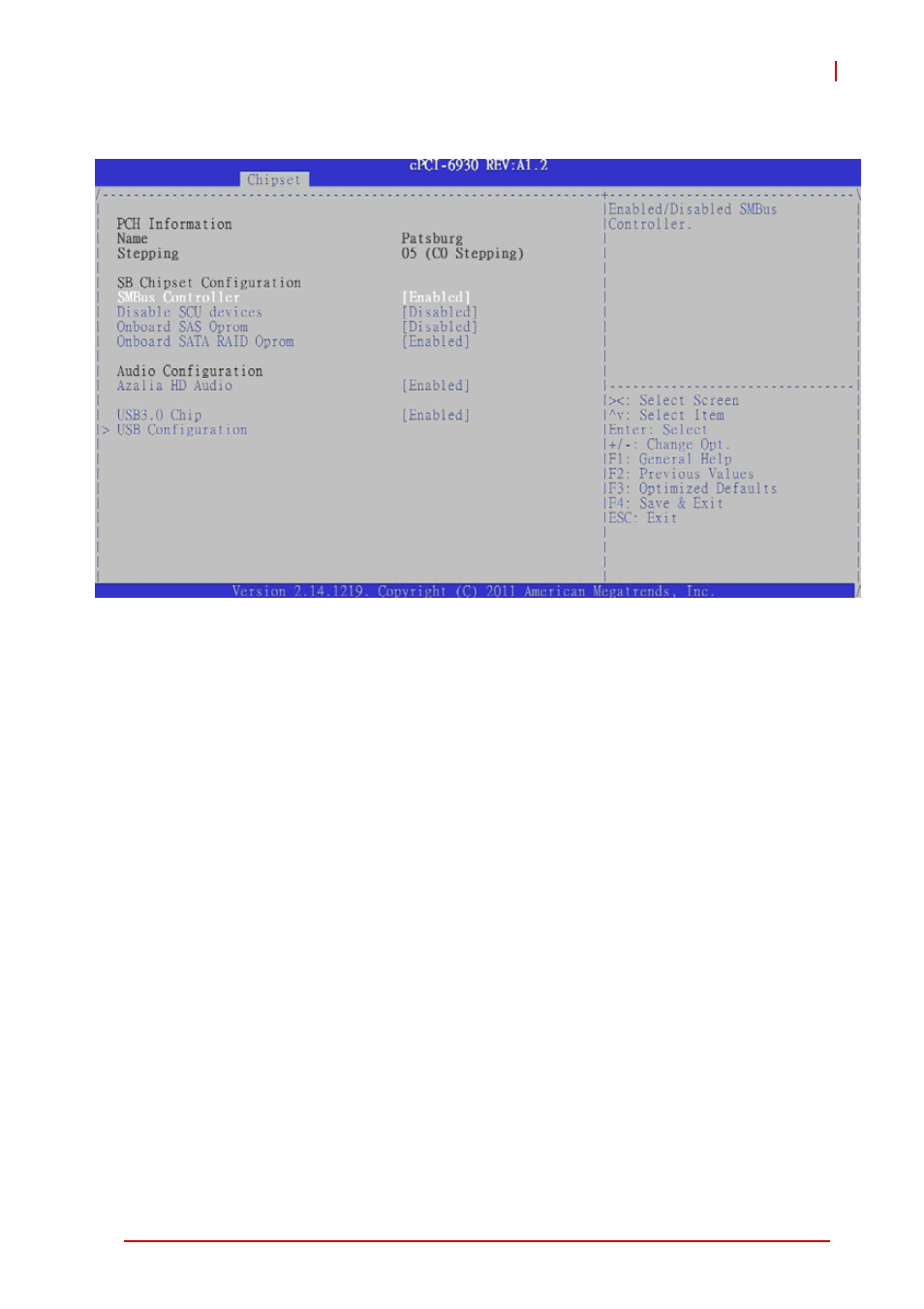

South Bridge Configuration
SMBus Controller
The SMBus controller. Options: Enabled/Disabled.
Disable SCU devices
Patsburg SCU devices. Options: Enabled/Disabled.
Onboard SAS Oprom
Onboard SAS OpROM if launch storage OpROM is enabled.
Options: Enabled/Disabled.
Onboard SATA RAID OpROM
Onboard SATA RAID OpROM if launch storage OpROM is
enabled. Options: Enabled/Disabled.
Azalia HD Audio
The audio controller. Options: Enabled/Disabled.
USB 3.0 Chip
PCI Express USB 3.0 chip. Options: Enabled/Disabled.
