1.2 Specifications

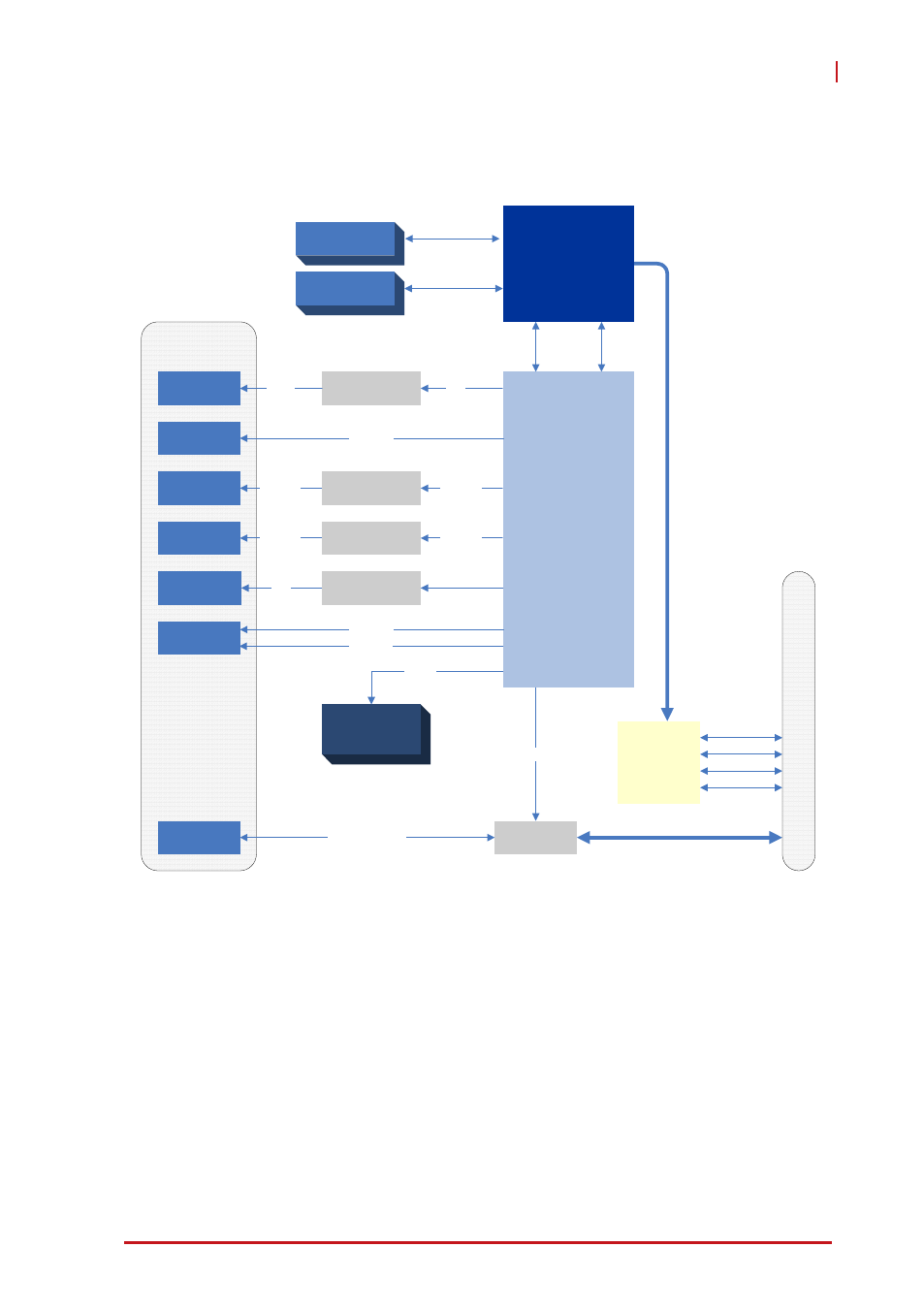

Figure 1-1: PXIe-3975 Functional Block Diagram
Processor
X
Intel
®
Core™ i5-520E 2.4GHz processor
X
DMI (Direct Media Interface) with 1 GB/s of bandwidth in
each direction
Chipset
Mobile Intel
®
QM57 Express
Channel B
204 pin SODIMM
Channel A
204 pin SODIMM
Front Panel
Connectors
Intel® QM57
Express Chipset
Intel® Core™
i5-520E 2.4GHz
Processor
PCIe x1
GbE
connector
GbE I/F
USB
connector x4
GPIB controller PCI
GPIB
connector
GPIB
SMB
Connector
PXIe C
o
n
n
ector
Trigger Bus
Controller
34mm
ExpressCard
PCIe Gen2.0
swtich
2.5" SATA HDD
SATA
GbE
connector
GbE I/F
Digital
Display I/F
DVI
DVI-I
connector
PCIe x1
PCIe Gen1 x8
DVI level shifter
Trigger Signal
SMBUS
PCIe 2.0x4
Intel FDI DMI
GbE controller
82574L
GbE controller
82574L
Trigger Bus
PCIe 2.0x4
PCIe 2.0x4
PCIe 2.0x4
DDR3
800/1066MHz
DDR3
800/1066MHz
USB 2.0
USB 2.0
PCIe x 1
