Utility/Calibration
•
33
6.1.1 Functional Testing
This function is used to test the D/A functions of the cPCI/PCI-6208V
/6208A /6216V.
When you choose one of the testing functions from the functions menu, a
channel selection menu is displayed on the screen. Move the cursor and
press to select the channel you want to test. After you have
selected a channel from the channel selection menu, a testing window
appears. Figures below are the function testing menu window.

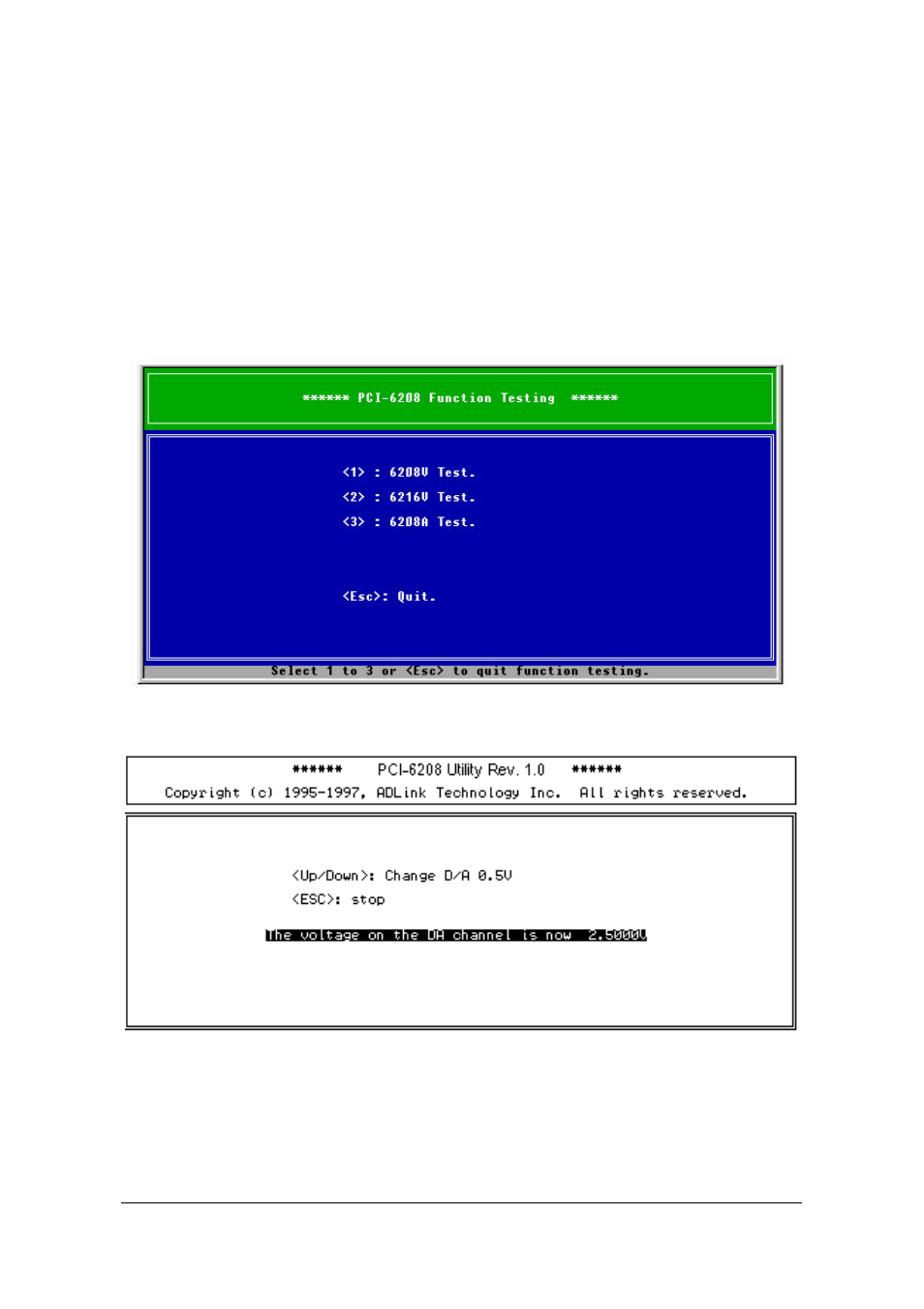

Figure 10: Function Testing Menu Window
Figure 11: 6208V Testing Window
