7

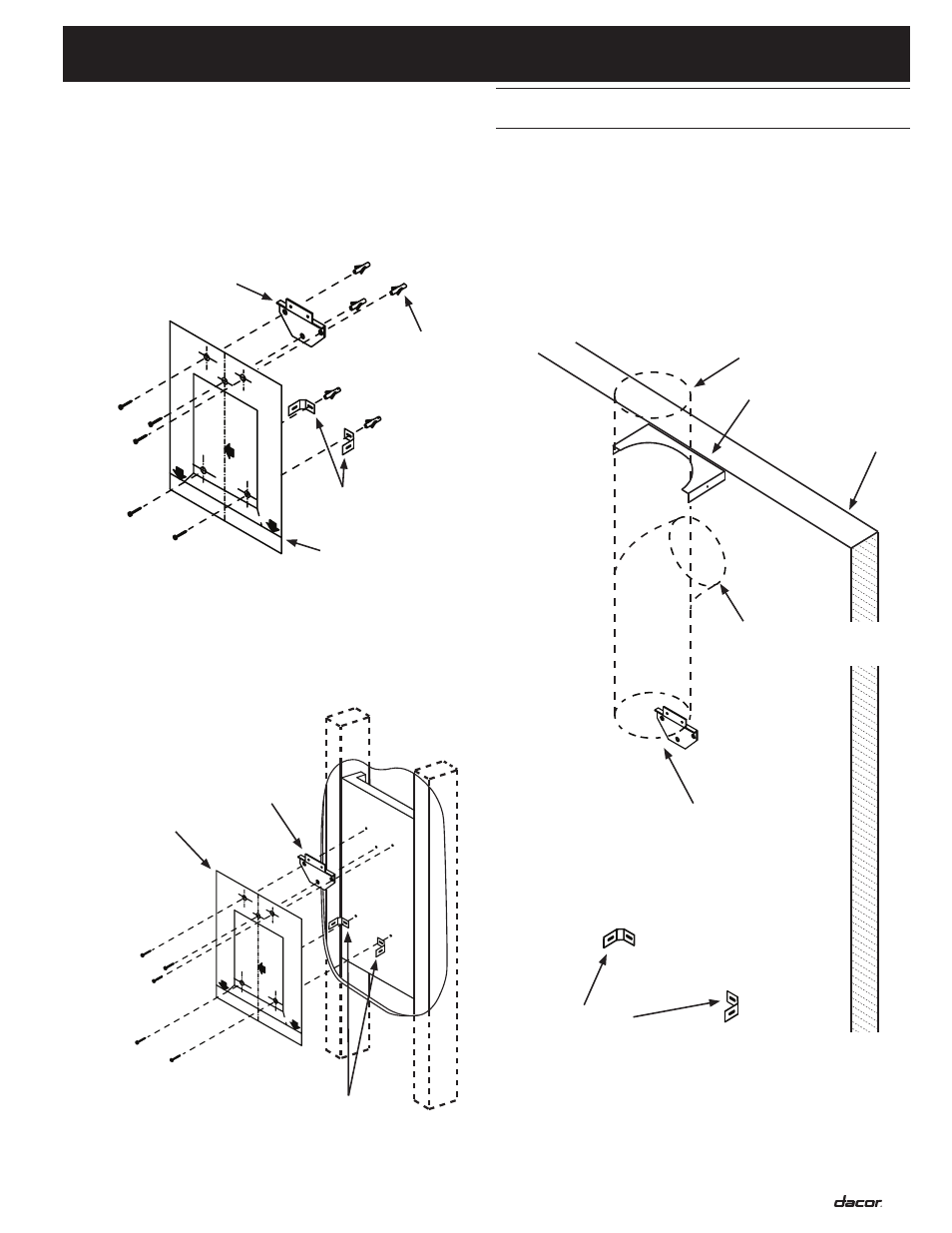

Drill the mounting holes... 5.
Attach the blower assembly mounting bracket and the 6.
“L” brackets securely to the wall (5 places).
InstallatIon InstructIons
If mounting the hood to brick or masonry:
Drill five 5/16” X 1 1/2” holes in the locations •
marked.
Insert five of the provided wall anchors into the five
•
holes. The anchors provided are for attaching the
hood to masonry or brick only.
If mounting the hood to drywall:
Drill five appropriate sized holes for the mounting •
hardware being used. The drywall mounting
hardware must be purchased separately.
TEMPLATE
ANCHOR
MOUNTING
BRACKET
“L”
BRACKETS
TEMPLATE
MOUNTING BRACKET
“L” BRACKETS
Install the duct Work
IMPORTANT - The installed duct work must:
Be centered on the vertical center line drawn on the •
wall.
Fit flush into the half circle on the chimney mounting
•
bracket, if the duct work is to enter the chimney through
the ceiling rather than through the back wall).
Extend down as far as the top of the blower assembly
•
mounting bracket.
WALL
CHIMNEY MOUNTING
BRACKET
END OF DUCT,
EVEN WITH TOP OF
BLOWER ASSEMBLY
MOUNTING BRACKET
DUCT THROUGH BACK
WALL (OPTION 2)
DUCT THROUGH
CEILING (OPTION 1)
MOUNTING TO BRICK OR MASONRY
MOUNTING TO DRYWALL OR PLASTER
“L” BRACKET
DUCT TAPE ALL jOINTS
