InstallatIon InstructIons
Hanging the blower assembly
WARNING
Do not use screws to attach the duct work to the •
exhaust outlet. Use duct tape only. Screws may
prevent the damper flaps on the top of the hood from
opening.
Inside the exhaust outlet on the top of the blower 1.
assembly, there are metal or plastic damper flaps. The
flaps close to help prevent back-drafts when the blower
is turned off. Remove the shipping tape and make sure
the flaps open and close freely before proceeding.
Lift the blower assembly up and put the mounting hole 2.
on the top over the mounting bracket, while inserting
the exhaust outlet into the end of the duct system.
Gently lower the blower assembly onto the lip of the
mounting bracket. Slide the bottom part of the blower
assembly between the two “L” brackets.
Insert two provided machine screws into the two holes 3.
above the mounting bracket on the blower assembly
and tighten into place.
Insert two machine screws through the front of the
4.
mounting bracket and tighten into place.
Insert two machine screws through the side of both “L”
5.
brackets and tighten into place.
Attach the end of the duct system to the exhaust outlet 6.
with duct tape.

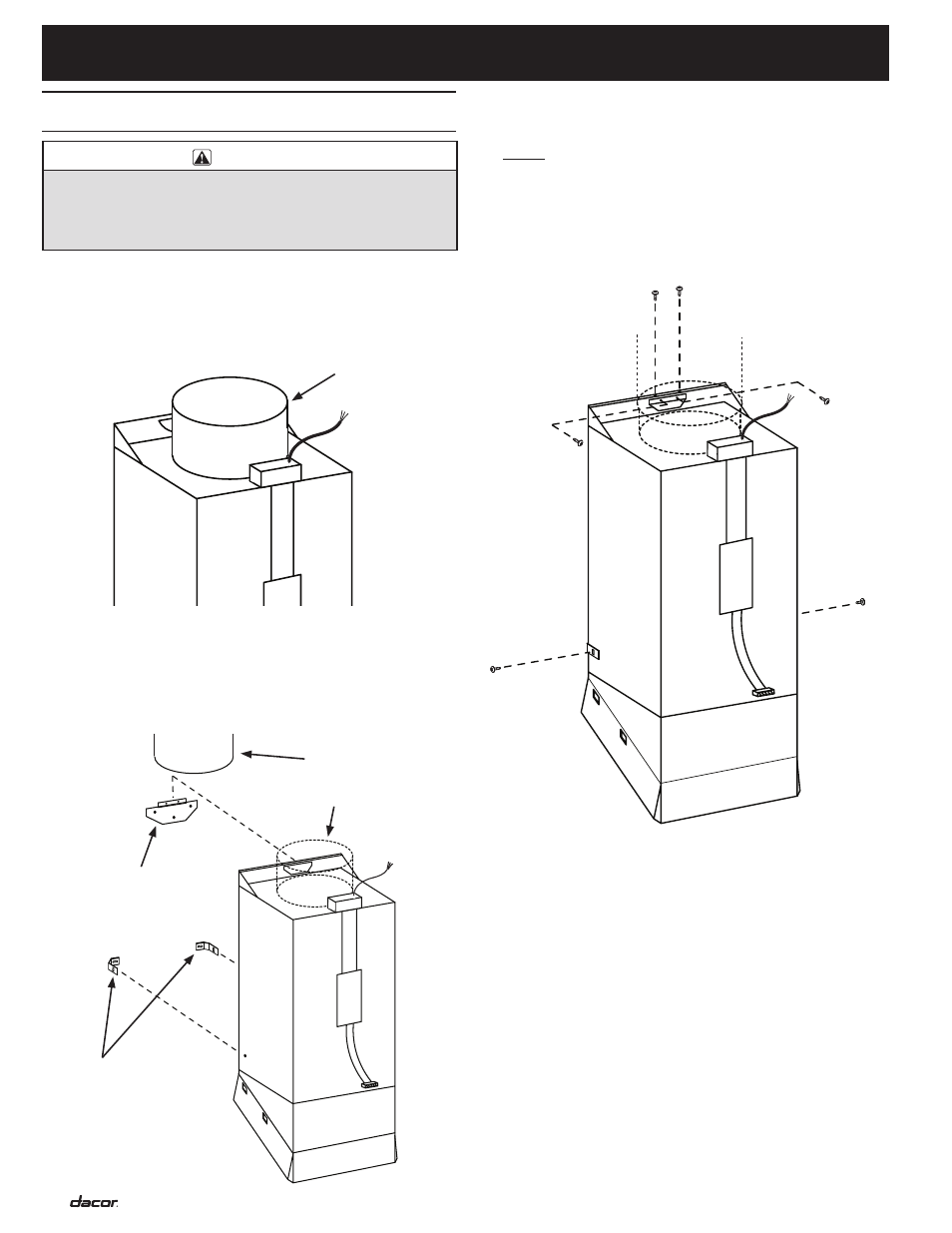

ExHAUST
OUTLET
“L” BRACKETS
MOUNTING
BRACKET
INSERT ExHAUST
OUTLET INTO
END OF DUCT
