AR-B1622 User’s Guide
8

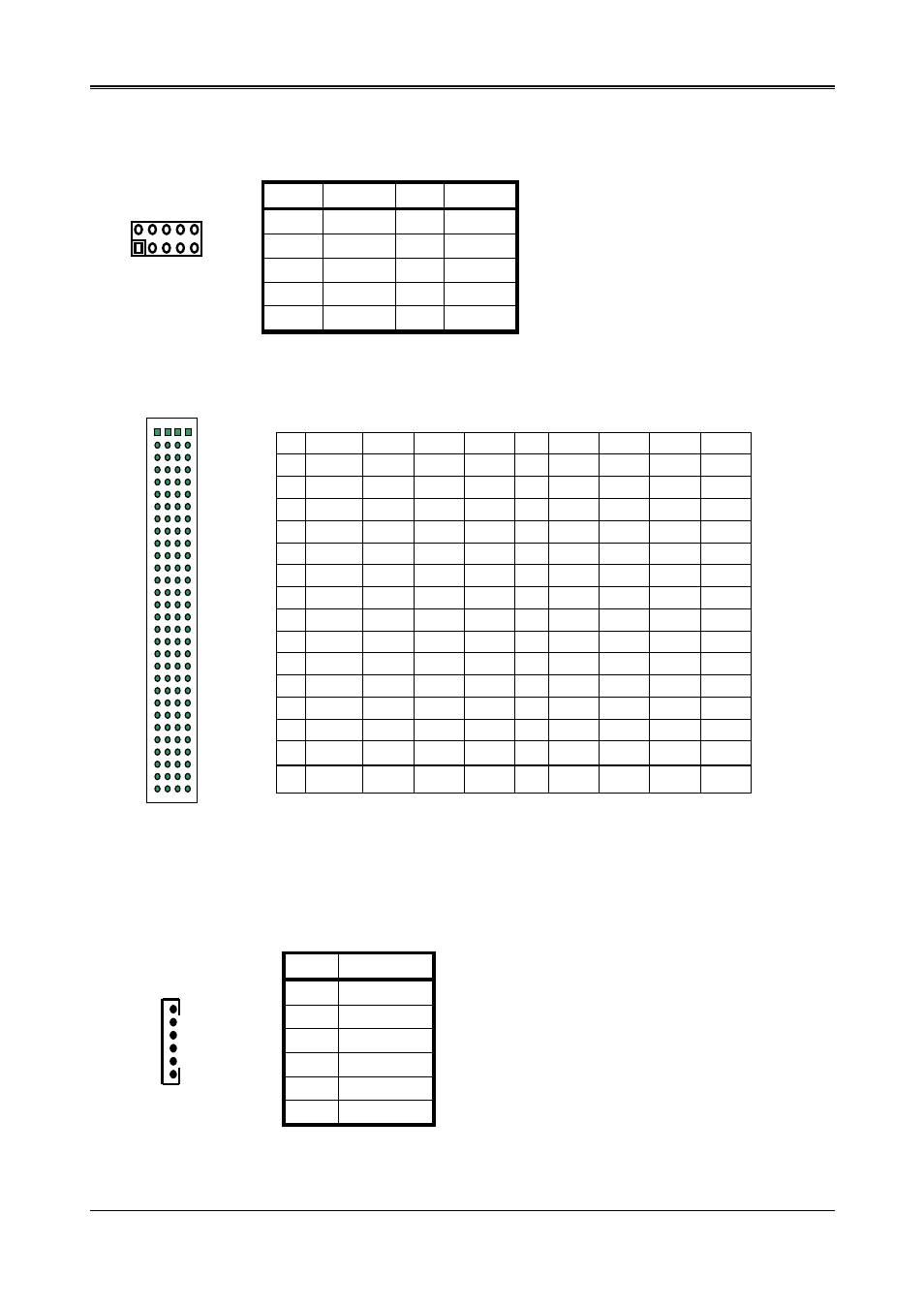

2.2.5 DIO1（GPIO）
2.2.6 J5（PCI104）
2.2.7 KBMS1
PIN DEFINE PIN DEFINE
1 GND 2 5V
3 BIT 4 4 BIT 5
5 BIT 5 6 BIT 6
7 BIT 0 8 BIT 1
9 BIT 2 10 BIT 3
A B C D A B C D
1 NC SERIR +5V AD0 16 AD21 AD20 GND AD19
2 NC AD2 AD1 +5V 17 +3.3V AD23 AD22 +3.3V
3 AD5 GND AD4 AD3 18 IDSEL0 GND IDSEL1 AD22
4 C/BE0# D7 GND AD6 19 AD24 C/BE3# NC AD23
5 GND AD9 D8 GND 20 GND AD26 AD25 GND
6 AD11 NC AD10 NC 21 AD29 +5V AD28 AD27
7 AD14 D13 GND AD12 22 +5V AD30 GND AD31
8 +3.3V C/BE1# AD15 +3.3V 23 REQ0# GND REQ1# NC
9 SERR# GND PULL PAR 24 GND REQ2# +5V GNT0#
10 GND PERR# +3.3V PULL 25 GNT1# NC GNT2# GND
11 STOP# +3.3V LOCK# GND 26 +5V CLK GND CLK
12 +3.3V RDY# GND DEVSE 27 CLK +5V NC GND
13 FRAME# GND IRDY# +3.3V 28 GND INTD# +5V PCIRST
14 GND AD16 +3.3V C/BE2# 29 +12V INTA# INTB# INTC#
15 AD18 +3.3V AD17 GND 30 NC NC NC NC
PIN DEFINE
1 MSDATA
2 KBDATA
3 GND
4 5V
5 MSCLK
6 KBCLK
2
1
10
9
1
6
