AR-B1622 User’s Guide
10

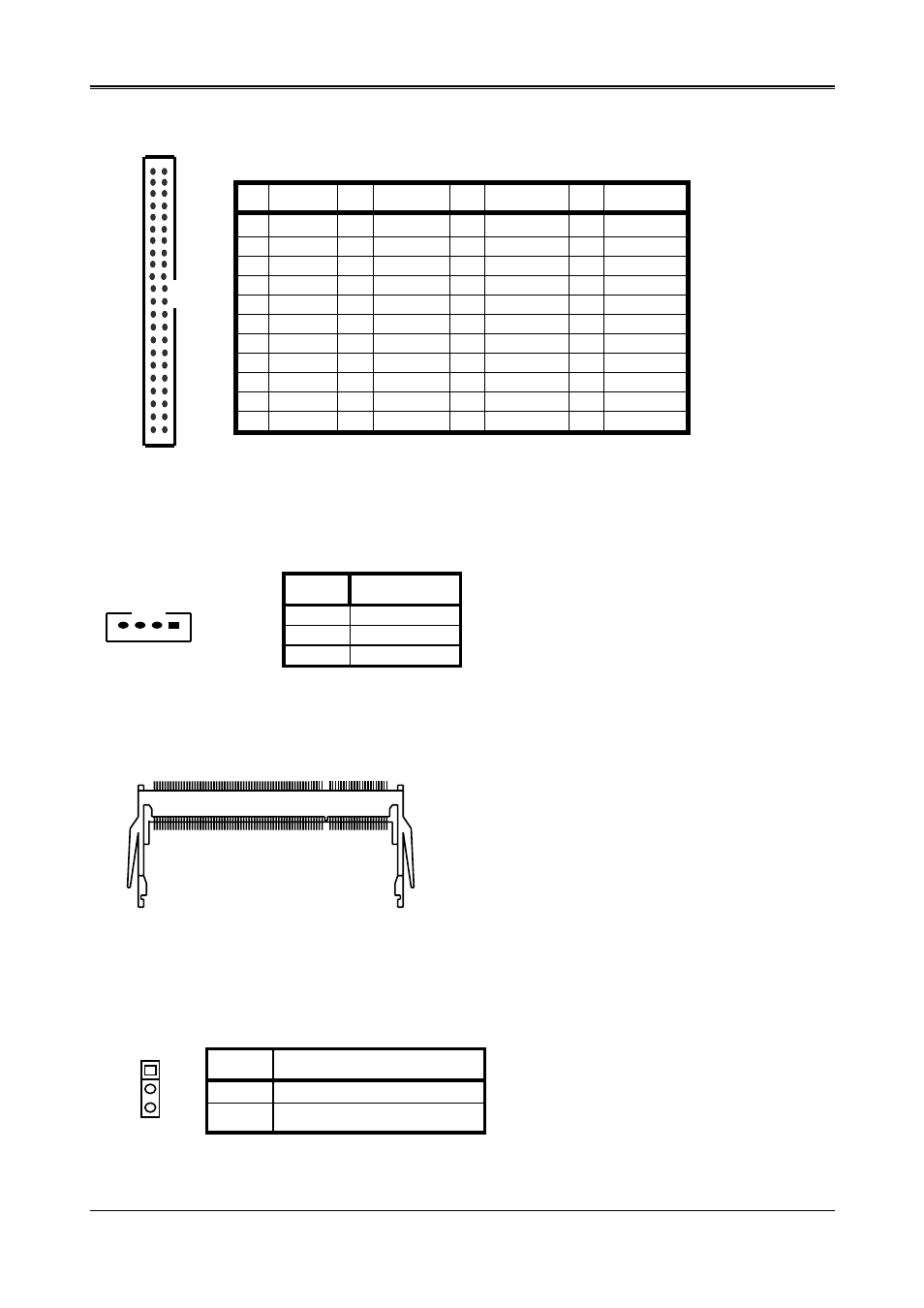

2.2.12 IDE1
2.2.13 CN2（Power）
2.2.14 J1（DDR-SODIMM）
2.2.15 J3（V-BAT & CMOS Clear）
PIN DEFINE PIN DEFINE PIN DEFINE PIN DEFINE
1 RESET# 2 GND 23 IOW# 24 GND
3 DATA7 4 DATA8 25 IOR# 26 GND
5 DATA6 6 DATA9 27 NC 28 BALE
7 DATA5 8 DATA10 29 NC 30 GND
9 DATA4 10 DATA11 31 INTERRUPT 32 IOCS16#
11 DATA3 12 DATA12 33 SA1 34 NC
13 DATA2 14 DATA13 35 SA0 36 SA2
15 DATA1 16 DATA14 37 CS0# 38 CS1#
17 DATA0 18 DATA15 39 ACTIVE# 40 GND
19 GND 20 NC 41 5V LOGIC 42 +5V MOTOR
21 NC 22 GND 43 GND 44 TYPE
PIN DEFINE
1 12V
2-3 GND
4 5V
PIN DEFINE
1-2 Supply power for V-BAT
2-3 Clear CMOS
43
1 44
2
4 1
1
3
