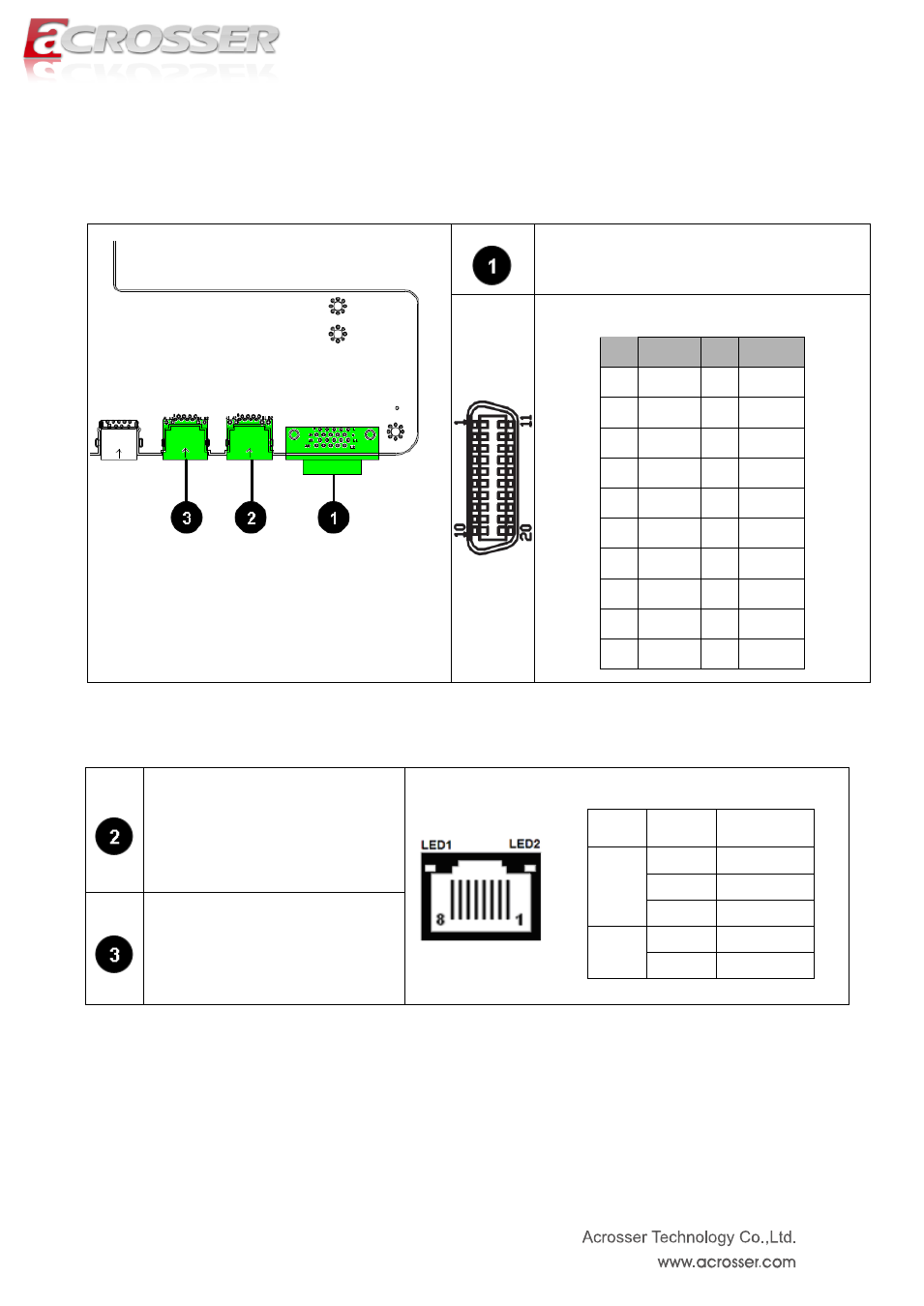

4.2. Locations of IO ports & Jumper settings definition
4.2.1. COMBO and LAN Connector
COMBO1
PIN SIGNAL PIN SIGNAL
1 USB+ 11 DDCCL
2 USB- 12 NC
3 GND 13 GND
4 VCC5 14 Audo_R
5 GND 15 GND
6 RED 16 NC
7 Green 17 Audo_L
8 Blue 18 NC
9 HSYNC 19 NC
10 VSYNC 20 DDCDA
LAN2 RJ45 LAN Connector
LED ON/OFF Status
LED1
OFF 10Mbps
Green 100Mbps
Orange 1000Mbps
LED2
Yellow Link/Active
OFF LAN OFF
LAN1 RJ45 LAN Connector
