Connecting a Digital Flat-panel monitor
Note: The Wildcat II 5110 features support for one digital flat-panel monitor via a DVI-I connector (with
DVI-D functionality).
1. Make sure the power to the computer is turned off.
2. Connect the workstation monitor’s video cable to the DVI-I connector
on the Wildcat II 5110
video card.
3. Turn on power to the workstation. If the monitor’s Power On LED does not illuminate or the
monitor does not display the startup sequence, consult Chapter 4, Troubleshooting.
^нн~ЕЬбеЦ=~=píÉêÉç=aÉîáÅÉ ^нн~ЕЬбеЦ=~=píÉêÉç=aÉîáÅÉ ^нн~ЕЬбеЦ=~=píÉêÉç=aÉîáÅÉ ^нн~ЕЬбеЦ=~=píÉêÉç=aÉîáÅÉ====
Power off your system and connect the stereo hardware to the round, stereo connector on the card. See the
documentation that came with your stereo hardware for information on how to use stereoscopic display.
Plug in and start up your system, including peripherals, and log on to your operating system.
Note: To configure the display settings for stereo display, see Chapter 3, Using the Video Card for step-
by-step instructions.
fåëí~ддбеЦ=нЬЙ=aêáîÉê=pçÑíï~êÉ fåëí~ддбеЦ=нЬЙ=aêáîÉê=pçÑíï~êÉ fåëí~ддбеЦ=нЬЙ=aêáîÉê=pçÑíï~êÉ fåëí~ддбеЦ=нЬЙ=aêáîÉê=pçÑíï~êÉ====
If you received your Wildcat II 5110 Graphics Accelerator with a system, the graphics drivers were
installed prior to shipment. This section only applies if you purchased your Wildcat II 5110 as an
upgrade, are reinstalling the driver, or are updating the operating system to Microsoft Windows 2000.
This section describes the two software installation processes for supported Windows operating systems.
Make sure your computer is ready
Make sure your workstation has the following before installing Wildcat II 5110 driver software:
· Microsoft Windows NT Workstation 4.0 operating system with Service Pack 5 (or later) or Microsoft
Windows 2000 operating system software installed
· 3 MB of free space on the computer’s primary system disk
Important: You must have the correct driver for the Windows NT 4.0 or Windows 2000
operating system. If you are unsure, refer to the
README . TXT file located on the driver delivery
media for this information. Refer to the Microsoft Windows NT 4.0 or Windows 2000
documentation and online Help for more information on installing drivers and software
application programs. If you are removing and reinstalling the Wildcat II 5110 driver, see
Chapter 4 Reinstalling the Video Driver.

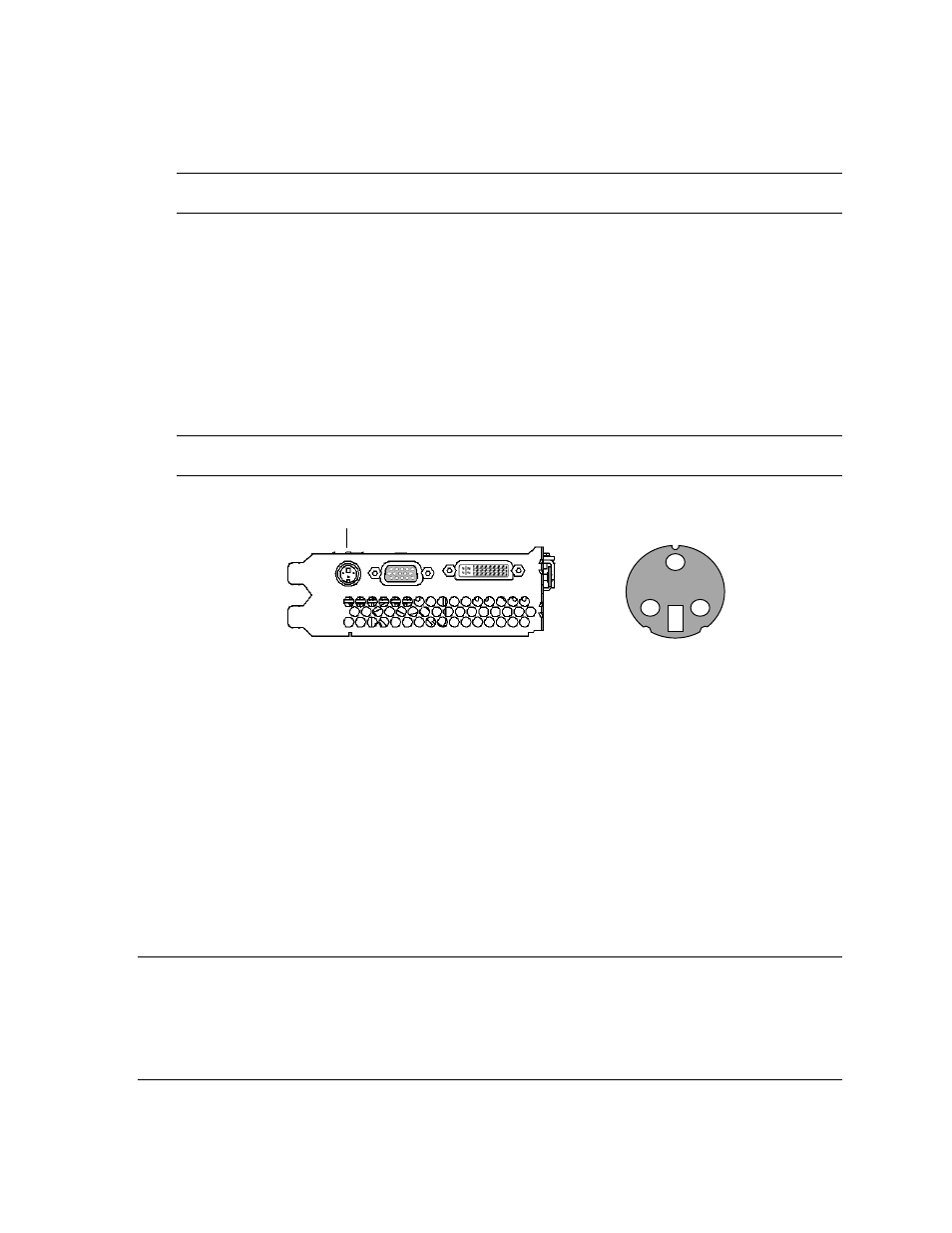

3-Pin
Minidin
Stereo
Connector
Stereo connector
