Microswitch connection
Data sheet
Voltage supply: 12 V direct current,
Undervoltage fuse to be provided for on the vehicle.
Current consumption: 1.5 A whilst the pump is running
Pump running time: max. 60-70 sec. (depending on cassette content
and length of pipes laid)
Total cassette content: approx. 25 litres
Of this cassette content,
excrements: approx. 14 litres
Chemical additives: not required
Toilet paper: use with a max. of 2 layers
Changing the filter: depending on frequency used, at the latest every
3 years.

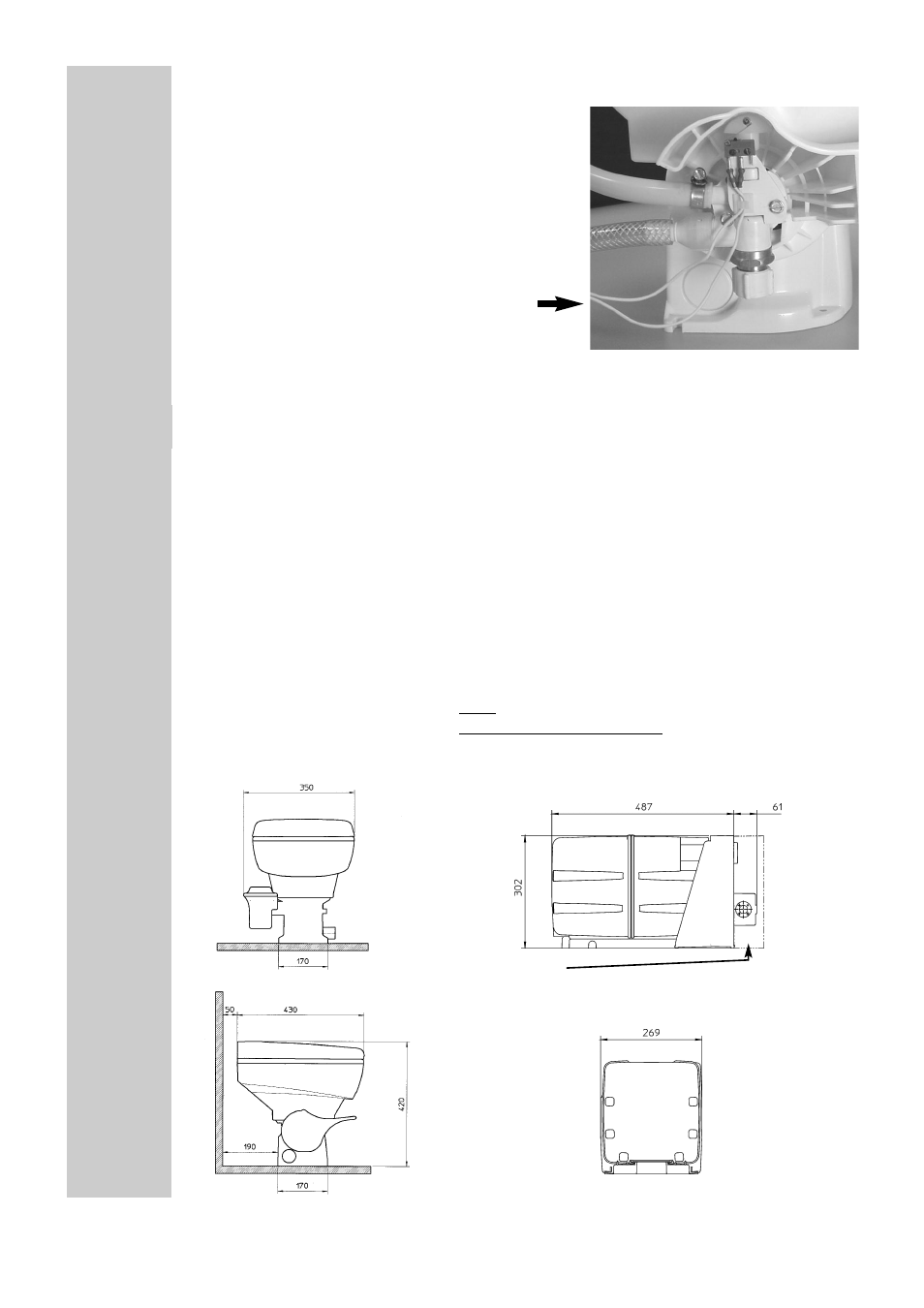

Dimensions: toilet 420 x 350 x 430
(H x W x D in mm) base station with container 302 x 269 x 548
6.8
14
6.7.2
For vehicles that are not equipped with a pressu-
rized water system, a toilet with integrated
microswitch for controlling a pump must be
installed.
The microswitch (A) is connected in the circuit of
the submergible pump so that the pump is activa-
ted via the microswitch when the pedal is pres-
sed.
Connection cable to the
pump with two wires
A
This connection is not necessary in vehicles with a pressure controlled pump.
area for siphon and pipes depending on built-
in-situation (ch. “6.5”)
