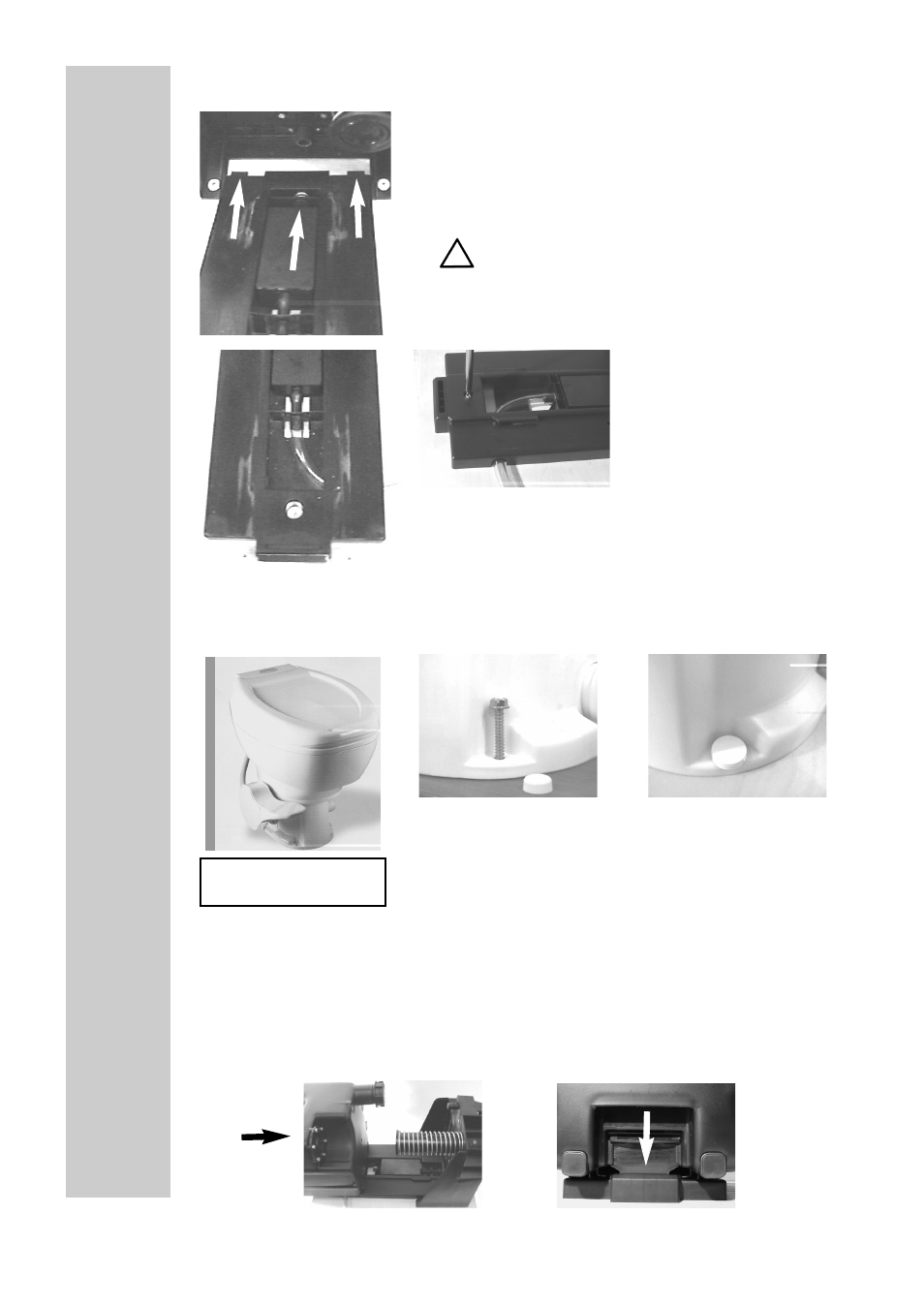

Fixation of the floor plate of the base station
Fixation of the toilet
Inserting the cassette
11
6.2
1. The floor plate of the base station is fixed to the rear
wall.
The floor has two lugs (A), that have to be pushed
into the respective gaps in the rear wall of the base
station.
Make sure that the connection (B) for the carbon
filter fits into the place provided!
2. The floor plate of the base station is screwed to the
floor of the vehicle.
3. The ventilation hose (C) is conducted through the
vehicle floor to the exterior.
1. The toilet must be installed horizontally. .
2. Use the screws included in the delivery for fastening it
to the floor of the vehicle.
3. The screws are then covered with the four caps.
The floor and the cassette are in dovetail design.
The cassette can easily be pushed into this opening until the lock in the groove (D) not-
ches.
6.3
6.4
Distance to the rear
wall : min. 50 mm
A A
B
C
D
C
