Water supply
Electrical installation
Electrical installation must be carried
out by qualified personnel only !

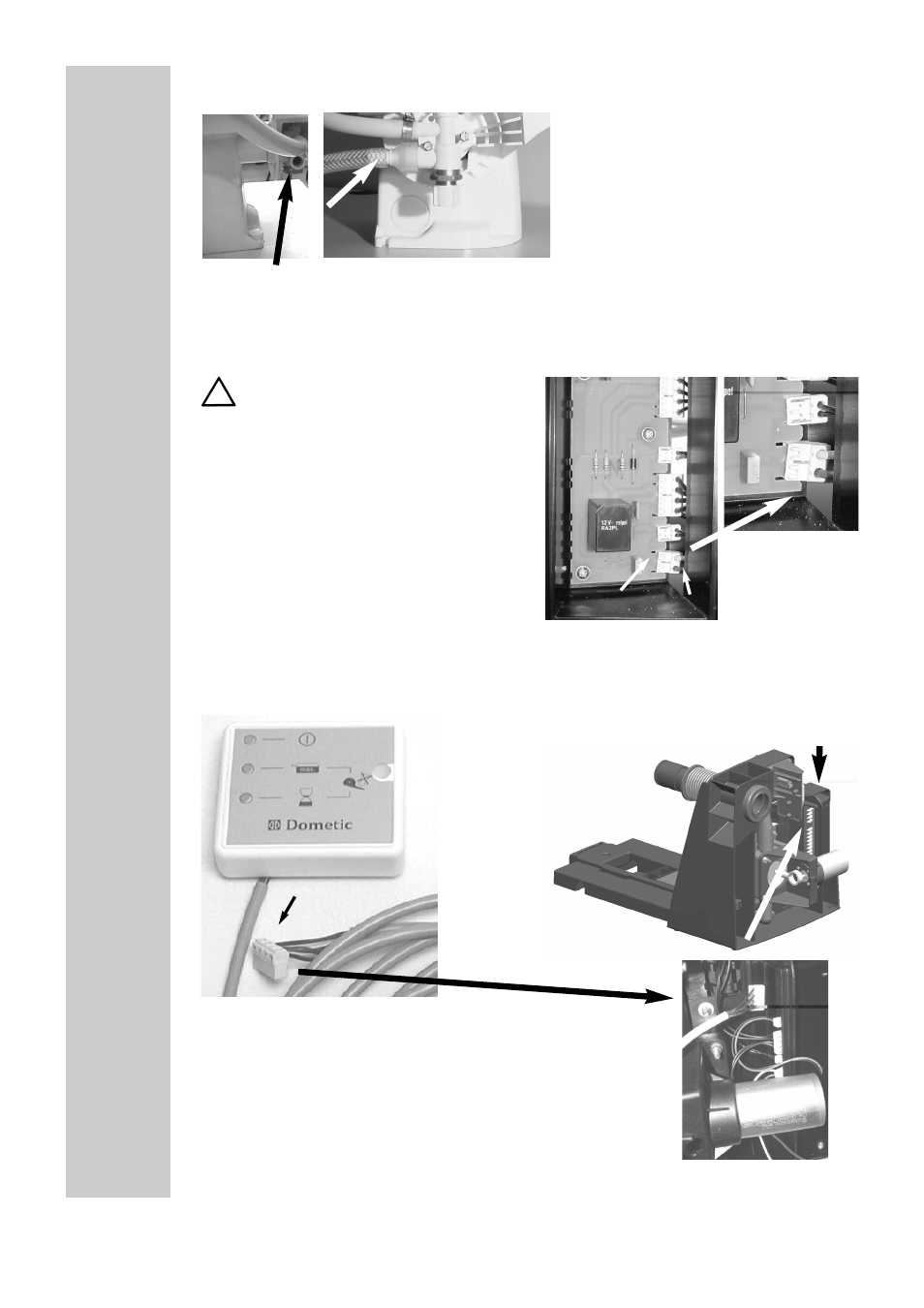

The 12V DC connection to the toilet electro-
nics is shown in the adjacent figure.
The 2-pole connection cable is connected to
the electronics as shown in the figure.
The connection cable must have a cross-
section of at least 4 mm².
The connection cable must be protected by
an 8 amp fuse. The connection should be
made directly to the board battery.
The board battery should be protected by an
undervoltage cut-out.
.
Connection display on the control electronics
6.6
The water supply is provided with
the aid of a pump (this can also be
the pump available in the vehicle)
and a hose connection from the
fresh-water container.
Fasten a hose clamp to the water-supply connection.
6.7
red
(+12V)
white
(ground)
6.7.1
13
display panel
4-strand, coded connection cable
electronic board
electronic board
The 4-strand, coded connection cable (A)
(cable cross-section 1 mm²) is connected to
the circuit board as shown in the figures.
A
A
base station
