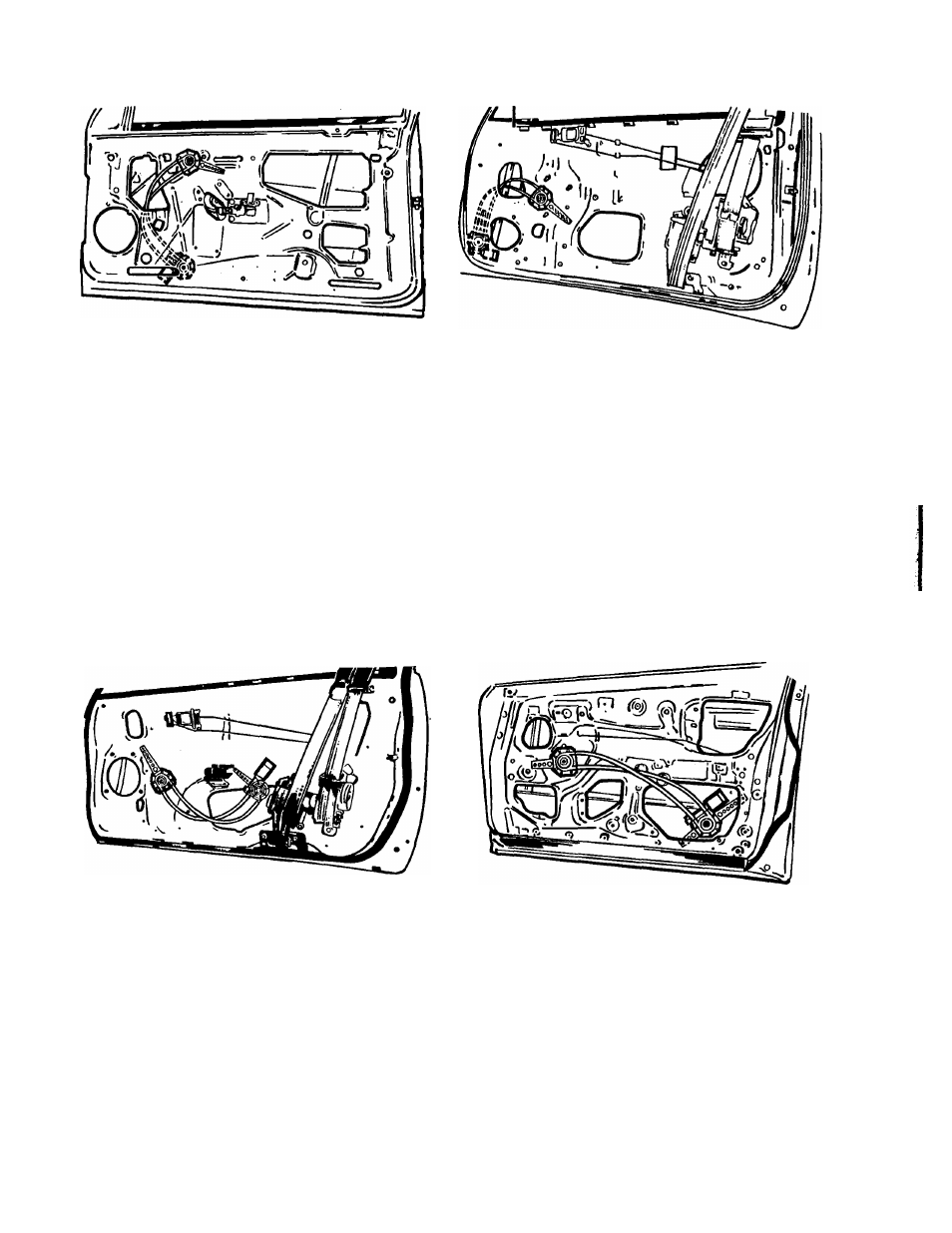

FORD TEMPO front right

— adjust bracket on transmission
— rotate geared motor 180° on transmission

— insert gear H 15 (insert from red marked side)

— adaptor No. 12

— apply paddings to geared motor

— turn transmission side of geared motor towards inside of car
— affix geared motor with bracket shortened 2.2”

— grommet No. 1

— cap No. 1

HONDA ACCORD front right

— adjust bracket on transmission

— insert gear H 15 (insert from red marked side)

— adaptor No. 9

— apply paddings to geared motor

— turn transmission side of geared motor towards inside of car

— affix geared motor with plastic fastener '
— grommet No. 1

— cap No. 2

Bend door panel in area where cables cross. Affix cables to
door panel with plastic fastener.

Care should be taken to not damage the geared motor with
door stopper

HONDA CIVIC CRX front right

— adjust bracket on transmission
— rotate geared motor 90° on transmission

— insert gear H 15 (insert from red marked side)

— adaptor No. 9

— apply paddings to grill of geared motor
— turn transmission side of geared motor towards inside of car

— affix geared motor with bracket (affix support arm screw)
— grommet No. 1

— cap No. 1

MAZDA 626 4 Doors (U.S.) mod. ’89 front right

— adjust bracket on transmission shortened 1"
— rotate geared motor 90° on transmission

— insert gear H 15 (insert from red marked side)
— adaptor No. 10

— turn transmission side of geared motor towards inside of car

— affix geared motor with two brackets after having shortened

one off 1”

— grommet No. 1
— cap No. 1
