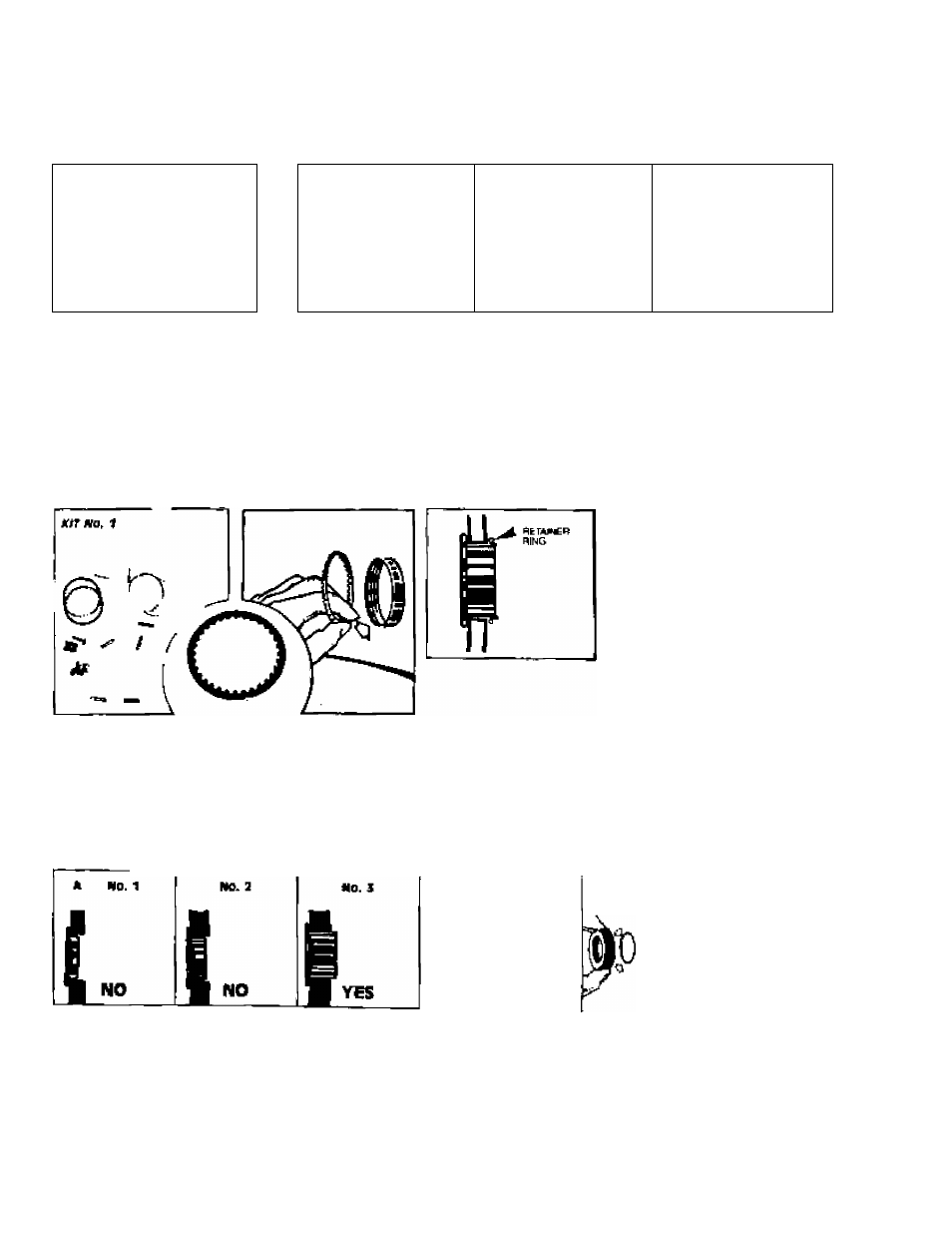

FIX GROMMET WITH RETAINER RING
|g
Mo, 1
No. 3
NO. 3
No. 1
Smalt,
No.
2 Medium
No, 3
Larg
The grommet cap locks to panel by means of a
retainer ring
The grommet has to come through the door casing at least 5/32 in order to be locked
with the retainer ring.
To choose the proper grommet cap. follow this procedure:
— Insert grommet cap no. 1 (SMALL) into the panel, if it does not come through, try
no P (MEDIUM) and then, if necessary, no. 3 (LARGE)
’
10 MAJC
5/32"
Na. 1
NO. 1
NO 1
V»!
A)
No. 1 SMALL (wrong; too short).
No. 2 MEDIUM (wrong: too short)
No. 3 LARGE (yes),
B) if the door casing is less tham 5/32" thick a perfect tit between cap and grommet can
be obtained by inserting a sponge from the rear of the door casing.
