Connection technology

Water supply, water dranage, and power supply connections must always be

planned from the side of the dishwasher. There is no room for them behind the
machine.

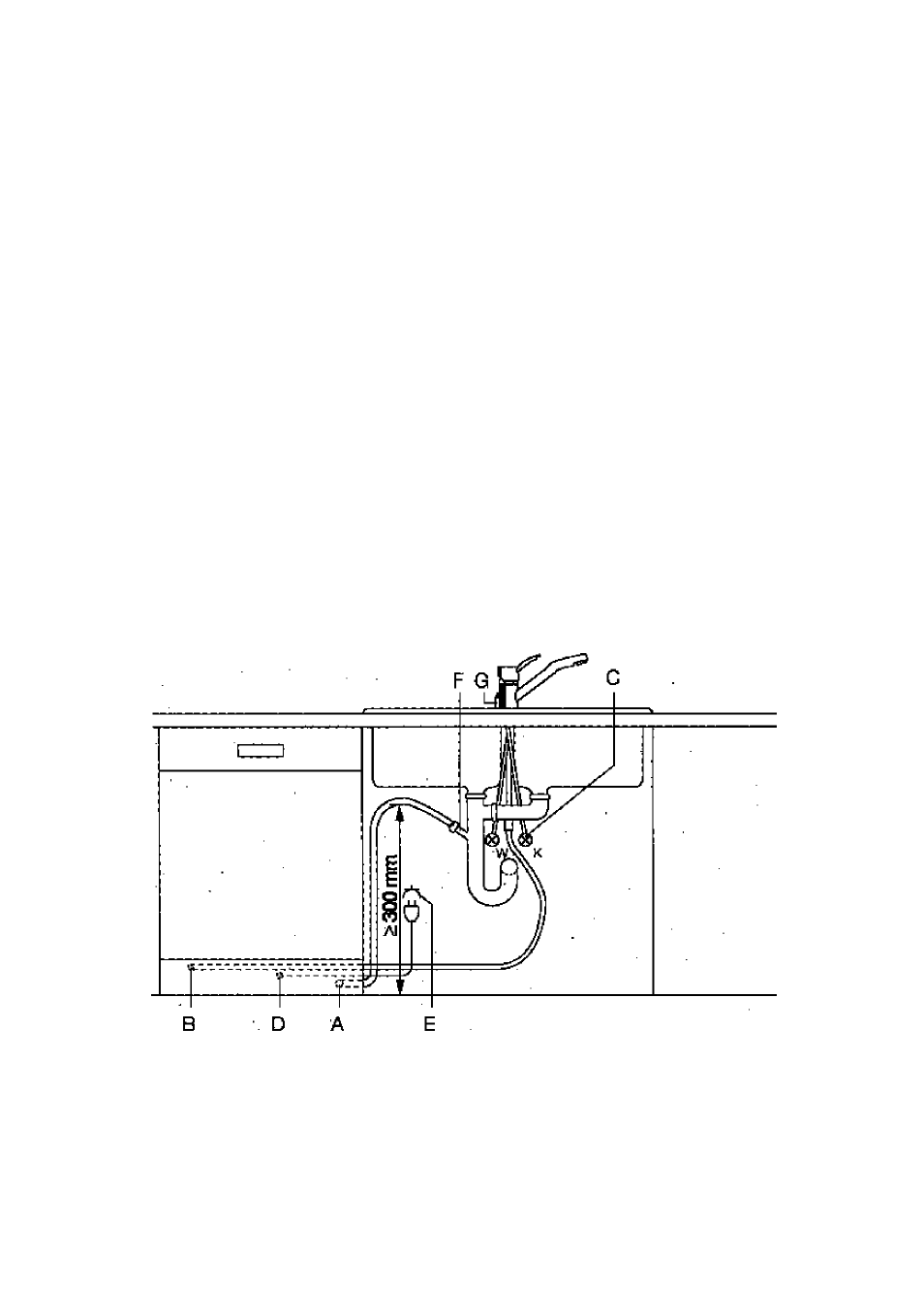

The following illustrations give typical examples of how the sanitary and electri

cal installation can be performed under different circumstances.-

These examples can only be recommendations, since the definitive factors are
the circumstances at the installation site, existing connections, and any local

connection specifications or regulations of the power supply or water compa
nies.

A Water drainage

В Water supply

C Shutoff valve (UP)
Cl Two-way valve

D Electrical supply line
E Electrical connection
F 45“orstraightunionof 19 mm o.d. and 30 mm length
Fi 2 45“ or straight unions of 19 mm o.d. and 30 mm length
G Shutoff valve, e.g. integrated in fitting

Fig. 26

AT 1(11
