Introduction
The hood is supplied as an extractor unit and can also be used
with a filtering function by fitting activated carbon filters (special
accessory).

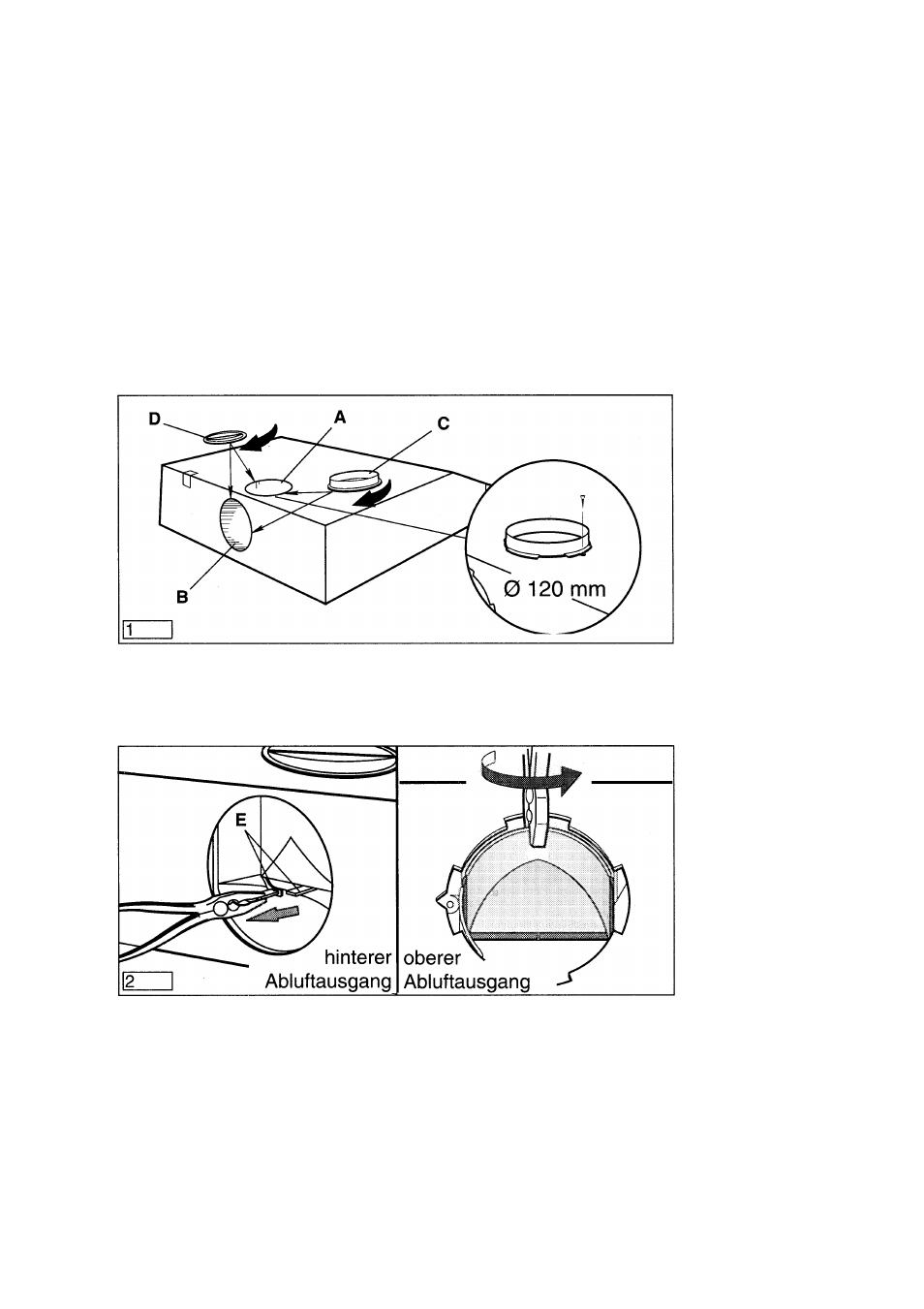

The unit features two outlet holes, one of which A is located on the
top of the unit while the other B is located on the rear.
To connect up the hose, you should first fit the bayonet-mounting
flange C on the outlet required (if using the top outlet, fix the flange
in place using the screw supplied as shown in Fig, 1.
Close off the unused hole using the bayonet-fitting caps D.
If using the rear hole, open the air passage by removing the
partition (E — Fig. 2)
Move the lever F to position A — Fig. 3.
When connecting up the hood using a telescopic wall pipe,
you should preferably using the uninflammable outlet hose
No. E 610 899 007 (120 mm 0) from our range of special
accessories.
Extractor
version
23
