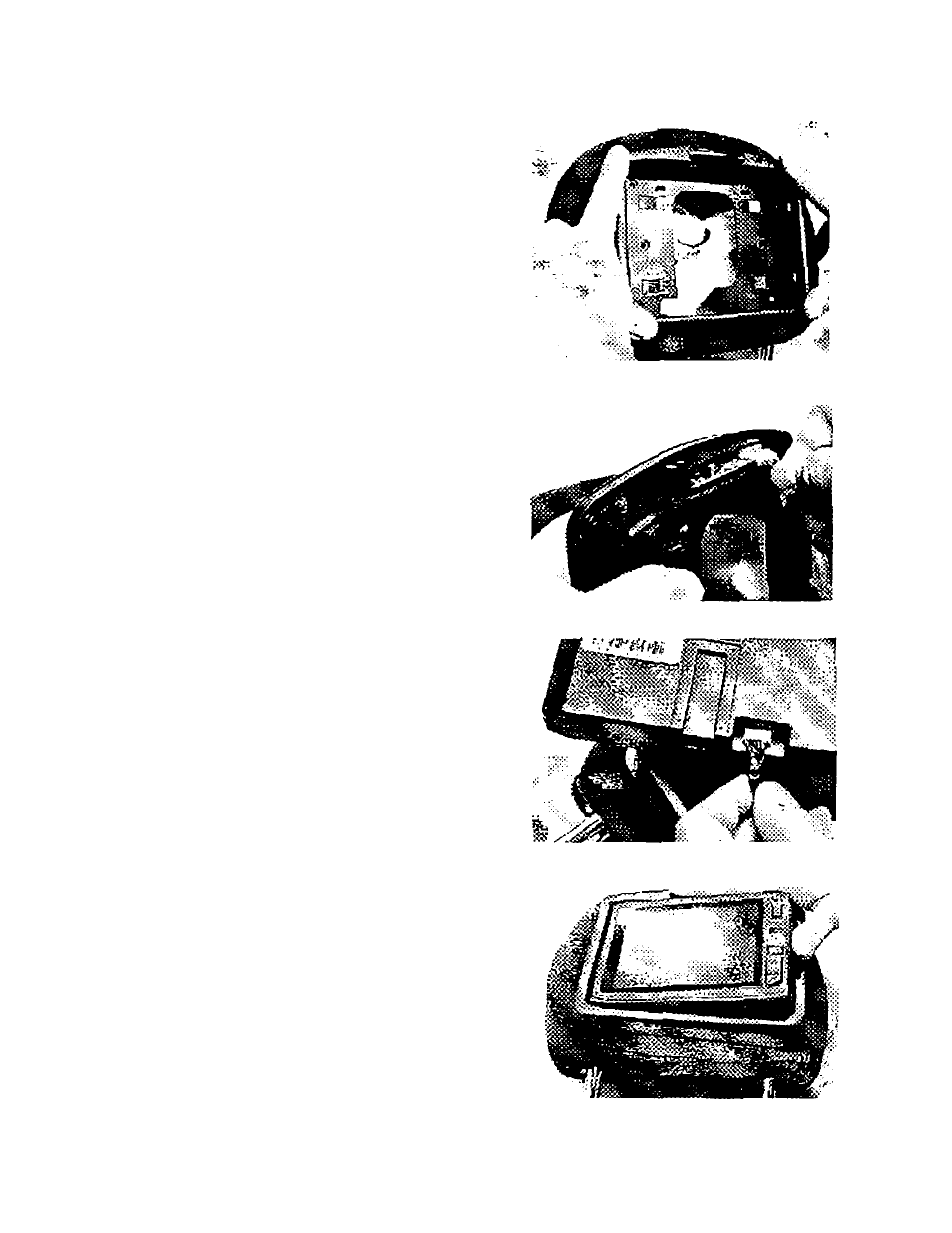

Lay the flaps of headrest material down into the
recess and Insert the clamshell Into the recess.
Check for fit. If It does not fit properly, you may
need to remove some more foam.

NOTE: The clamshell will need to be secured

to the headrest, either by using tie straps,

screws, ect..

Remove the clamshell and insert the IR trans-
miller and plug into the IR transmitter board.

Reinsert the clamshell into the recess and

secure using lie wraps or saews

plug the remaining connector into the monitor.

Turn the monitor around and insert It into the

ciamshetl housing. Snap into place.

Conned the wiring to the video system and
test.
