VEHICLE PREPARATION:
1) Locate an accessory power source (+12VDC present when the Ignition Key is in the accessory and
run positions. OVDC should be present, when the ignition key is in the OFF position). Generally, these
wires can be found at the ignition switch or fusebox. (NOTE: Ensure that the accessory power is
fused at the source. Failure to do so may result in vehicle wiring damage.) Ground the black wire \o
a chassis ground dose to the mounting location of AV sources.
The mounting method, and the location will vary from vehicle to vehicle, so this manual will only focus
for the installation of the LCM5620PKG Master and Slave Monitors in the supplied configuration.
The best location for the LCM5620PKG System components is:
a) Monilors: Headrest
b) Optional FM Modulator Near the car radio with the ON/OFF switch mounted on the dashboard
near the driver
c) System Main Cable: Under either seat where monilors are foccated.
2 )
3)
Tools and Materials Required.
• Utility knife or box cuUer with sharp Wad*
• Sharpie'*^ marker or similar
• Tie Wraps

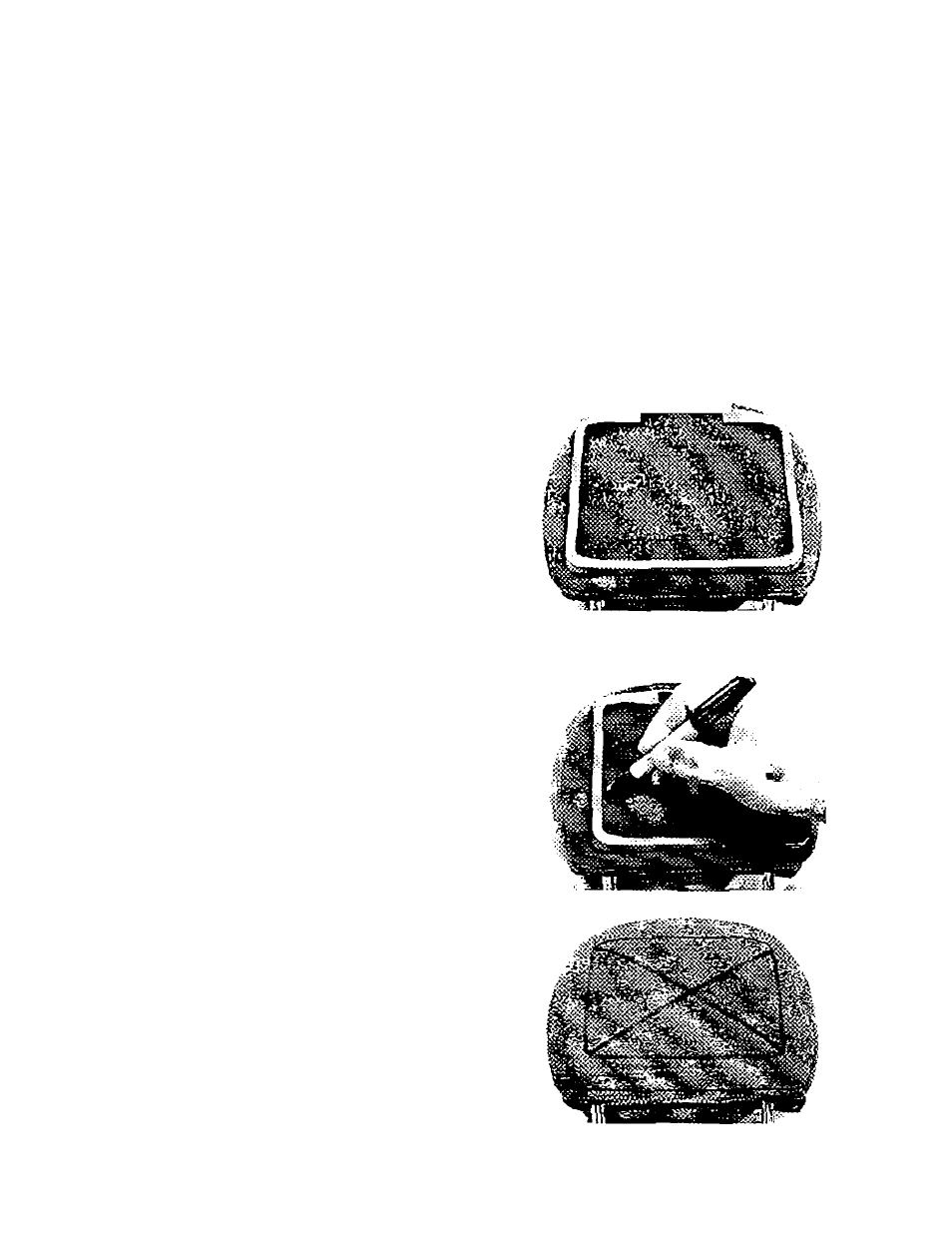

Remove the headrest from the vehicle for
easiest installation
Lay headrest on a flat surface
Center Iriiii collar on headrest as shown.
NOTE: Depending on the angle of the
headrest the trim ring and housing may be
mounted upside down.
Using a Sharpie"^ marker or similar marking
pen. marV; headrest material along tne
interior of the trim collar.
Remove the trim collar and mark an “X" from
corner to comer as shown
-3-
