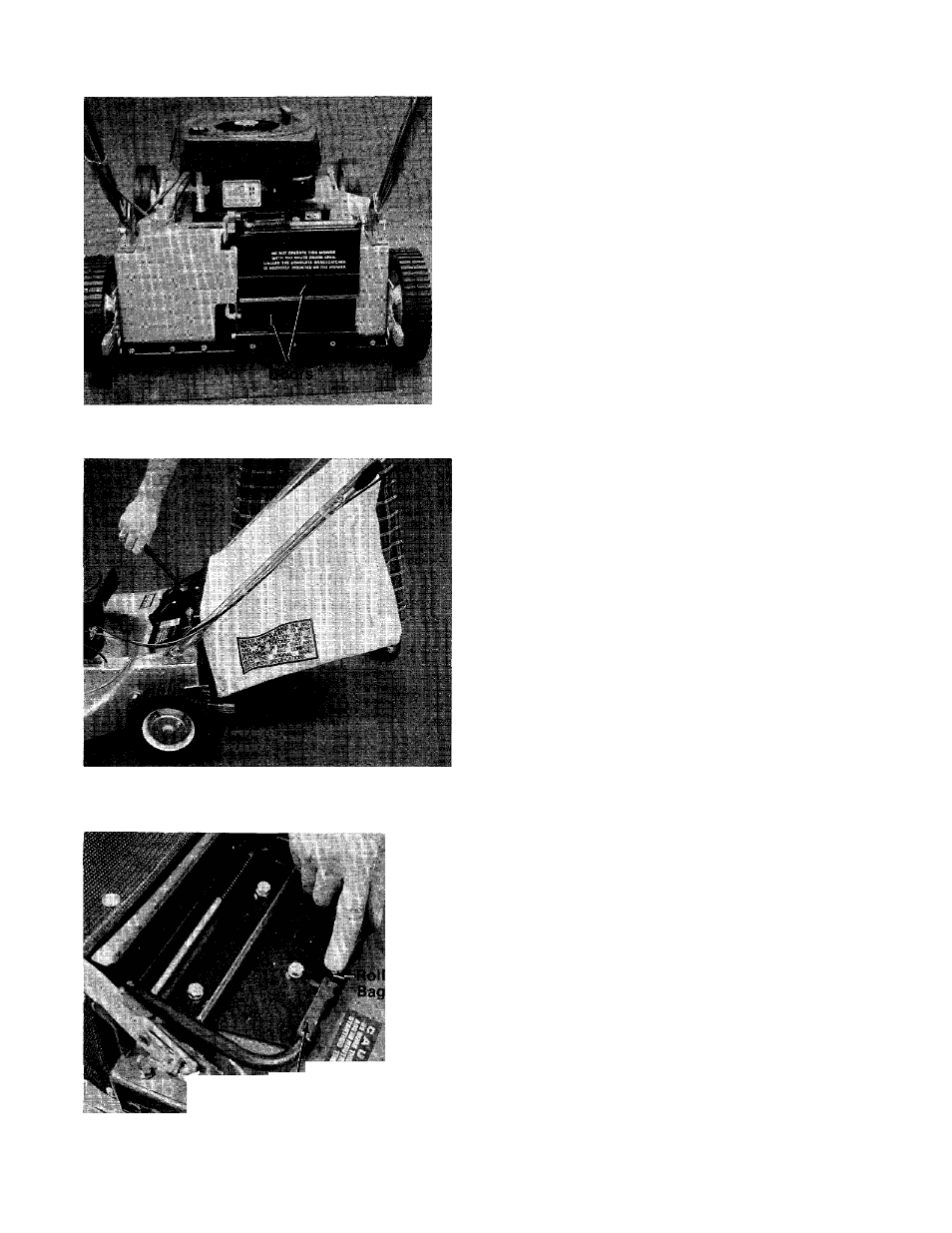

FIGURE 9.

To Attach Bag To Mower

The doors shown in figure 9 cannot be opened to
discharge the grass unless the grass catcher is in

-place.

^ WARNING I

Under no circumstances shouid the

doors be opened while the engine is
operating uniess the grass catcher

is securely in place.

1. Attach the grass catcher frame to the front of

—the adapter as shown in figure 10.

FIGURE 10.

■ Acjapter Plate

■ Mower

Tilt bag slightly forward and slide roll pin on

■bag frame into slot on mower. See figure 11.

Push down on bag to position on mower.

FIGURE 11.
