Page 6

Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

(D)

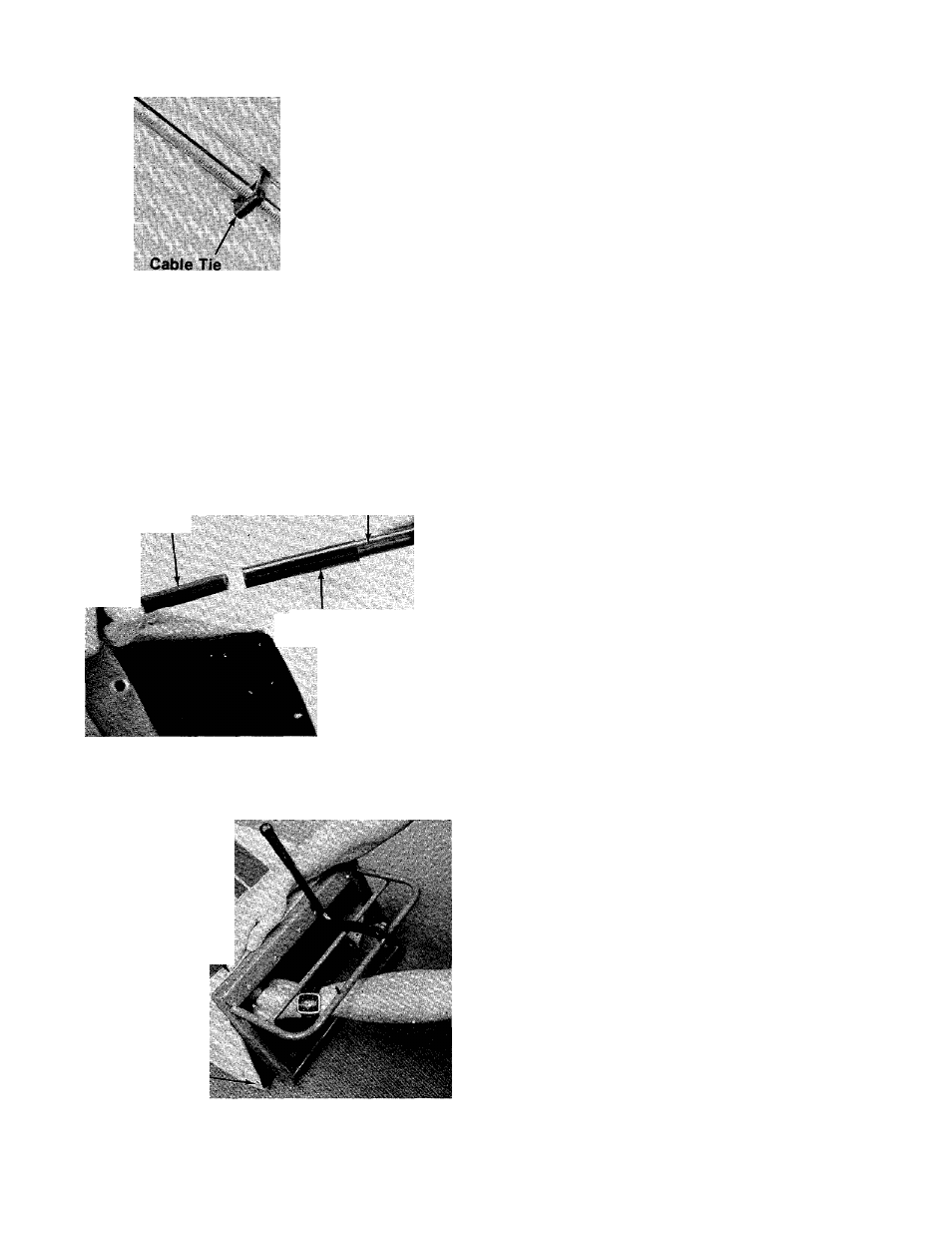

5. Secure throttle control cable and blade

brake/clutch cable to handle with cable ties

— (D) provided. See figure 5.

6. Check all nuts and bolts for correct tightness.

FIGURES.

Grass Catcher Assembly

Rear

Frame

Front

Frame

Tubing

Connector (I)

1. Join the front and rear frames by pushing the

— ends of the rear frame into the ends of the tub

ing connectors (I). See figure 6.

FIGURE 6.

Start L

Lock Was .

■

and Hex Nu

Leave Bottom

Side Bolts Out

insert frame into bag (printing on bag is the
top of the bag). Fasten edges (with eyelets) to
front frame with 3/8" bolts (E), lock washers

(F) and hex nuts (G). Finger tighten. See figure
7. Hint: For easier assembly, Do not fasten

lower bolts on sides until after step 3.

FIGURE 7.
