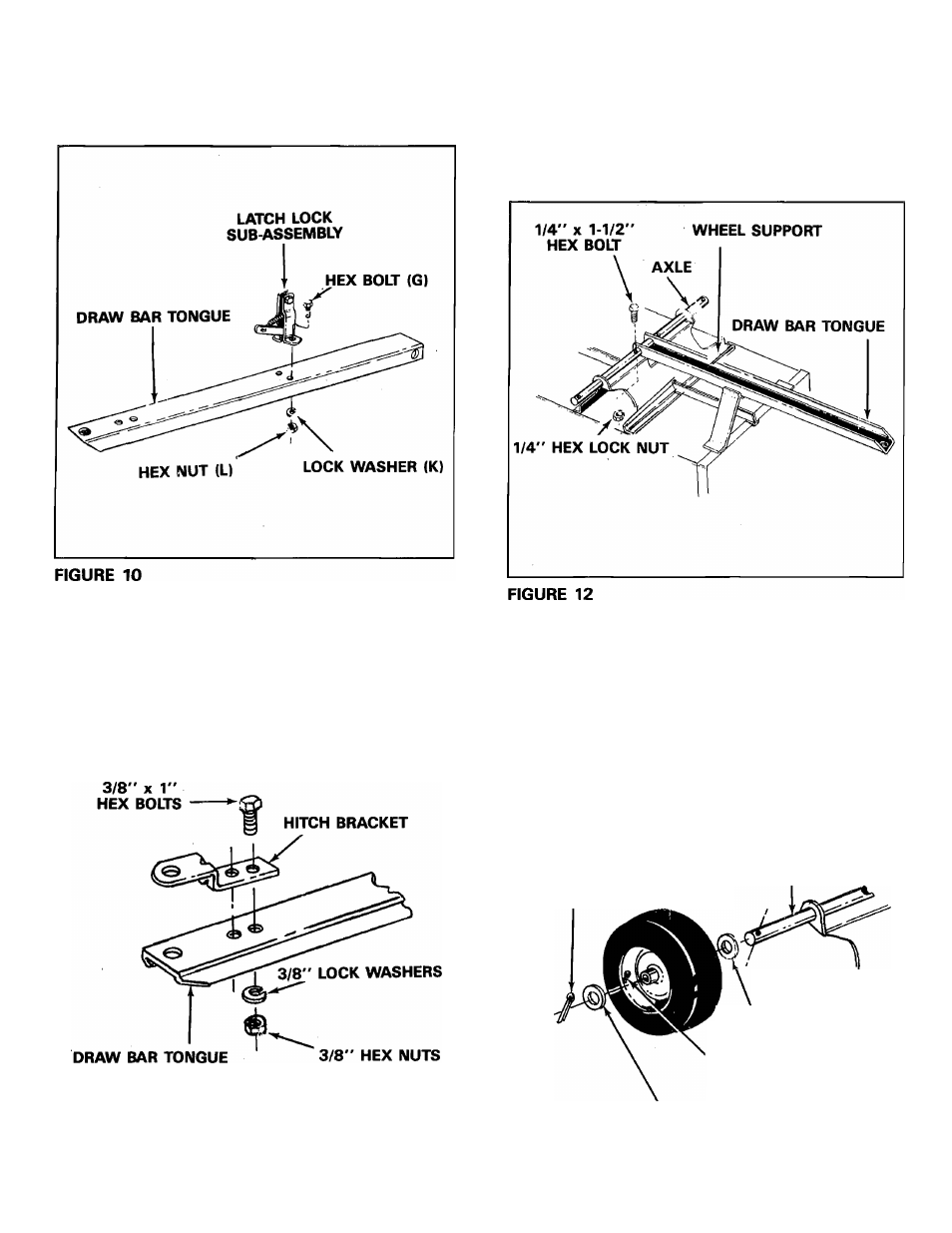

16. Assemble latch lock subassembly to drawbar

tongue using 1/4" x 1/2" long hex bolt and 1/4"

hex lock nuts. See figure 10.

17. Assemble hitch bracket to drawbar tongue using

3/8"

1" long hex bolts, 3/8" lock washers

and 3/8" hex nuts. See figure 11.

18. Assemble axle and draw bar tongue to wheel

support keeping open side of tongue facing up,
make sure that latch lock snaps over latch stand.
Secure axle to wheel support or axle brackets,
using 1/4" X 1-1/2" long hex bolts and 1/4" hex
lock nuts. See figure 12.

NOTE

Position valve stem to outside when
installing wheels on axle. See figure

13.

COTTER PIN

WHEEL

AXLE

1.59 OD

FLAT WASHER

VALVE STEM:

(outside)

1.59 OD

FLAT WASHER

FIGURE 11

FIGURE 13
