Page 3
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

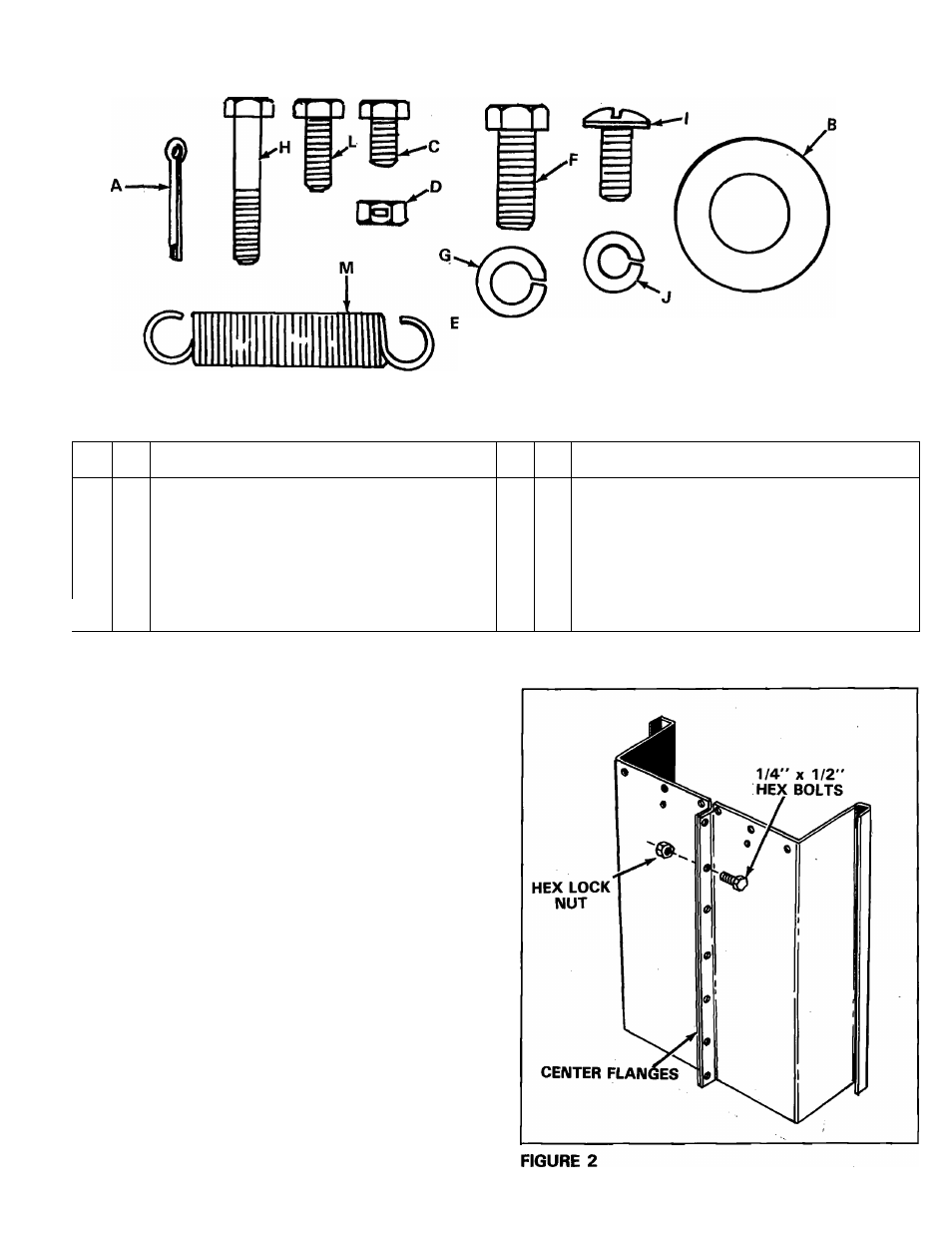

FIGURE 1 (FULL SIZE HARDWARE CHART)
KEY QTY
DESCRIPTION
KEY QTY
DESCRIPTION
A
2
Cotter Pin 1/8"
X
1-1/4" Long
H
2
Hex Head Bolt 1/4-20 x 1-1/2" Long
B
4
Washer 1.59 OD x .78 ID
1
14
Slotted Truss Hd Bolt 5/16-18 x 3/4"
C
34
Hex Head Bolt 1/4-20 x 1/2" Long
Long
D
37
Hex Lock Nut 1/4-20 Thread
J
14
Lock Washer 5/16"
E
2
Hex Nut 3/8-16 Thread
K
14
Hex Nut 5/16-18 Thread
F
2
Hex Head Bolt 3/8-16 x 1" Long
L
1
Hex Head Bolt 1/4-20 x 3/4" Long
)G
2
Lock Washer 3/8"
M
1
Extension Spring
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED FOR ASSEMBLY
(1) Screwdriver
(1)
Pliers
(2)
7/16" Open End or Box Wrenches
(2) 1/2" Open End or Box Wrenches
(2) 9/16" Open End or Box Wrenches
Remove the hardware pack and all loose parts
from the carton. Be sure carton is empty before
discarding.
Position cart body halves upright as shown
in figure 2.
