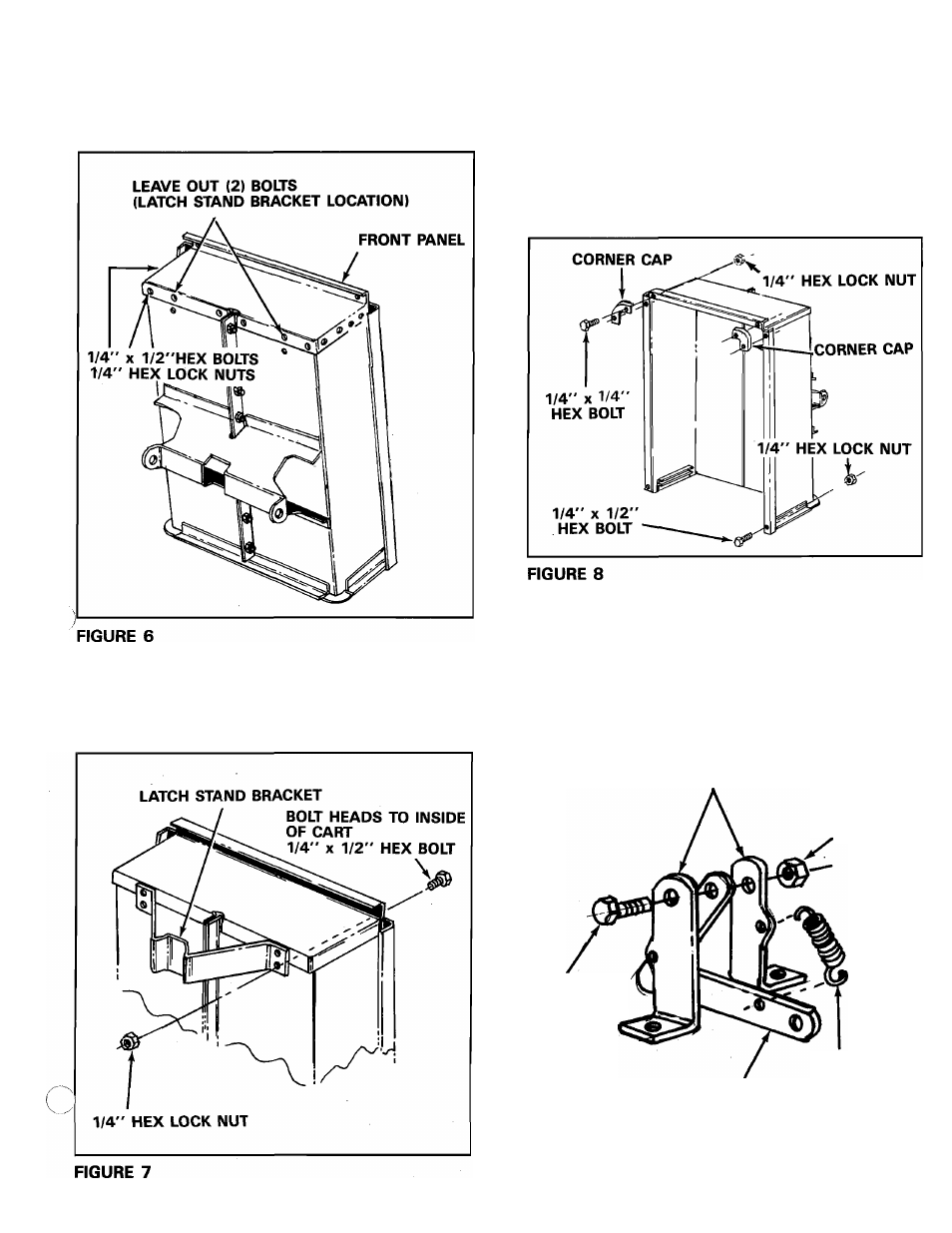

11. Assemble front panel to open end of cart body,
using 1/4”
X
1/2” hex bolts and 1/4” hex lock
nuts. Bolt heads to inside of cart. Leave out (2)
bolts for latch stand bracket. See figure 6.
12. Assemble latch stand bracket using four 1/4”
X 1/2” hex bolts and 1/4” hex lock nuts. See
figure 7.
13. Assemble two front top corner caps and two
bolts in top flanges through tailgate reinforce
ment bracket using 1/4” x 1/2” hex bolts and
1/4” hex lock nuts. See figure 8. Tighten all
bolts.
14. Tighten all bolts assembled in steps 4 through
13, lower cart assembly to rest on top flanges,
with axle support up. See figure 12 on page 6.
15. Assemble two latch mount brackets, latch lock
and extension spring using one 1/4” x 3/4” hex
bolt and 1/4” hex lock nut. See figure 9. Do not
tighen 1/4” lock nut, latch lock must pivot
freely.
LATCH MOUNT BRACKETS
1/4” HEX
LOCK NUT
1/4" x 3/4”
HEX BOLT
LATCH LOCK
EXTENSION
SPRING
FIGURE 9
