Page 32
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

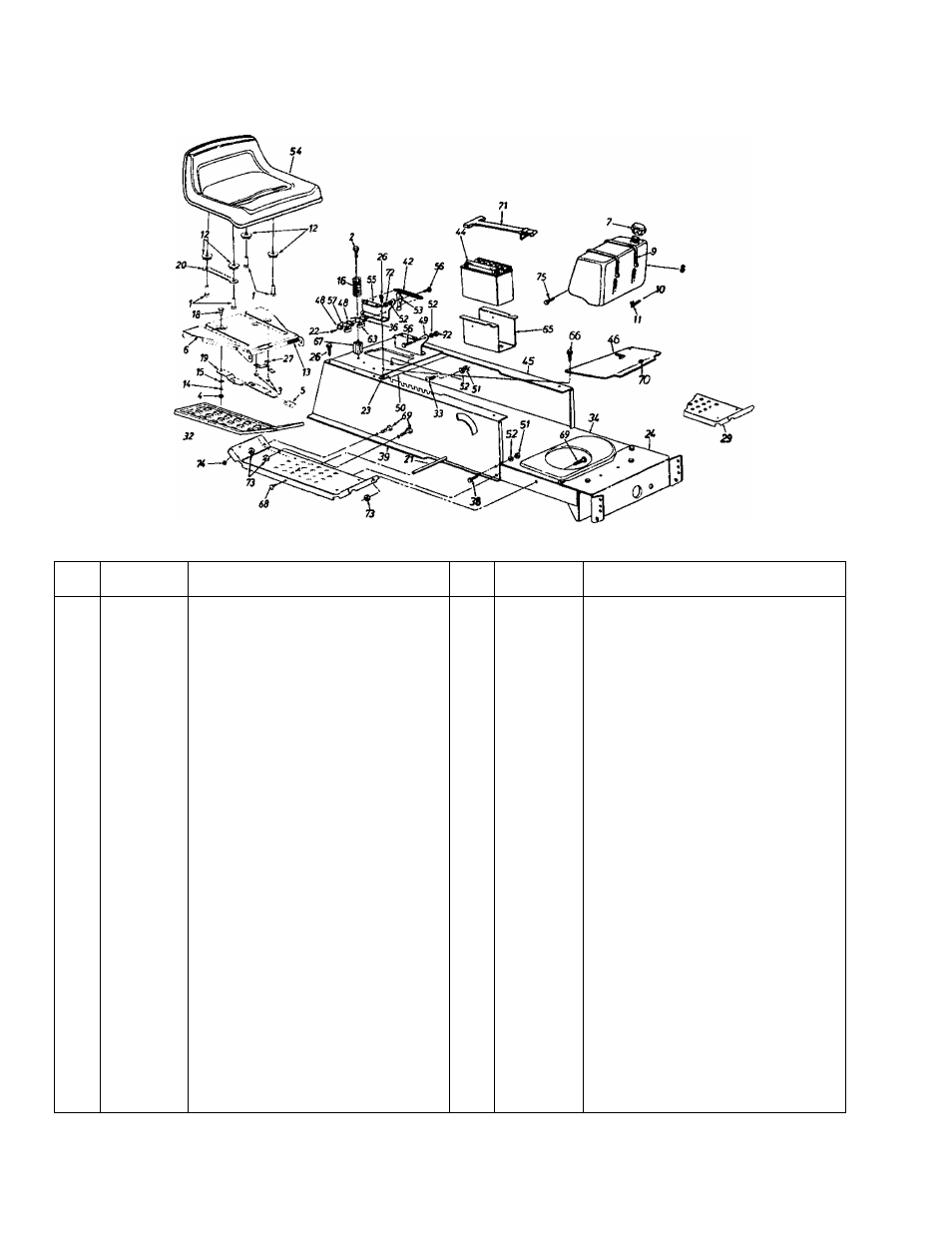

LT-185
Model 696
REF.
NO.
PART
NO.
DESCRIPTION
REF.
NO.
PART
NO.
DESCRIPTION
1
738-1007
Shoulder Screw 3/8-16 x .5
34
783-031OC
Lower Frame
2
710-1208
Hex Washer Tap Scr. 5/16-18 x 3.25” Lg.
36
726-0278
Insulator Boss Plate
3
710-1268
Hx Scr. B-Tap Wash. #10-16:.38 Lg.
38
710-3008
Hex Bolt 5/16-18
X.
75" Lg.*
4
712-3027
Lock Nut 1/4-20
39
783-0042A
Upper Frame—R.H.
5
720-0309A
Grip
42
732-0581B
Extension Spring 5.31" Lg.
6
783-0607A
Seat Pivot Bracket
44
725-1750
12-V Battery
7
751-0603
Fuel Cap
45
783-0043
Upper Frame—L.H.
8
751-0657
Fuel Tank
46
783-0133B
Shift Cover
749-0934
Fuel Tank Support Rod (Not Shown)
48
726*0279
Insulator Plate
9
726-0209
Tie Strap
49
17951
Seat Pivot Brkt. Support—L.H.
10
751-0535-15 Fuel Line
50
783-0355A
Hitch Plate
11
726-0205
Hose Clamp
51
712-3010
Hex Nut 5/16-18 Thd.*
12
731-1989
Seat Spacer
52
736-0119
L-Wash. 5/16" I.D.*
13
732-0499
Compression Spring
53
17239A
Seat Lift Brkt.
14
736-0175
Wash. Spring .265 x .562 x .025
54
757-0370A
Seat
15
736-0204
FI. Wash. .344 ID x .62 CD x .03
55
17950
Seat Pivot Brkt. Support—R.H.
16
732-0735
Compression Spring
56
738-0296
Shid. Bolt .437" Dia. x .268"
18
738-0137A
Shldr. Scr. .340 x .285 -1/4-20
57
725-1303
Spring Switch
19
783-0609
Seat Lever
63
725-1439
Safety Switch (Seat)
20
783-0753
Seat Selector
65
783-0345
Battery Tray
21
738-0526
Running Board Rod
66
710-0351
Truss Mach. B-Tap Scr. #10 x .5" Lg.
22
710-0227
Hex AB-Tap Scr. #8 x .50"
67
748-0347
Spring Spacer
23
726-0139
Speed Nut #10Z
68
710-0323
Pan Hd. Scr. 5/16-18
X.
75" Lg.
24
783-0041B
Front Pivot Brkt.
69
710-3008
Hex Bolt 5/16-18
X
.75" Lg.*
26
710-0726
Hex Washer AB-Tap Scr. 5/16 x .75" Lg.
70
731-0405
Snap Bushing
27
783-0611
Seat Stop
71
723-3064
Battery Retainer Strap
29
17770C
Running Board (R.H. & L.H.)
72
712-3010
Hex Nut 5/16-18 Thd. (Gr. 5)
32
731-0909
Rubber Foot Pad—L.H.
73
712-0265
Hex Sems Nut 5/16-18 Thd.
731-0910
Rubber Foot Pad—R.H.
74
712-0271
Hex Sems Nut 1/4-20 Thd.
33
710-0323
Truss Mach. Scr. 5/16-18 x .75" Lg.
75
710-1189
Hex Screw 12-24 x .62
32
