NOTES
1. PAO1 AND PAO2 ARE USED TO MEASURE PREAMPS.
2. RGN = 0 NOMINALLY; PREAMP GAIN = 5, RGN = OPEN; PREAMP GAIN = 10.
3. WHEN MEASURING BW WITH 500 SPECTRUM ANALYZER, USE 4500 IN SERIES.

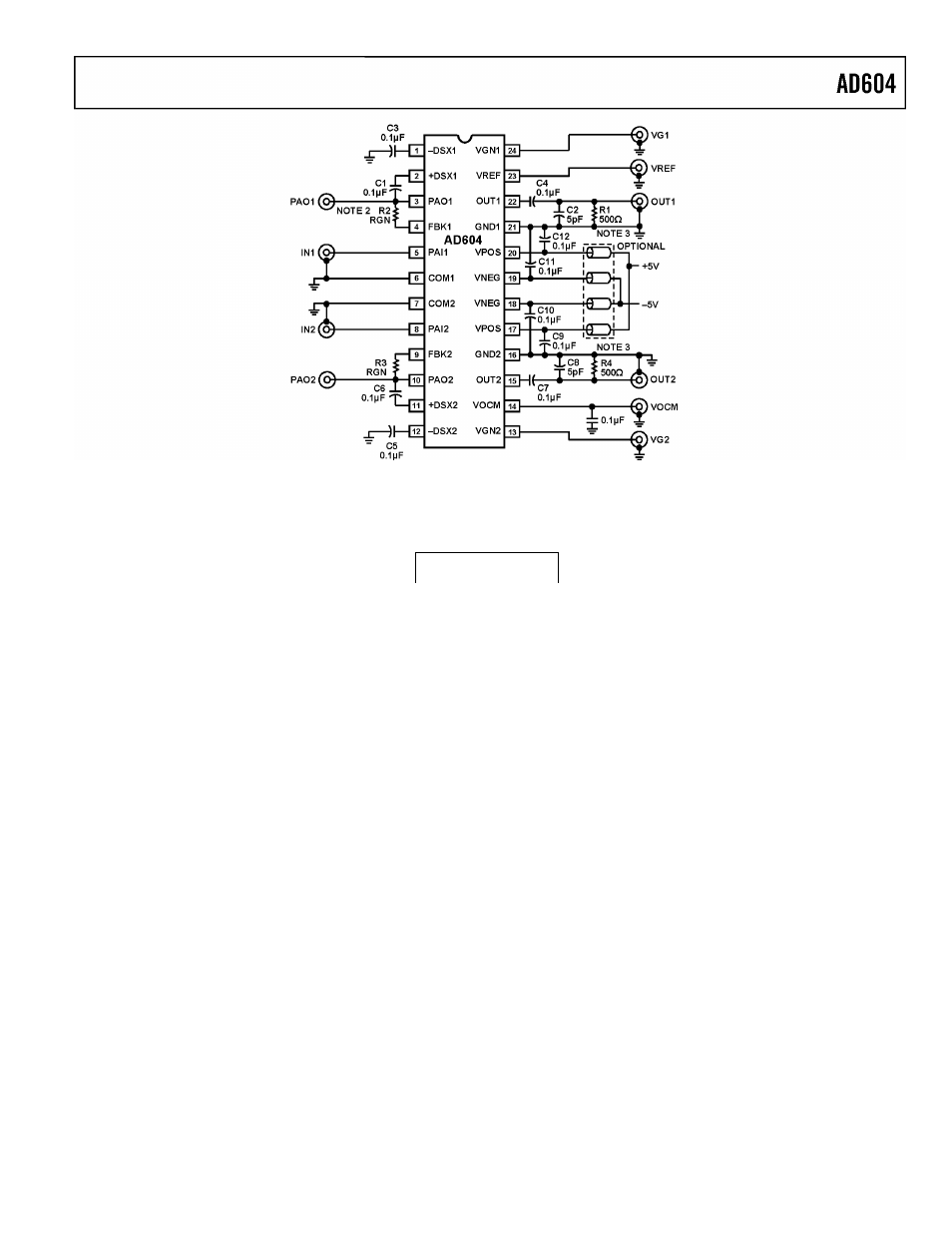

Figure 53. Basic Test Board
HP3577B
OUT
R
A
w w w . B D T 5 0 7 c $ ) 0 m / A D I
Figure 54. Setup for Gain Measurements
Rev. E | Page 23 of 32
P A I
49.90
